MECOF MASTERMILL HPC 3 CNC 2014
- Condition: used
- published: 29/10/2026
- 26IND49780
Technical data
- Condition: used
- Year: 2014
Description

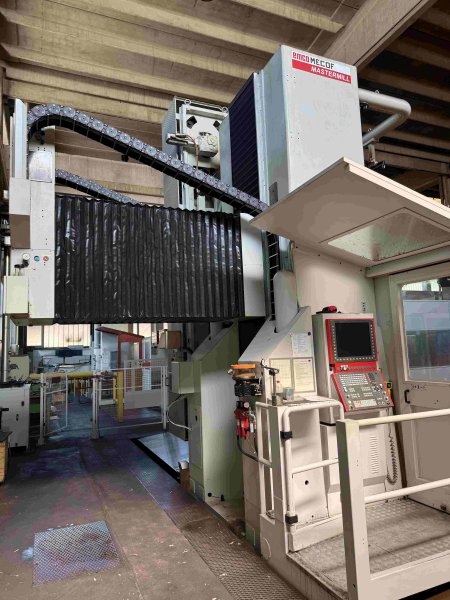

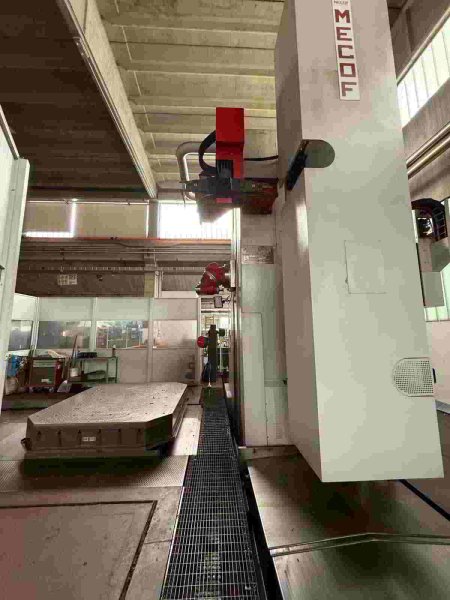

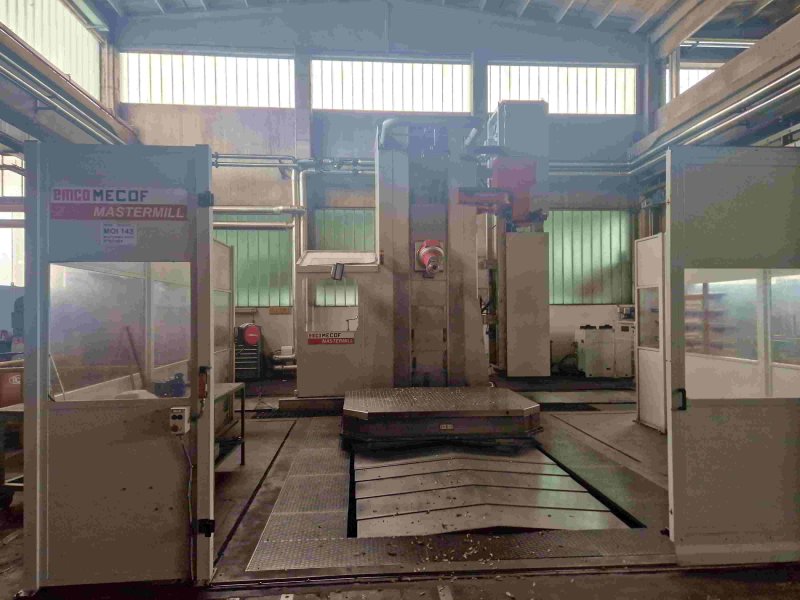

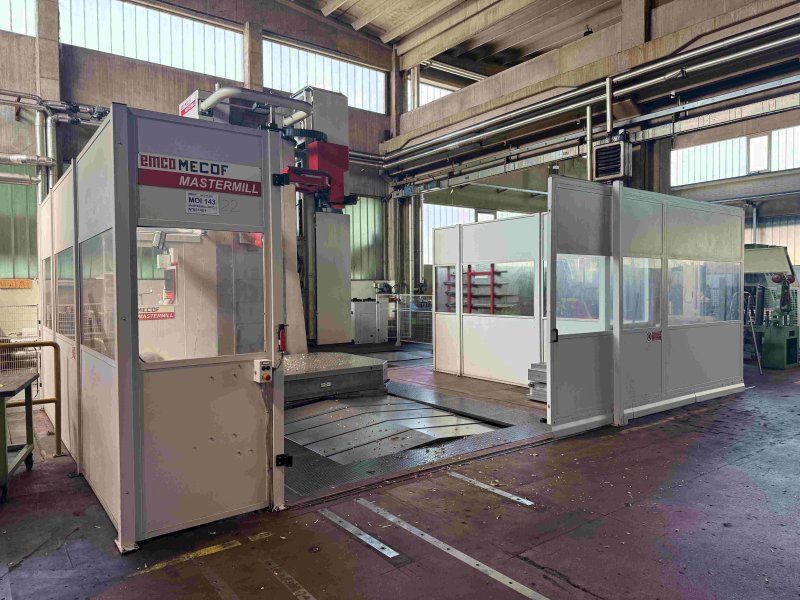

MECOF MASTERMILL HPC 3 CNC TRAVELLING COLUMN MILLING MACHINE
Column travel (X) 4,000 mm.
Head vertical travel (Y) 3,000 mm.
Ramp transverse travel (W) 1,600 mm.
Spindle motor power 38 kW.
Spindle spee ...
MECOF MASTERMILL HPC 3 CNC TRAVELLING COLUMN MILLING MACHINE
Column travel (X) 4,000 mm.
Head vertical travel (Y) 3,000 mm.
Ramp transverse travel (W) 1,600 mm.
Spindle motor power 38 kW.
Spindle speed 15 ÷ 6,000 rpm.
Spindle taper ISO 50.
Ramp cross section 500 x 500 mm.
Working feeds (X, Y, W) 0 ÷ 30,000 mm/min.

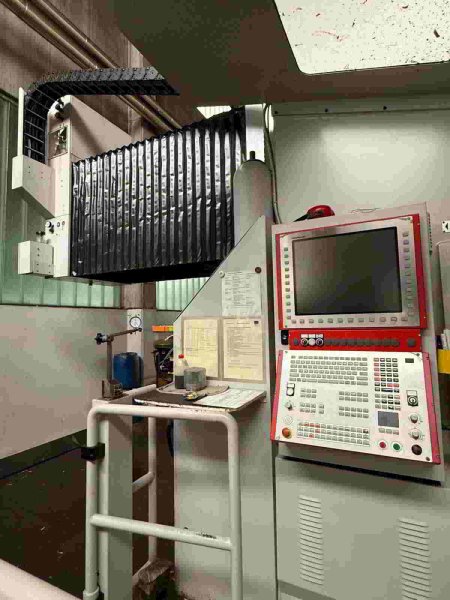

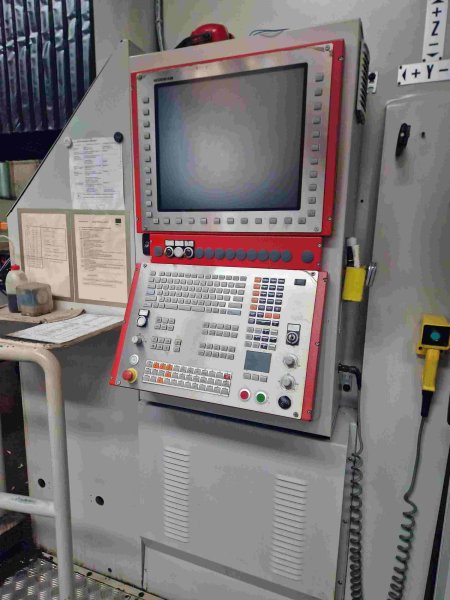

Heidenhain TNC 530 CNC
Year of construction 2014
Complete with:

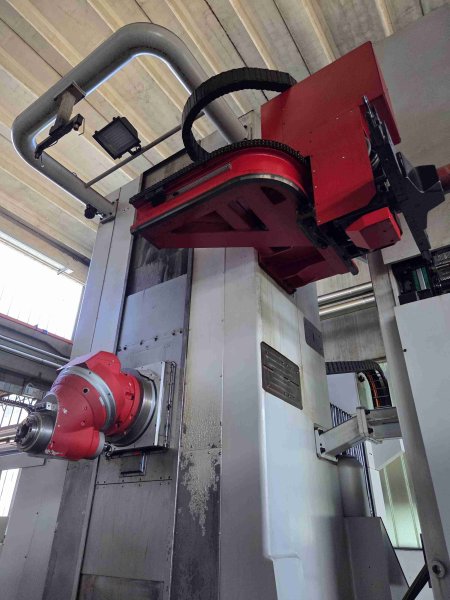

- 80-slot tool magazine

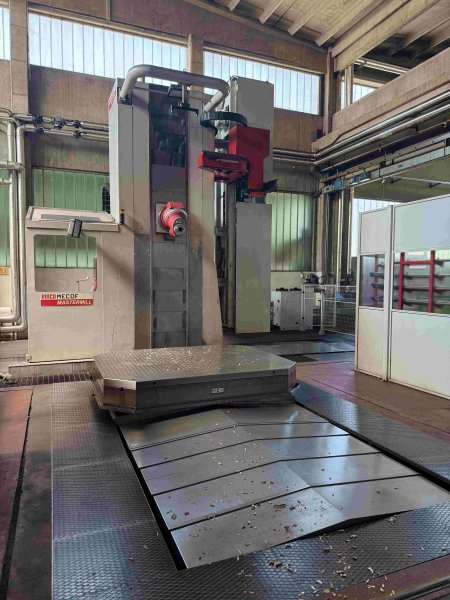

- CNC rotary table 2,500 x 2,000 mm. Capacity: 30 tons; Stroke: 1,500 mm

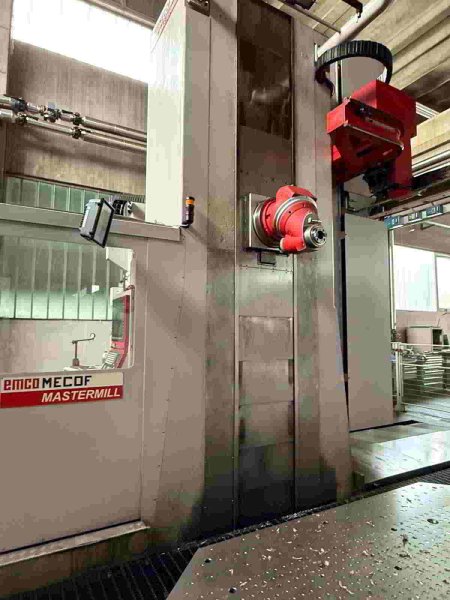

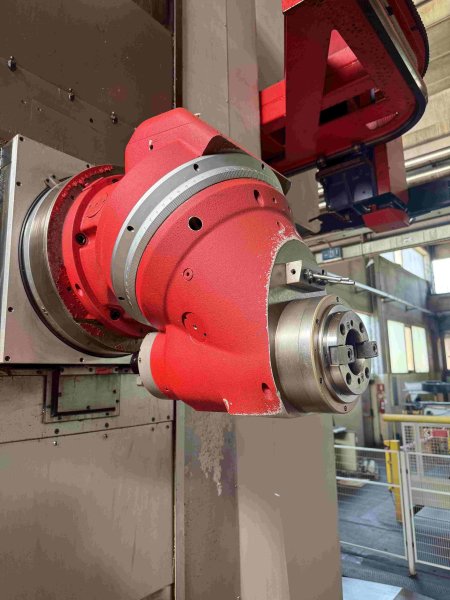

- Continuous universal milling head
- Chip conveyor
