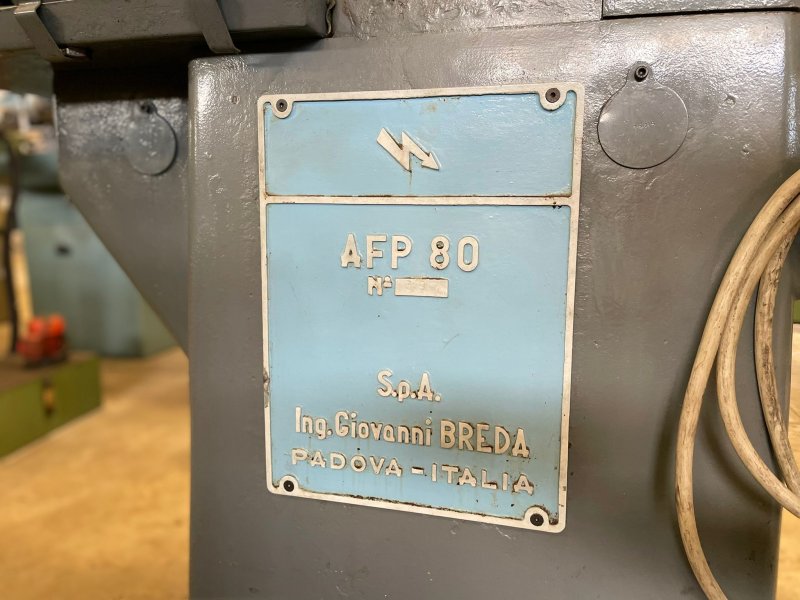

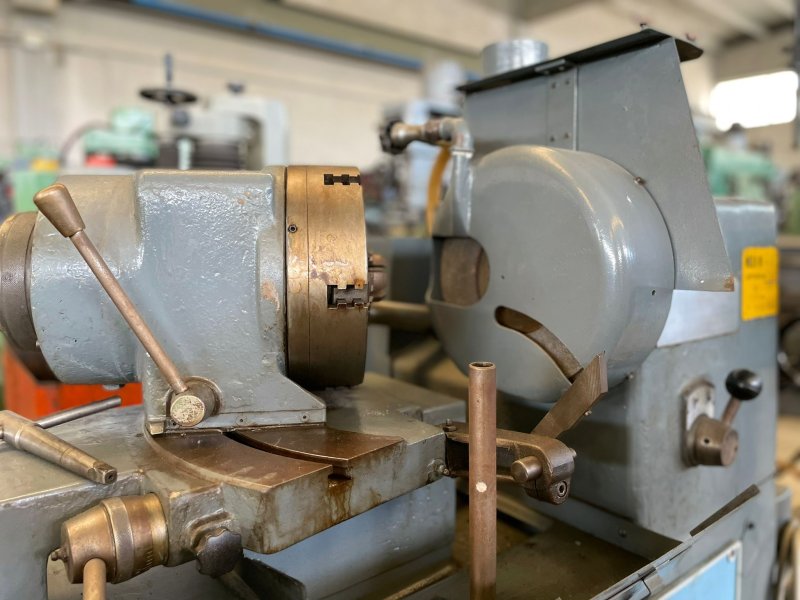

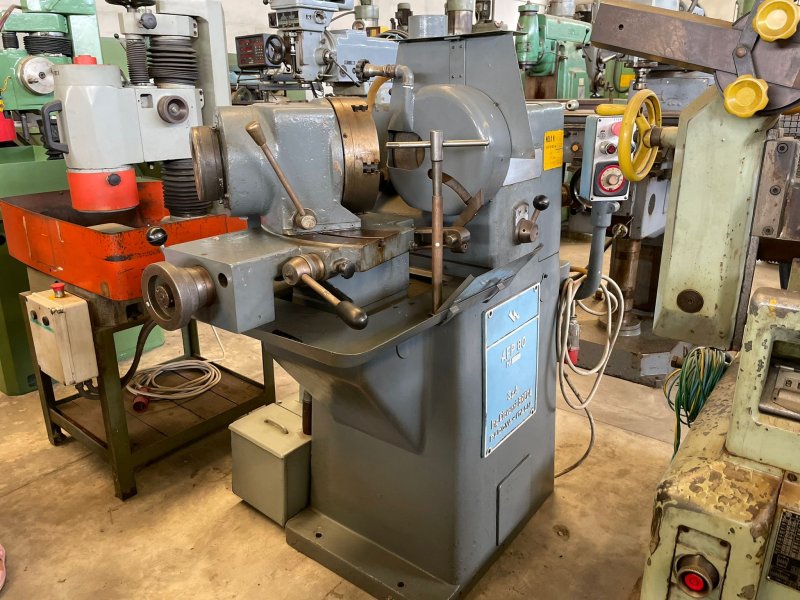

BREDA afp 80
- Condition: used
- published: 29/10/2026
- 26IND49785
Technical data
- Condition: used
- Year: undefined
Description
CAPACITY
Minimum diameter of drill bit to be sharpened: 10 mm
Maximum diameter of drill bit to be sharpened: 83 mm
Minimum vertex angle: 80°
Maximum vertex angle: 160°
Motor power: 4 HP
GRINDING WHE ...
CAPACITY
Minimum diameter of drill bit to be sharpened: 10 mm
Maximum diameter of drill bit to be sharpened: 83 mm
Minimum vertex angle: 80°
Maximum vertex angle: 160°
Motor power: 4 HP

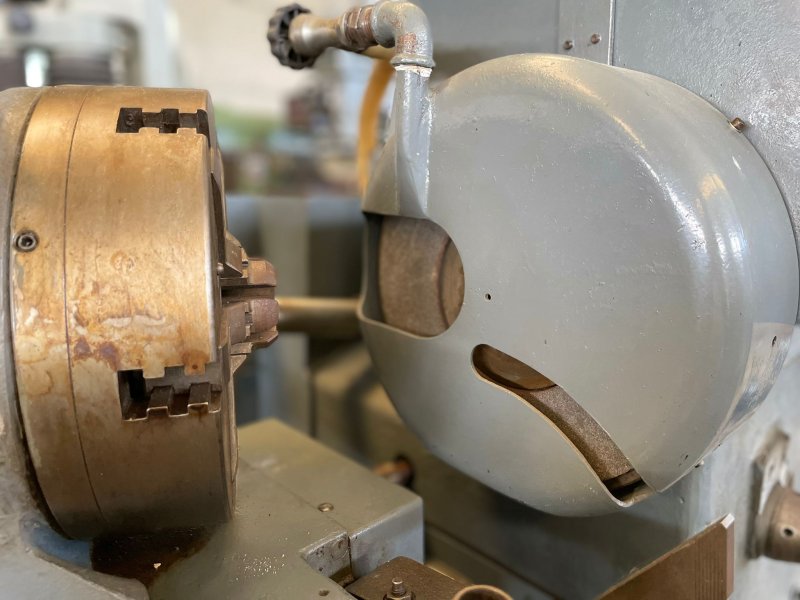

GRINDING WHEEL
Internal diameter: 127 mm
Outer diameter: 254 mm
Overall width: 51 mm
Width after wear: 10 mm
Grinding wheel speed: 2250 rpm
SPINDLE
Spindle speed: No. 3
For two-flute twist drill bits: 24 rpm
For three-flute twist drill bits: 16 rpm
For three-flute twist drill bits: Four cutting edges at 1' rpm 12
1st speed spindle feed at 1' rpm 0.22 mm
2nd speed spindle feed at 1' rpm 0.44 mm
OVERALL DIMENSIONS
Total height of the machine 1320 mm
Total length 1300 mm
Total width 780 mm
Net weight approx. 700 kg
Working
