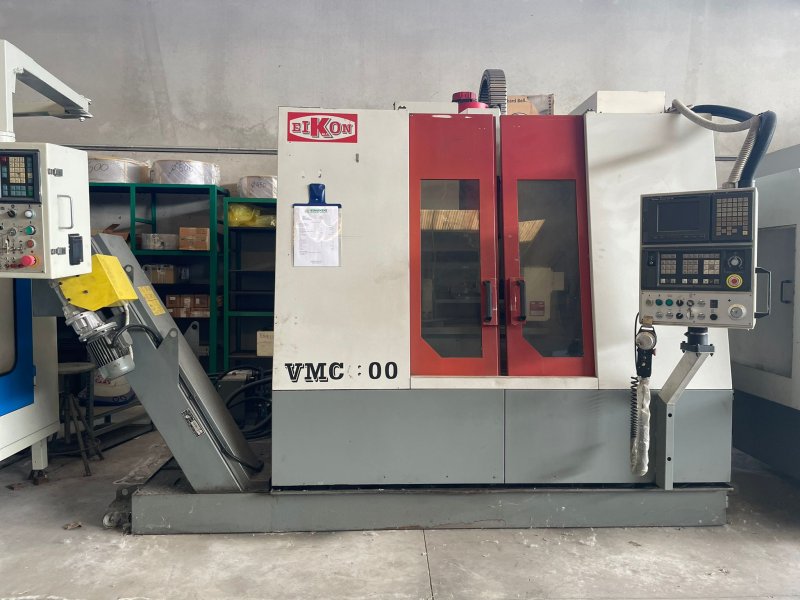

EIKON VMC 800
- Condition: used
- published: 29/10/2026
- 26IND49804
Technical data
- Condition: used
- Year: undefined
Description

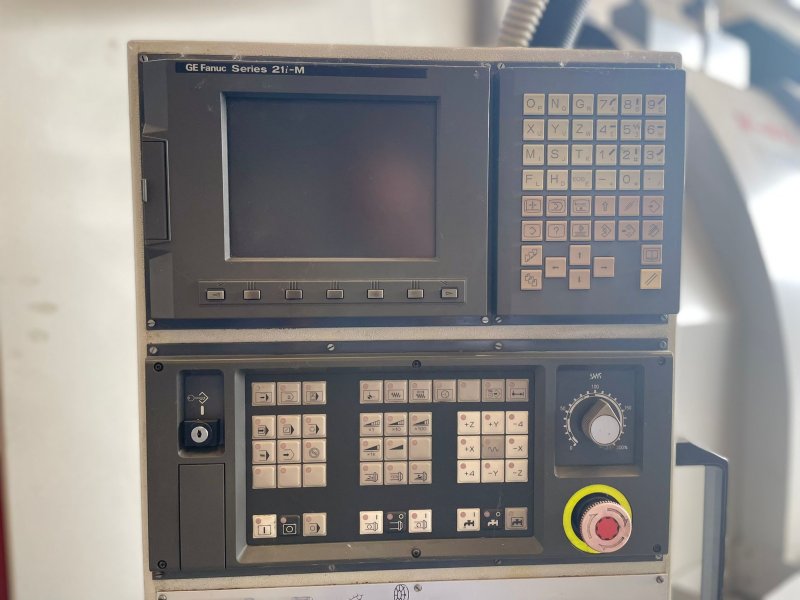

GE FANUC 21i-M control
SPINDLE / MOTOR
Front bearing diameter 70 mm
Spindle head version DIN 2079-40-AT4
Tool holder SK 40/DIN 69871 AD
Rotation speed 50 ÷ 8000 rpm
Spindle alignment Electronic
Spind ...
GE FANUC 21i-M control
SPINDLE / MOTOR
Front bearing diameter 70 mm
Spindle head version DIN 2079-40-AT4
Tool holder SK 40/DIN 69871 AD
Rotation speed 50 ÷ 8000 rpm
Spindle alignment Electronic
Spindle power 18.5 kW
LINEAR FEED AXES – X, Y, Z AXES
Axis feed rate 1 … 15000 mm/min
Rapid travel 30 m/min
Safety device Brake on the Z axis
WORKING RANGE
X-axis 800 mm
Y-axis 500 mm
Z-axis 500 mm
TOOL MAGAZINE
Number of loading stations 20
Maximum tool diameter mm 100
Maximum tool length: 300 mm
Maximum tool weight: 5 kg
TABLE
Dimensions: 1000 x 500 mm
Maximum load: 500 kg
Number of slots: 5
Central slot: 1 x 14H8
Side slots: 4 x 14H12
SUPPLIED ACCESSORIES

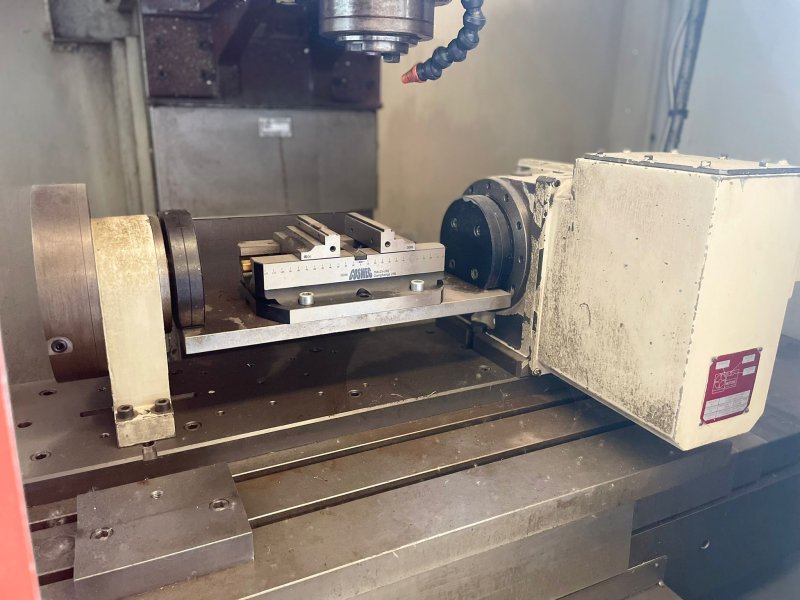

4th-axis table with COSMEC clamping system, model MA125-260
Center height: 170 mm
Cradle: 380 x 180 mm
Working
