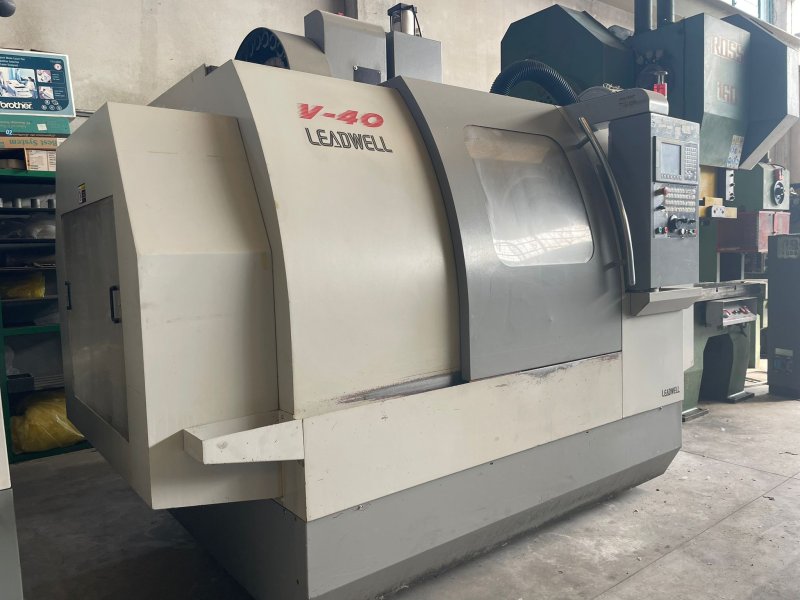

LEADWELL V 40
- Condition: used
- published: 29/10/2026
- 26IND49807
Technical data
- Condition: used
- Year: undefined
Description
FANUC 0i-MC control
CAPACITY
X-axis 1020 mm
Y-axis 510 mm
Z-axis 510 mm
Distance from spindle nose to table surface 160-770 mm
Distance from spindle nose to column surface 515 mm
TABLE
Table surface 1 ...
FANUC 0i-MC control
CAPACITY
X-axis 1020 mm
Y-axis 510 mm
Z-axis 510 mm
Distance from spindle nose to table surface 160-770 mm
Distance from spindle nose to column surface 515 mm
TABLE
Table surface 1200 x 500 mm
Maximum permissible load 500 kg
T-slot dimensions 18T x D100 x 5
SPINDLE
Rotation speed 8000 rpm
Spindle tool holder BT 40
Spindle bearing inner diameter 70 mm
FEEDS
X/Y/Z-axis rapid traverses 24 / 24 / 20 m/min
Maximum cutting speed 10 m/min
A.T.C.
Tools in magazine: 24
Maximum tool diameter: 95 mm
Maximum tool length: 250 mm
MOTORS
Spindle motor: 18.5 kW
X/Y/Z axis feed motors: 3/3/4 kW
MACHINE DIMENSIONS
Height: 2585 mm
Length/Width: 2990 x 3250 mm
Weight: 5400 kg
Total installed power: 30 kW
SUPPLIED ACCESSORIES

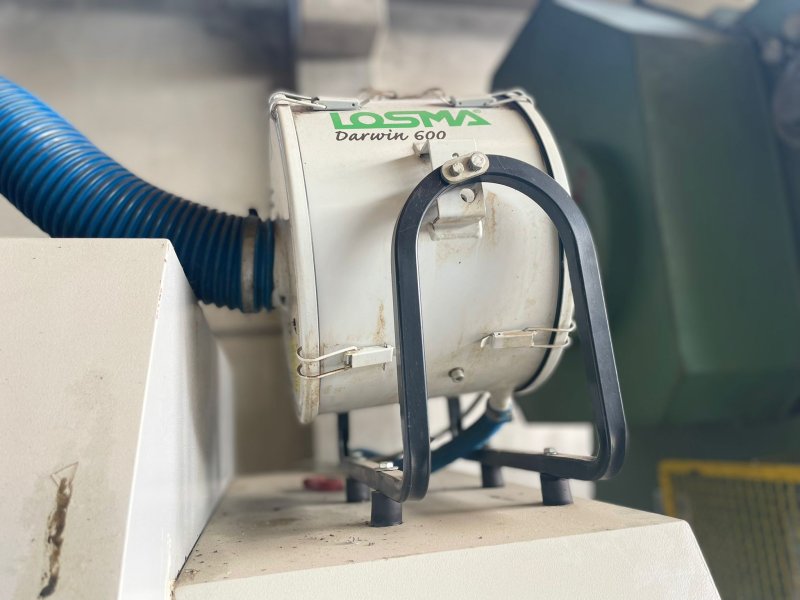

LOSMA fume extractor, model DARWIN 600
Working
