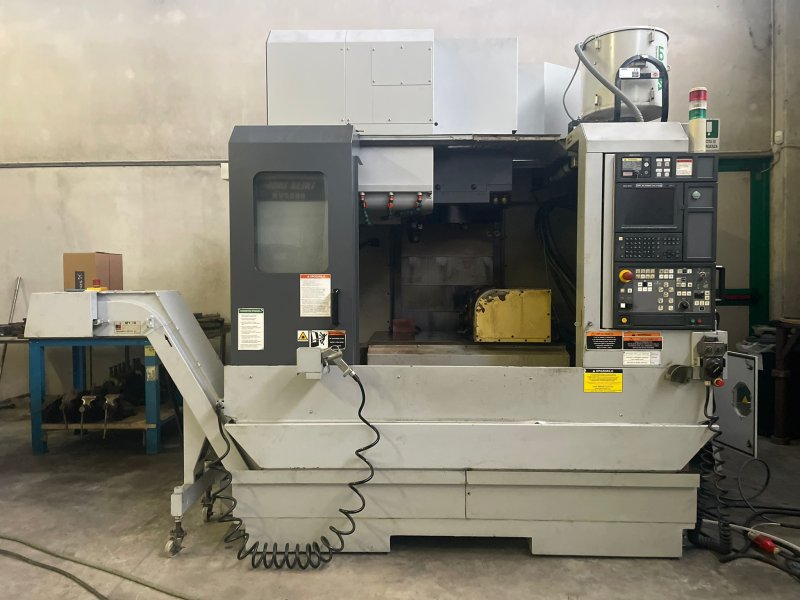

MORI SEIKI NV 5000 A/40
- Condition: used
- published: 29/10/2026
- 26IND49808
Technical data
- Condition: used
- Year: undefined
Description
TRAVELS
X-axis travel 800 mm
Y-axis travel 510 mm
Z-axis travel 510 mm
Distance between table surface and spindle 150 – 600 mm
TABLE
Work surface 1100 x 600 mm
Permitted table load 100 kg
Table surf ...
TRAVELS
X-axis travel 800 mm
Y-axis travel 510 mm
Z-axis travel 510 mm
Distance between table surface and spindle 150 – 600 mm
TABLE
Work surface 1100 x 600 mm
Permitted table load 100 kg
Table surface configuration 6 x 18 mm T-slots
SPINDLE
Maximum spindle speed 20,000 min¯¹
Spindle speed range 1 step
Spindle taper bore No. 40
Internal bearing diameter 65 mm
FEEDS
X-Y-Z axes rapid feed 42,000 mm/min
Cutting feed 1 – 6,000 mm/min
Working feed 1 – 1260 mm/min
TOOLS
Type BT 40 tool
Tool magazine capacity: 30
Maximum tool diameter: 80 mm
Maximum tool length: 300 mm
Maximum tool weight: 8 kg
MOTORS
Spindle motor power: 22 kW (HP)
Drive motor power: 30 kW (HP) X, Y: 3.0 (4.0) – Z: 5.5 (7.5)
Cooling oil pump power: 3.4 kW (HP)
TANKS
Lubricant tank capacity: 2.0 liters
Coolant tank capacity: 230 liters
DIMENSIONS AND WEIGHTS
Machine height: 2603 mm
Overall dimensions: 2460 x 2710 mm
Machine weight: 6350 kg

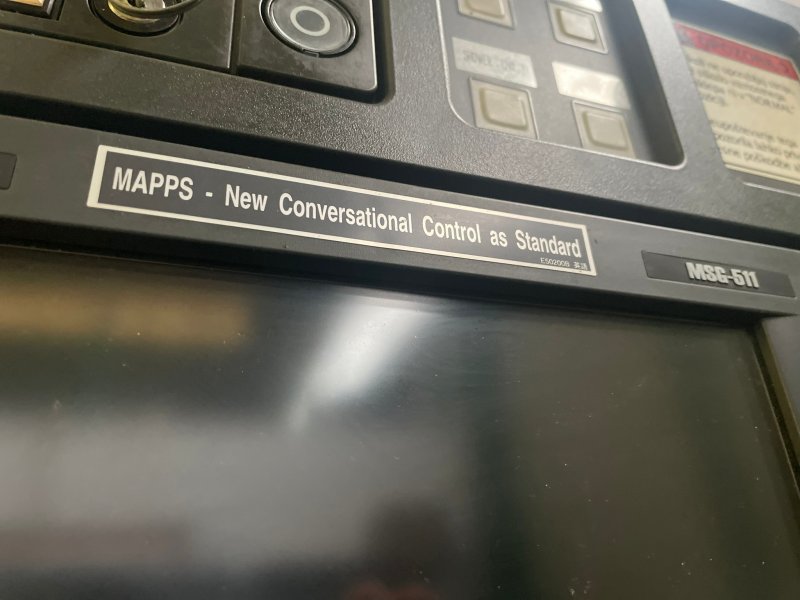

MAPPS numerical control MSG 511
NIKKEN 4th and 5th-axis table, model 5AX-200 II FA

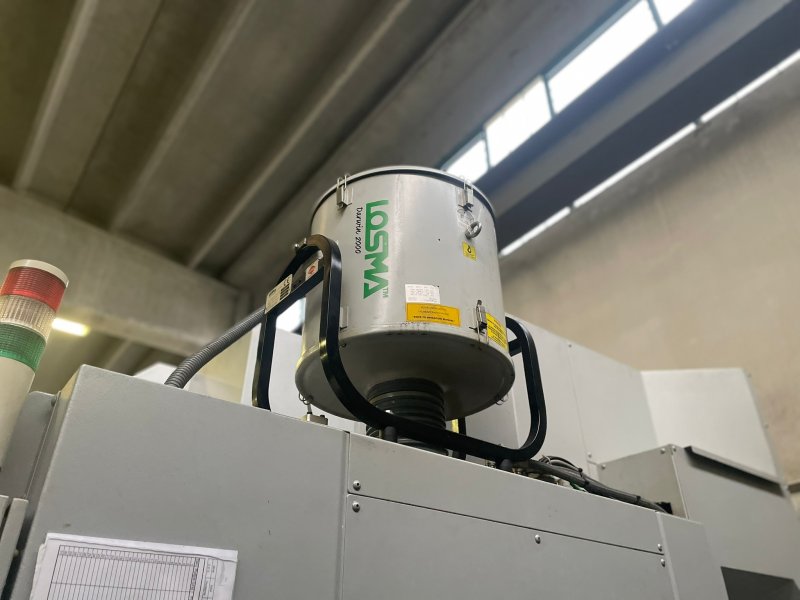

LOSMA fume extractor, model DARWIN 2000
Electronic handwheel
Chip conveyor
Working
