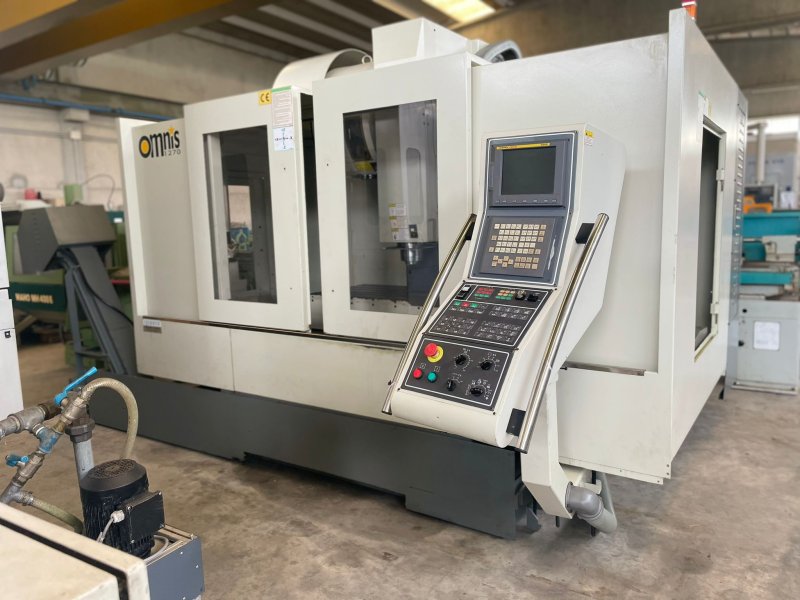

SHE HONG OMNIS VMC 1270 A
- Condition: used
- published: 29/10/2026
- 26IND49809
Technical data
- Condition: used
- Year: undefined
Description

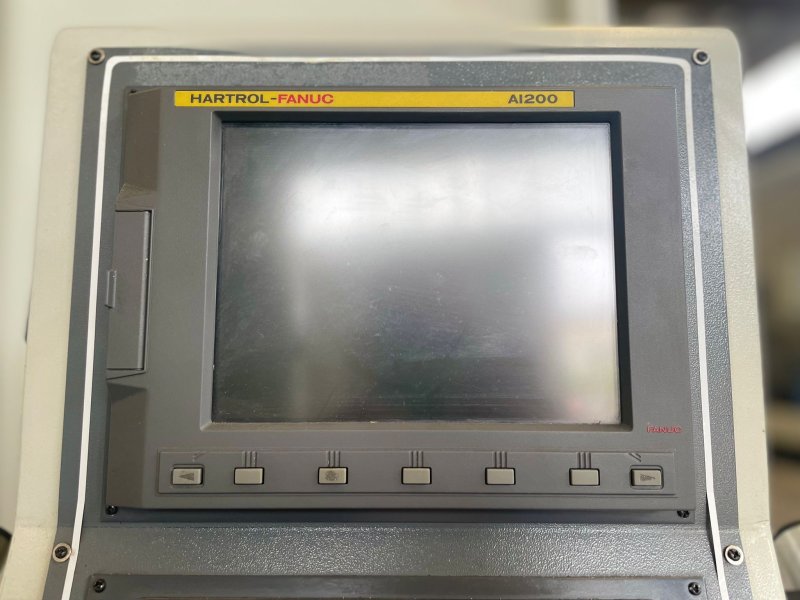

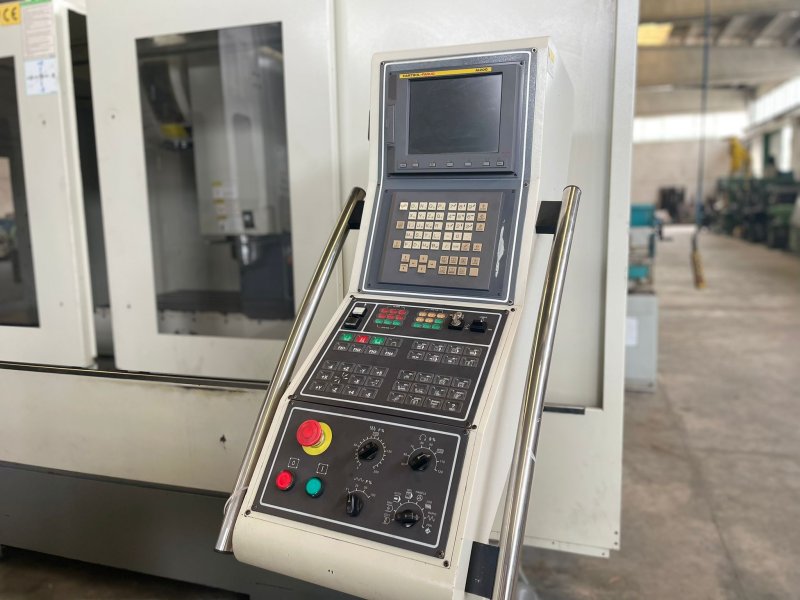

FANUC 21i - MB control

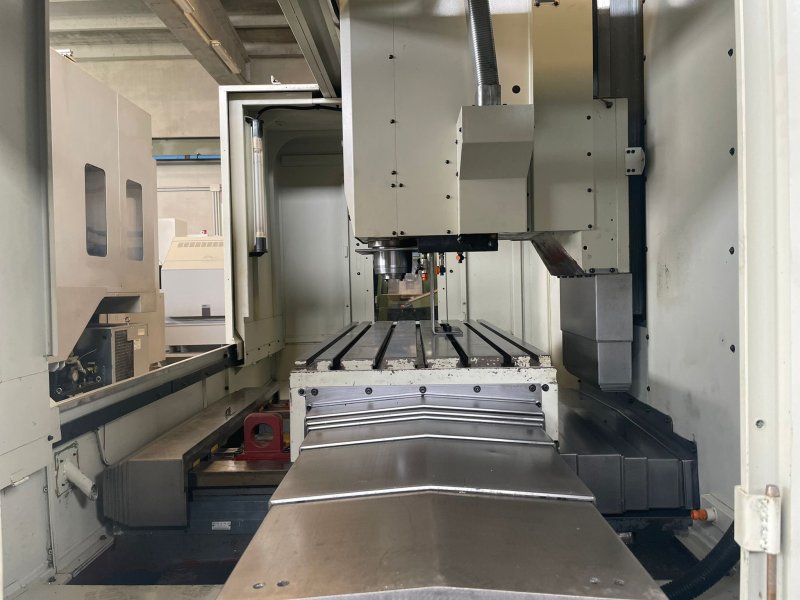

TABLE
Working surface 1370x600 mm
T-slot 18x5x100 mm
Maximum table load 950 kg
TRAVEL
Longitudinal travel (X-axis) 1270 mm
Transverse travel (Y-axis) 635 mm
Vertical travel (Z-a ...
FANUC 21i - MB control
TABLE
Working surface 1370x600 mm
T-slot 18x5x100 mm
Maximum table load 950 kg
TRAVEL
Longitudinal travel (X-axis) 1270 mm
Transverse travel (Y-axis) 635 mm
Vertical travel (Z-axis) 635 mm
Distance between spindle tip and table 100-735 mm
Distance between spindle center and column 655 mm

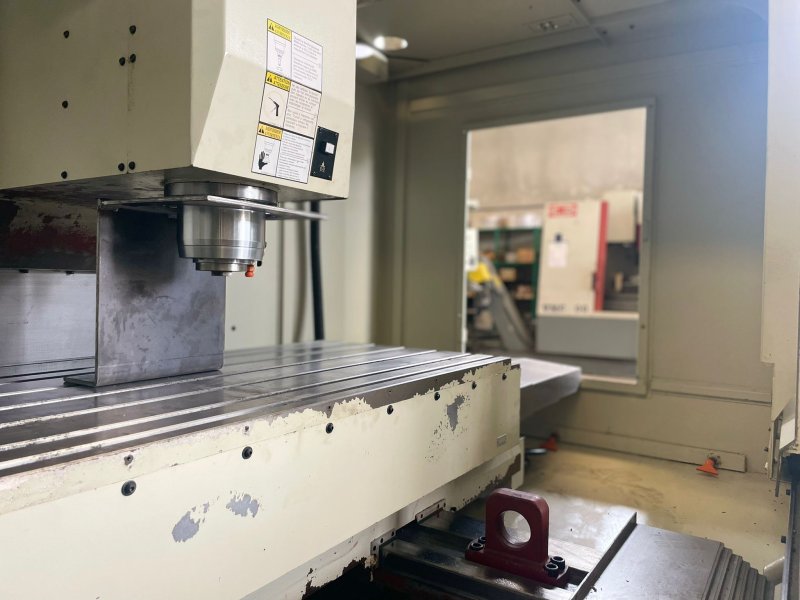

SPINDLE
Spindle taper #40
Spindle speed 40 – 8000 rpm

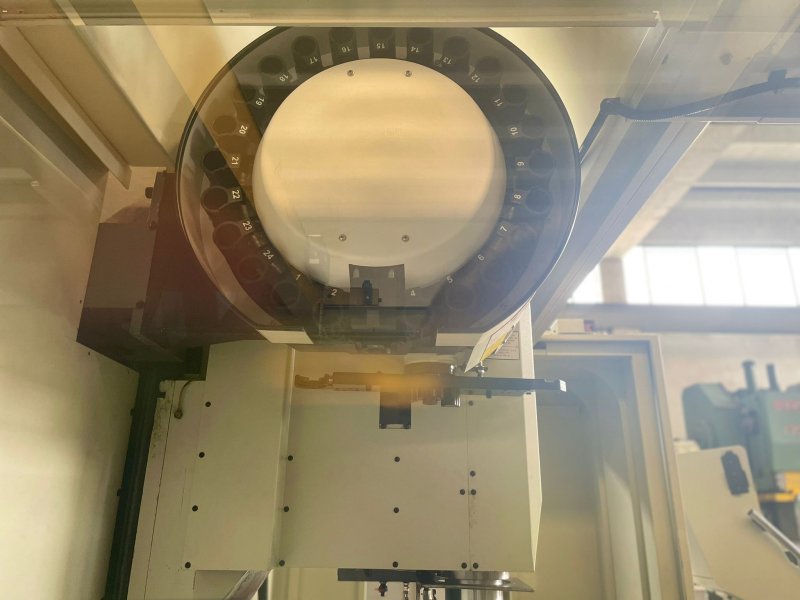

ATC (Automatic Tool Changer)
Cutting feed rate mm/min 1 – 12,000
Rapid traverse X, Y, Z axes 20,000 mm/min
Tool storage capacity 24 pcs
Maximum tool weight 6 kg
Maximum dimensions Tool diameter (diameter x length) mm 90x250/76x250
Tool selection: Random
Tool change time: 5 sec
Tool shank: BT40/CAT40
Tool stud: MAS-P40T-1
MOTOR
Spindle drive motor (rated power 30 min.) KW (HP) 11 (15)
Spindle drive motor (HEIDENHAIN – rated power 30 min.) KW (HP) 9.8 (13)
MISCELLANEOUS
Required air pressure Kg/cm² 6.5
Energy consumption KVA 29
Energy consumption (HEIDENHAIN) KVA 27
Machine weight Kg 7200
Working
