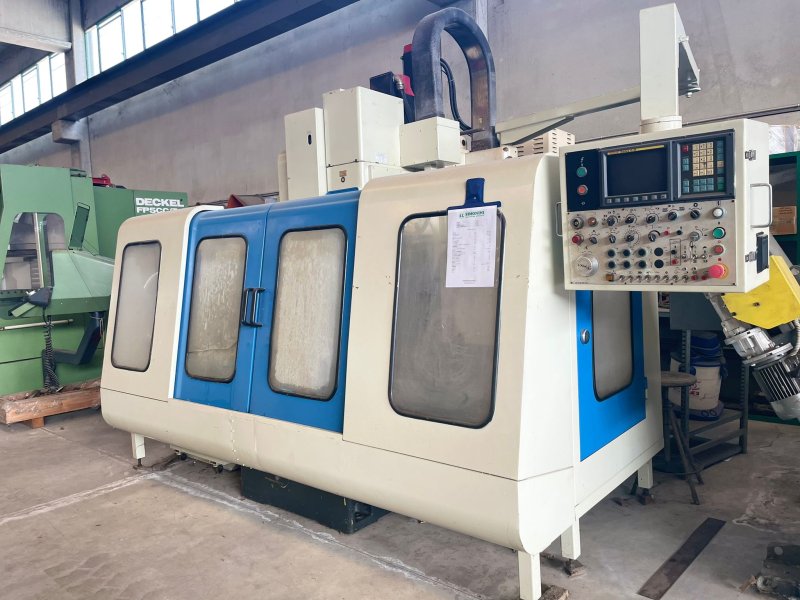

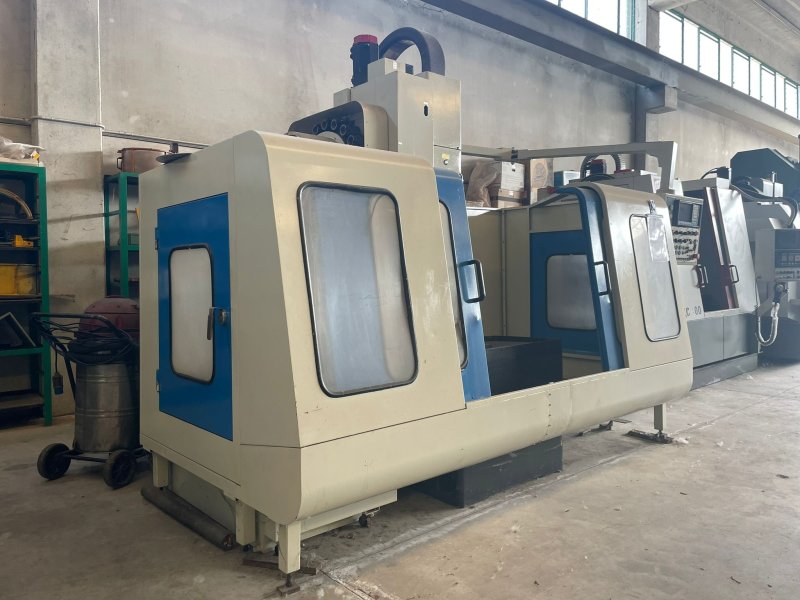

YAM MV-3A
- Condition: used
- published: 29/10/2026
- 26IND49810
Technical data
- Condition: used
- Year: undefined
Description

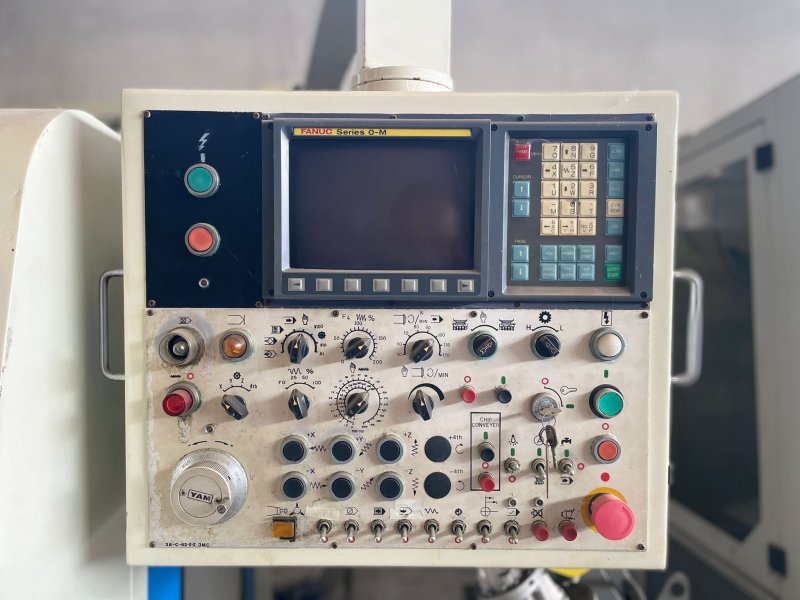

FANUC 0-M control

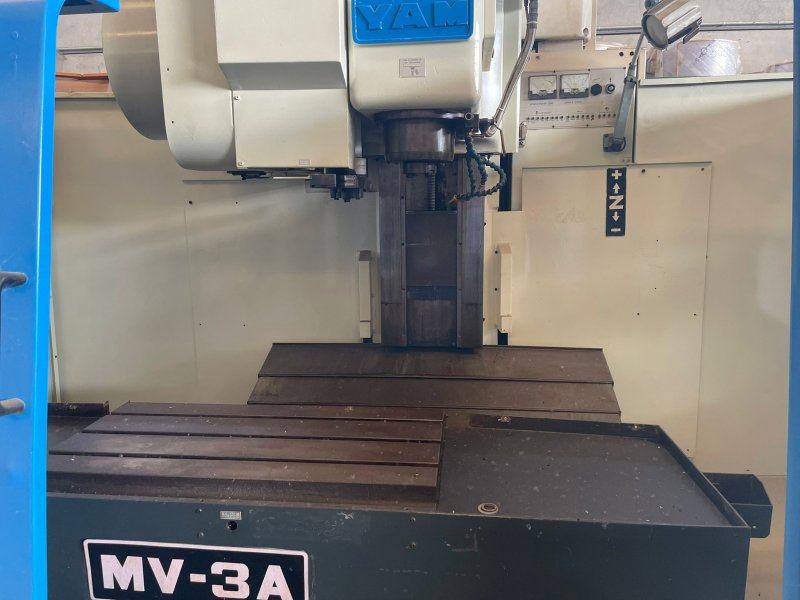

TABLE
Benches dimensions: 900 x 525 mm
Work area: 900 x 430 mm
T-slots: 18 x 3 slots
Maximum load capacity: 500 kg
AXES
(X) Longitudinal: 762 mm
(Y) Transverse: 450 mm
(Z) Vertical: ...
FANUC 0-M control
TABLE
Benches dimensions: 900 x 525 mm
Work area: 900 x 430 mm
T-slots: 18 x 3 slots
Maximum load capacity: 500 kg
AXES
(X) Longitudinal: 762 mm
(Y) Transverse: 450 mm
(Z) Vertical: 500 mm
Distance from spindle nose to table surface: 125 - 625 mm

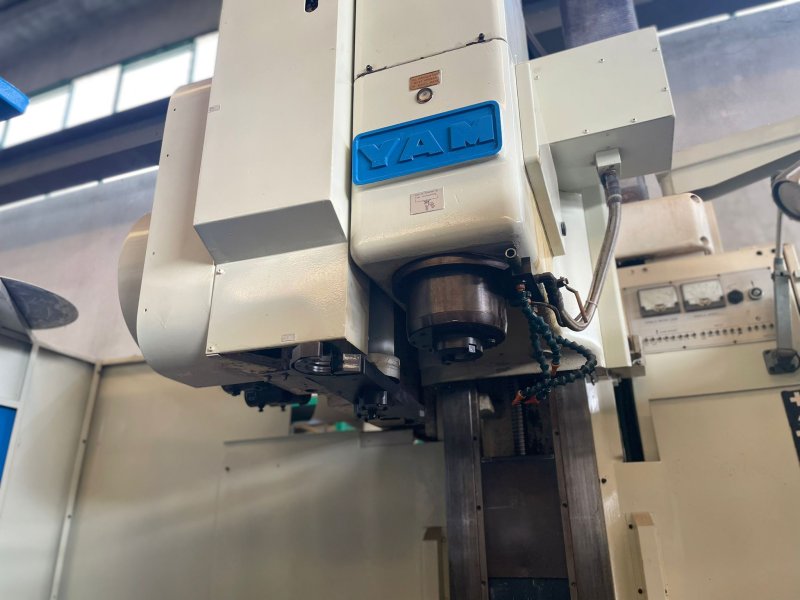

SPINDLE
Taper connection: BT 40
Spindle nose external diameter: 75 mm
Speed: 45 - 4500 rpm
RAPID TRANSFERS AND FEEDS
Cutting feed X, Y, Z axes: 1-4000 mm/min
Rapid travel X, Y, Z axes: 12 m/min
TOOL MAGAZINE
Magazine capacity: 20
Tool diameter: 89 mm
Tool length: 300 mm
Maximum tool weight: 10 kg
MOTORS
AC spindle motor: 5.5 / 7.5 kW
X, Y, Z axis motor: 1.8 kW (Z axis with brake)
Machine dimensions: 2793 x 2670 x 2916 mm
Weight: 6200 kg
