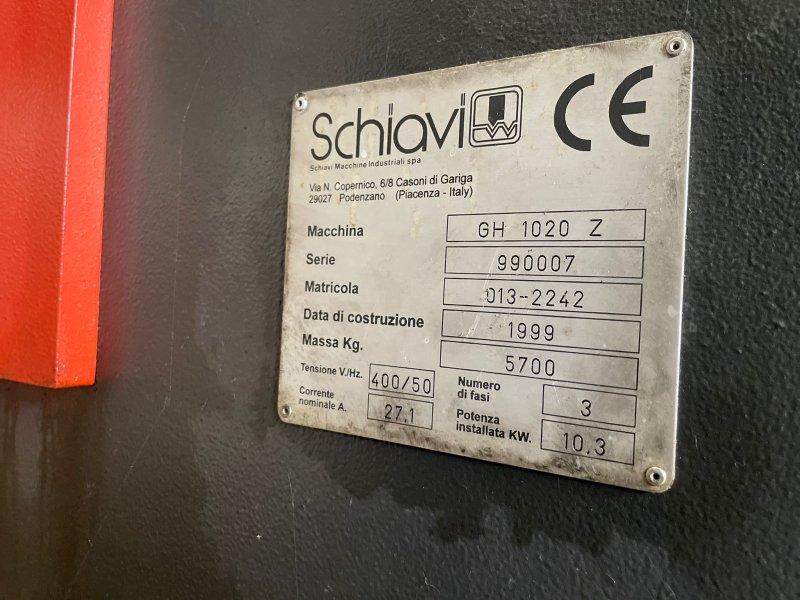

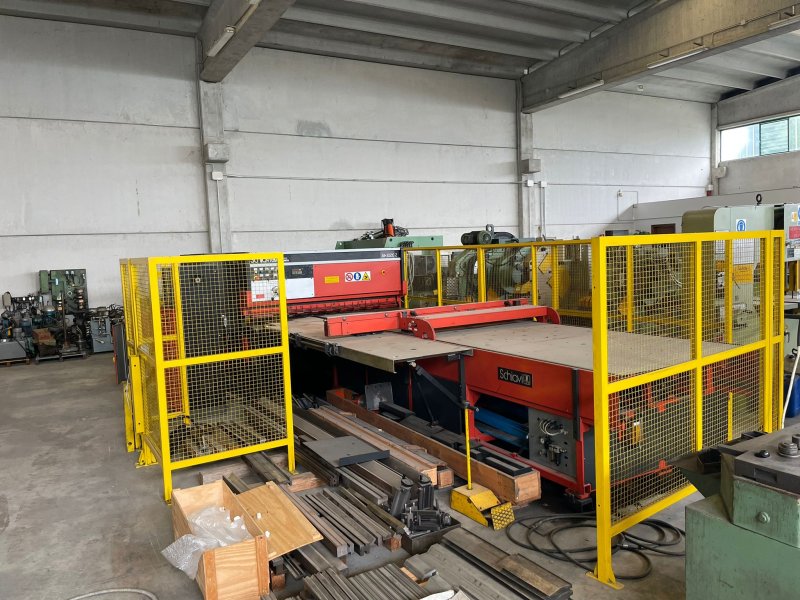

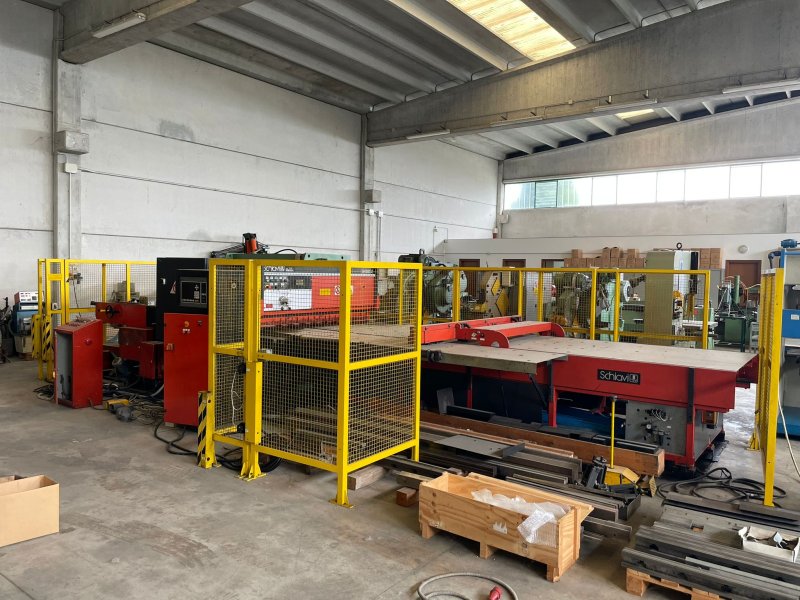

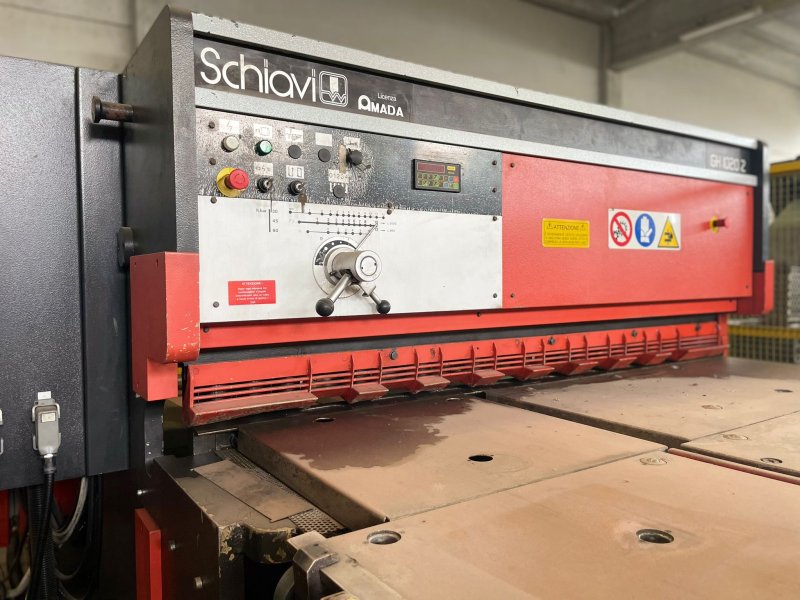

SCHIAVI GH 1020 Z
- Condition: used
- published: 29/10/2026
- 26IND49812
Technical data
- Condition: used
- Year: undefined
Description
Blade length 2040 mm
Gap 60 mm
Sheet metal cutting capacity R=40 kg mm² 10x2040
12x800
Sheet metal cutting capacity R=60 kg mm² 6x2040
Rate without stroke selector 20 to 40
Rate with stroke selector ...
Blade length 2040 mm
Gap 60 mm
Sheet metal cutting capacity R=40 kg mm² 10x2040
12x800
Sheet metal cutting capacity R=60 kg mm² 6x2040
Rate without stroke selector 20 to 40
Rate with stroke selector 20 to 65
Cutting angle variation 0° 35'
2° 30'
Motor power 12 HP
Overall dimensions 2230 x 2130 x 1705 mm
Weight 5700 kg

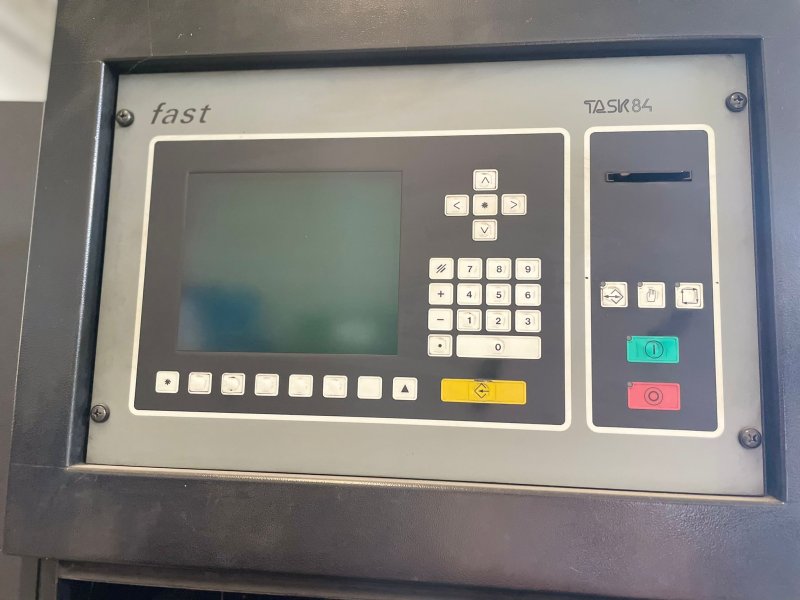

TASK 84 control, FAST SW4x version
AUTOMATIONS

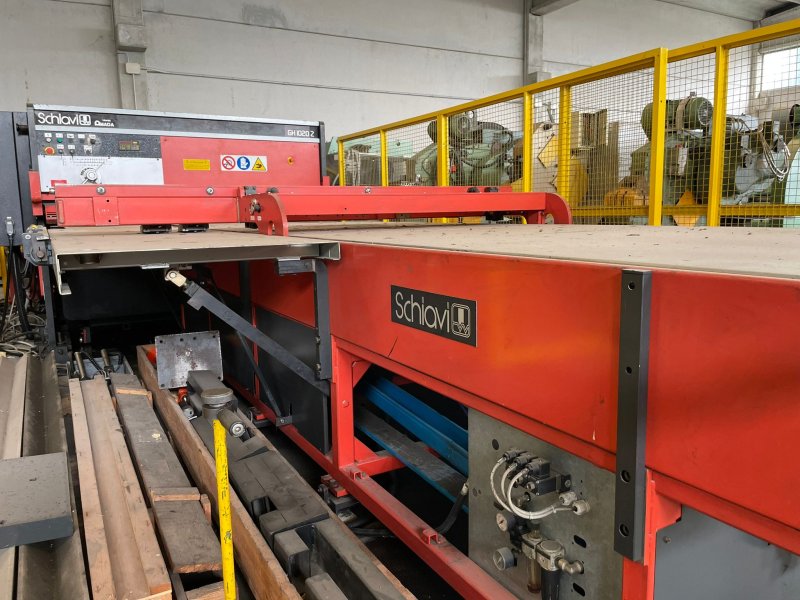

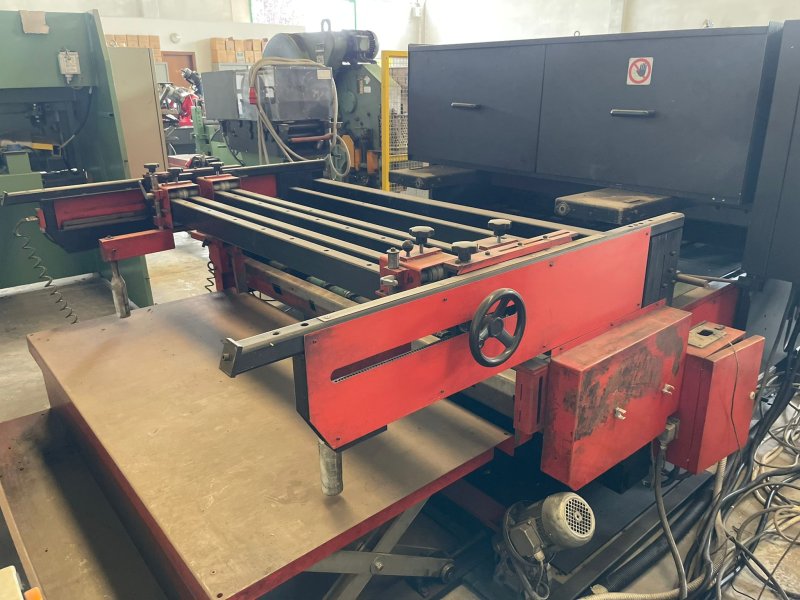

Feeder + conveyor – automatic stacker

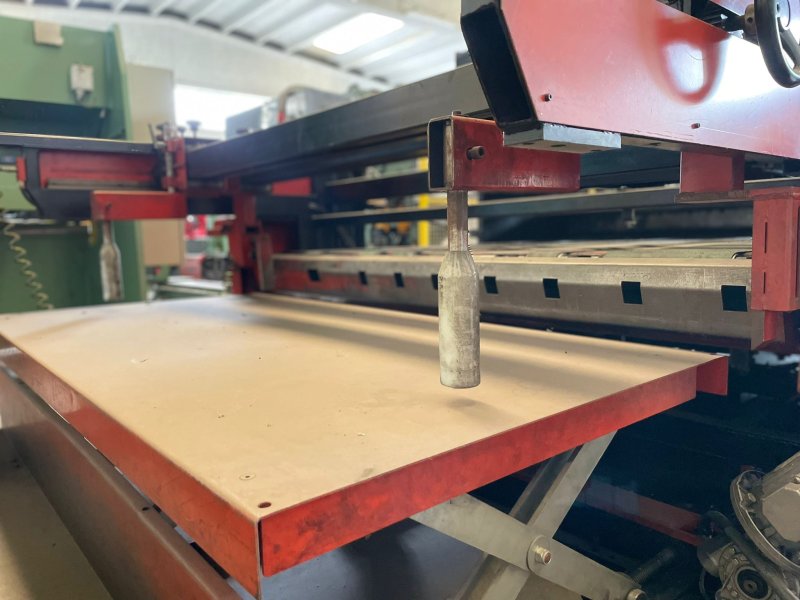

Thin sheet metal support
Ejection of cut pieces
Selection of scraps from finished pieces
Piece stacking
Piece removal
Working
CE compliant
