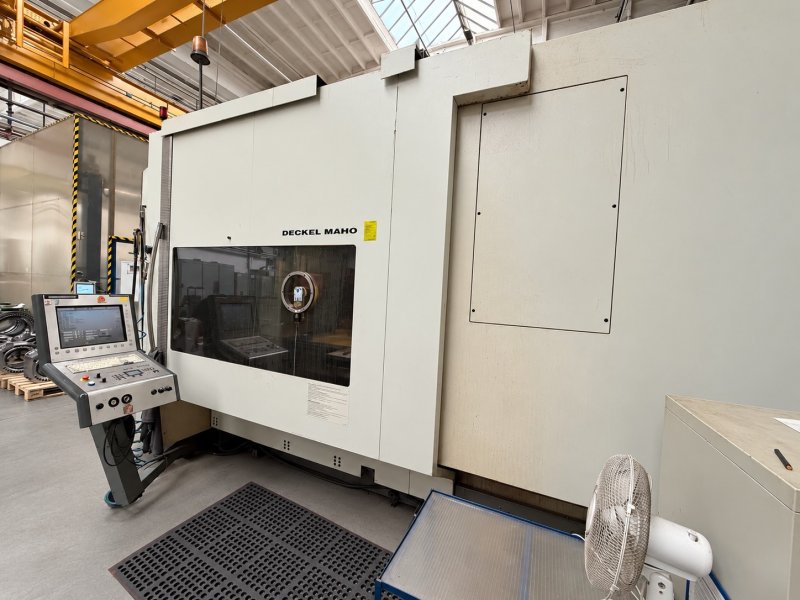

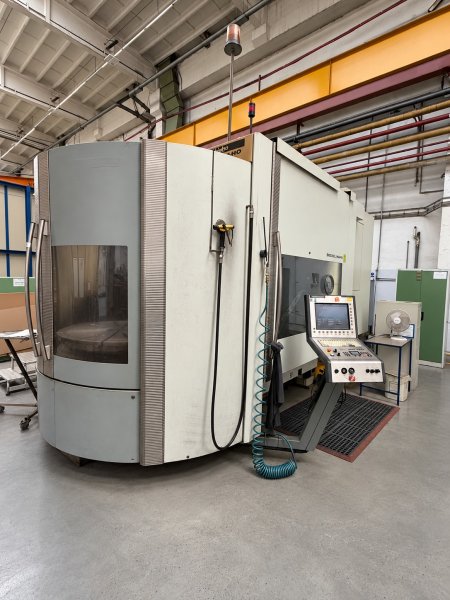

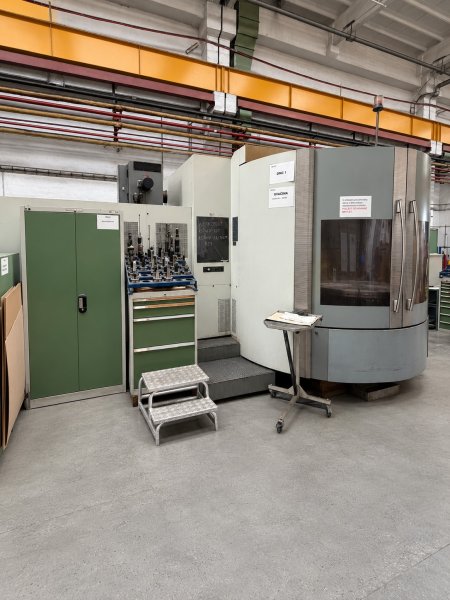

DECKEL MAHO DMC 125 FD hi-dyn 2004
- Condition: used
- published: 29/10/2026
- 26IND49816
Technical data
- Condition: used
- Year: 2004
- X-axis travel: 1001/2000 mm
Description
Construction year: 2004

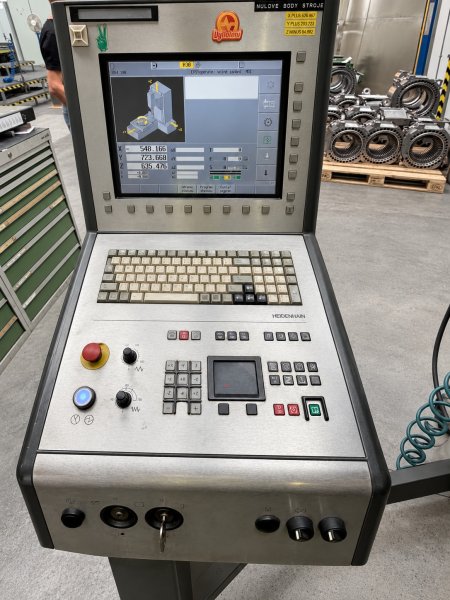

Numerical control: Heidenhain MillPlus IT FD
Assi
Asse X corsa mm: 1250
Asse Y corsa mm: 880
Asse Z corsa mm: 800
Angle asse C: 360º (0.001)
Angle asse B: -30º/180º
...
Construction year: 2004
Numerical control: Heidenhain MillPlus IT FD
Assi
Asse X corsa mm: 1250
Asse Y corsa mm: 880
Asse Z corsa mm: 800
Angle asse C: 360º (0.001)
Angle asse B: -30º/180º

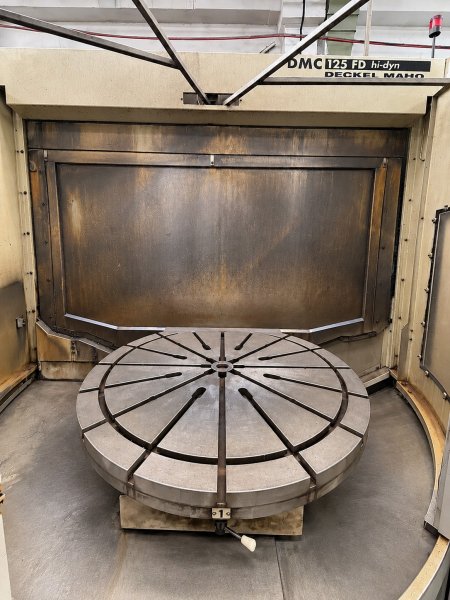

Table of milling/turning nc:
Pallet number 2
Table size mm: Ø1100
Mass dimension of the working piece mm: H=1600
Mass weight of the workable piece kg: 2000
Table rotation speed turns/min: 400

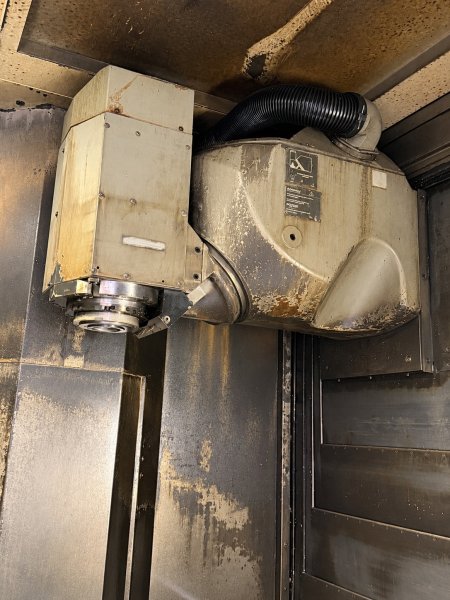

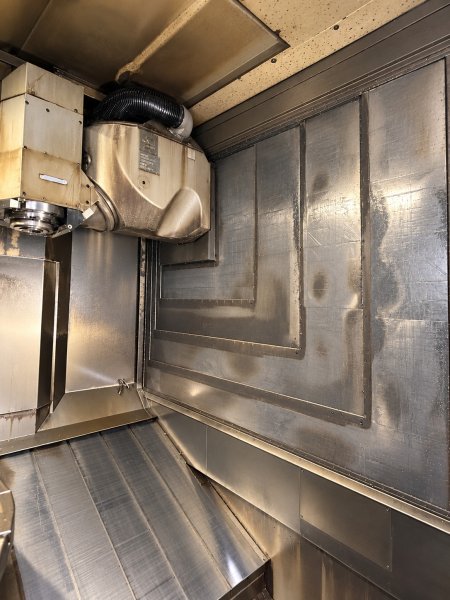

Mandrino
Speed of chuck rotation turn/min: 10000
Chuck power kW: 44/32(40%ED/cont)

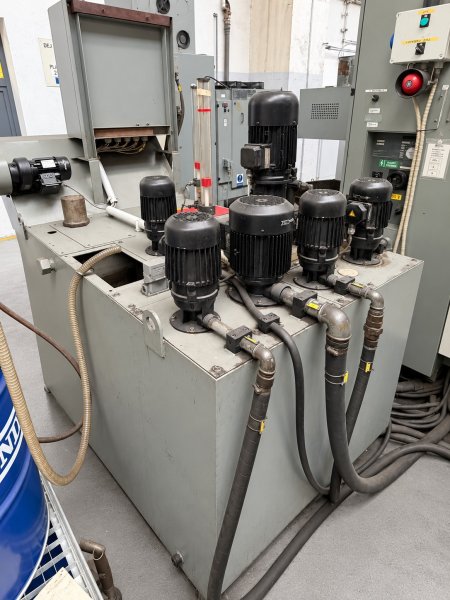

Lubrocoolant
Lubrorefrigerant via mandrel bar center: 40
Capacity of the serbatoio litre: 900
Magazzino utensili
HSK-A 100 utensil holder
Posizioni magazzino utensili 120
Equipment
electronic volantino

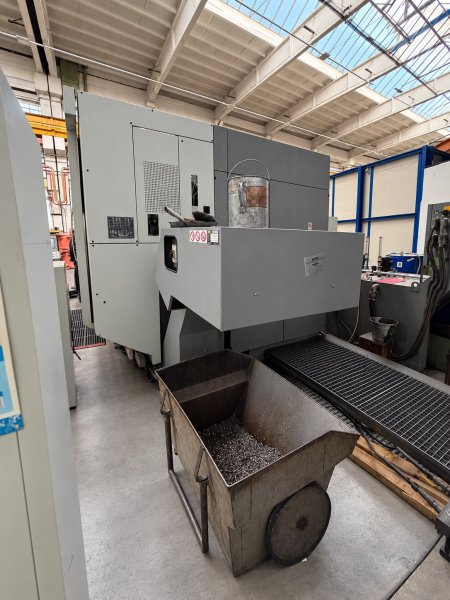

Convogliatore trucioli
Infrarossi raggi probe
Feeding of the internal lubricant lubricant (via center)
Finestre di ispezione with rotating device
lavaggio pistol
4 operative modality
Presetting, utensil control arm

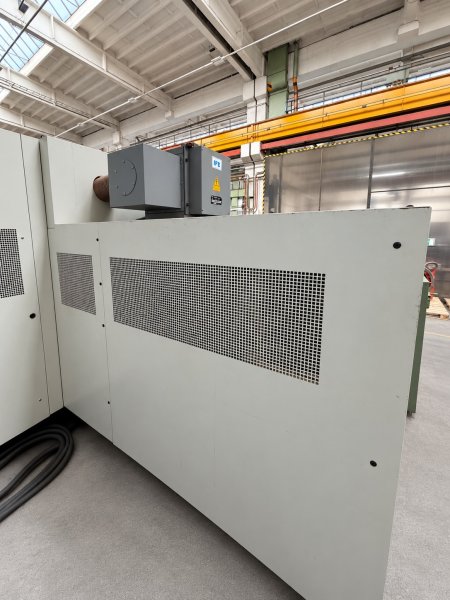

Filter for nebbie oleose
Time in I work
Feed: 92687
Mandrino in work: 40245
Main dimensions of the machine / weight
Length mm: 7000
Length mm: 5500
Height mm: 3000
Weight kg: 22000
