ECOR PPUSH-150 2024
- Condition: new
- published: 30/10/2026
- 26IND49819
Technical data
- Condition: new
- Year: 2024
Description

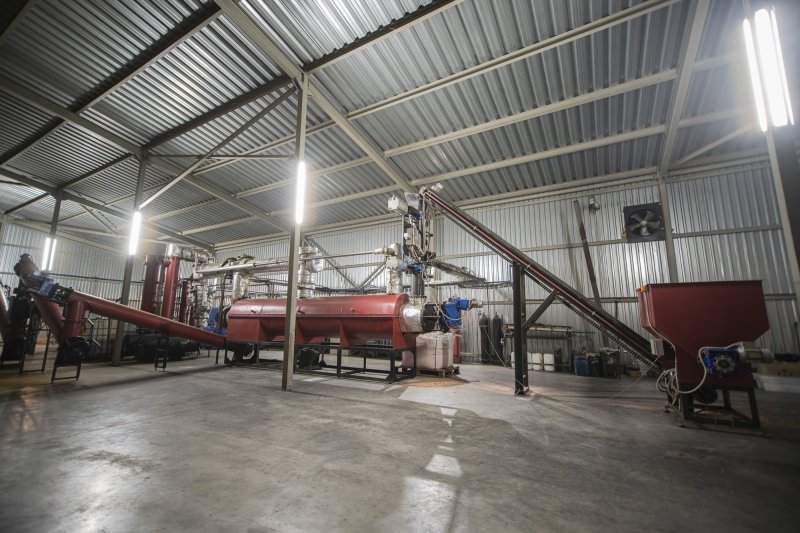

New PPUSH-150 continuous pyrolysis plant (2024), 150 kg/h, plastics, rubber, biomass
The ECOR PPUSH-150 is a continuously operating industrial pyrolysis plant for the thermal cracking of carbon-conta ...
New PPUSH-150 continuous pyrolysis plant (2024), 150 kg/h, plastics, rubber, biomass

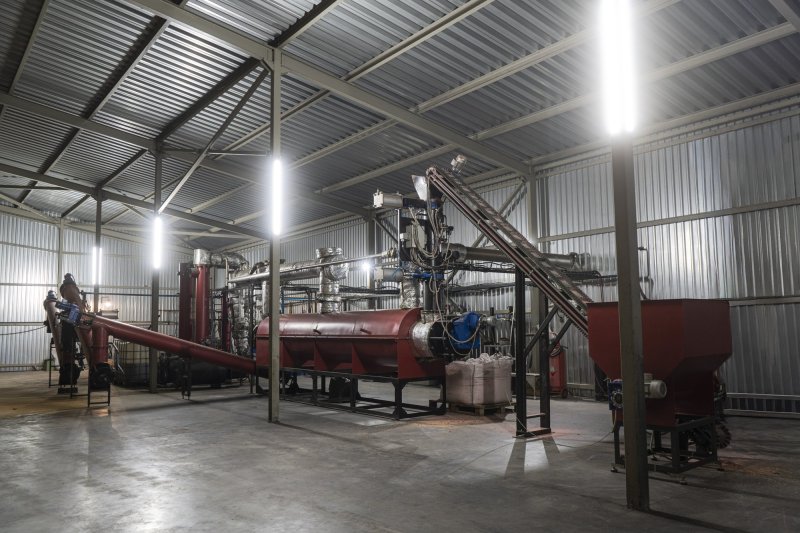

The ECOR PPUSH-150 is a continuously operating industrial pyrolysis plant for the thermal cracking of carbon-containing materials in the absence of air. The material is fed, transported through the reactor, treated, and discharged continuously, with no downtime for batch loading and unloading.
Feedstocks and capacities
- Polymer waste (plastic): up to 150 kg/h
- Rubber (including tires): up to 150 kg/h
- Plant-based feedstock/biomass: up to 200 kg/h
Suitability for a specific feedstock must be verified on a case-by-case basis.
Typical Products and Yields
- Liquid products: 35–50% (for polymers and rubber separated in separate condensers into heavy fractions, such as fuel oil, and light fractions, such as fuel oil)
- Non-condensable gases: 5–15%
- Carbon residue (coke) or biochar: 40–50%
Actual yields depend on the type, composition, and preparation of the raw material.
Operation

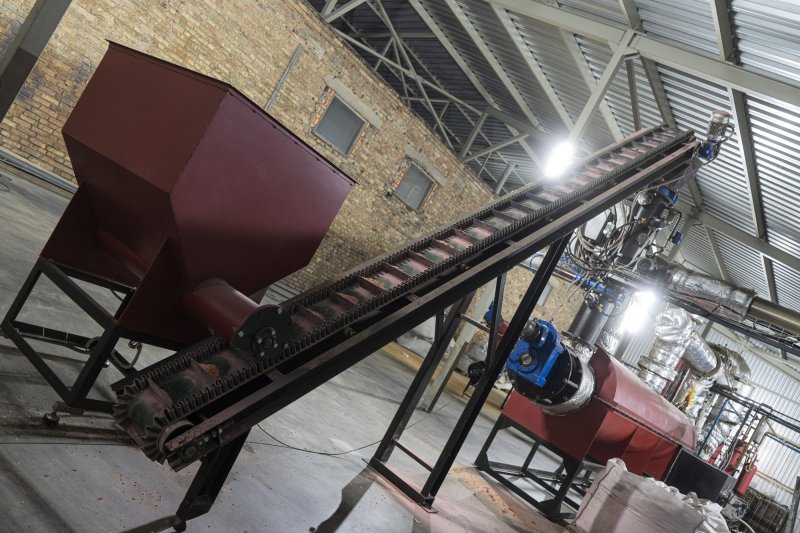

1. The prepared material enters a dosing hopper with load cells and is fed via a conveyor belt.
2. A system of gates ensures controlled loading of the reactor.

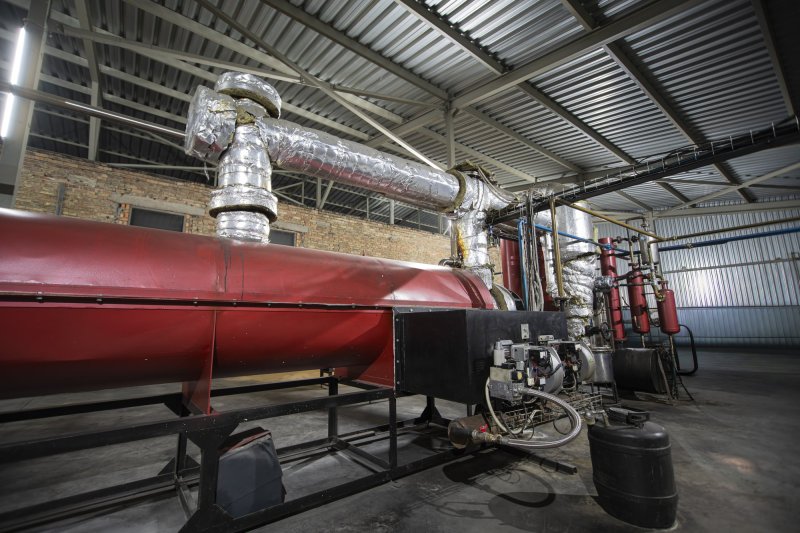

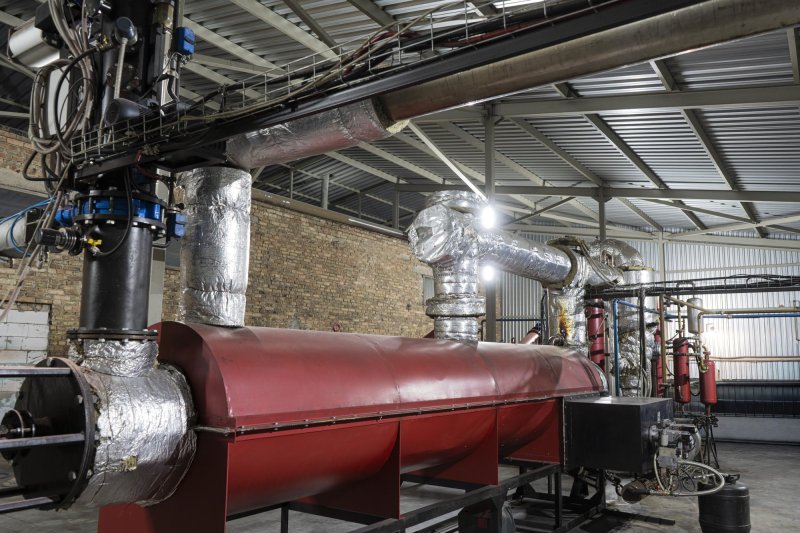

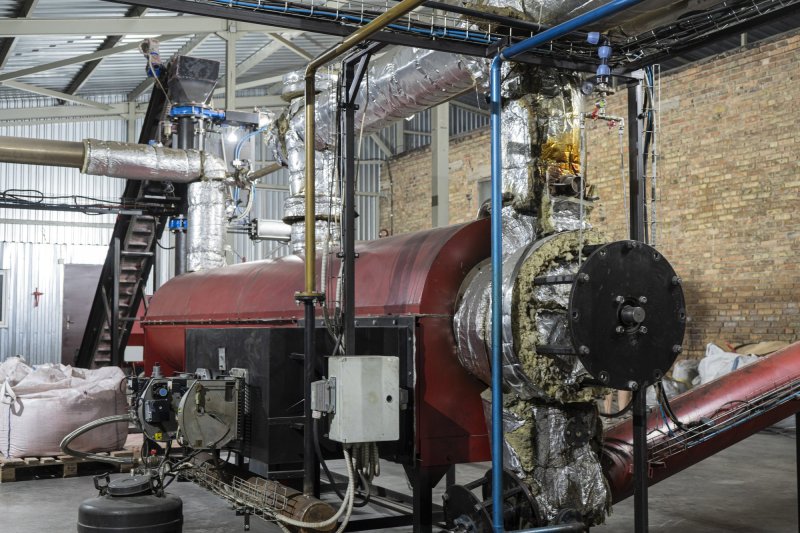

3. The reactor is heated through the wall by dilute flue gases, without contact with air. A metal rotor moves the material and improves heat exchange.

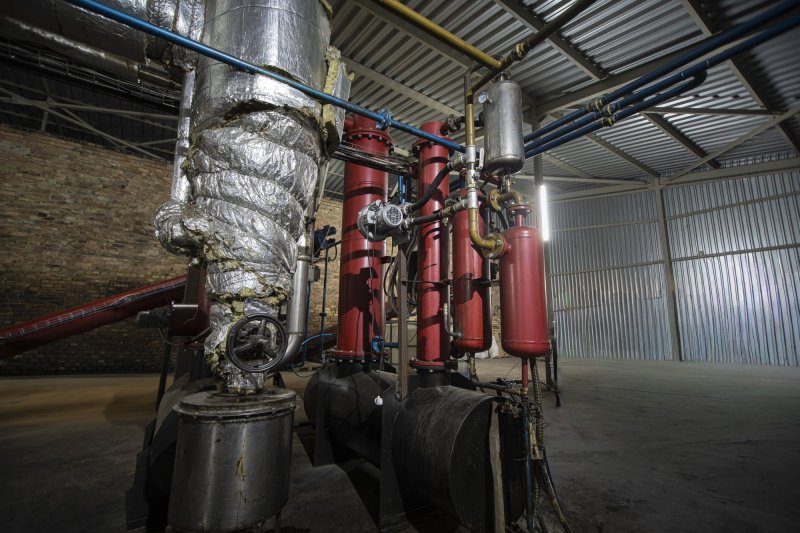

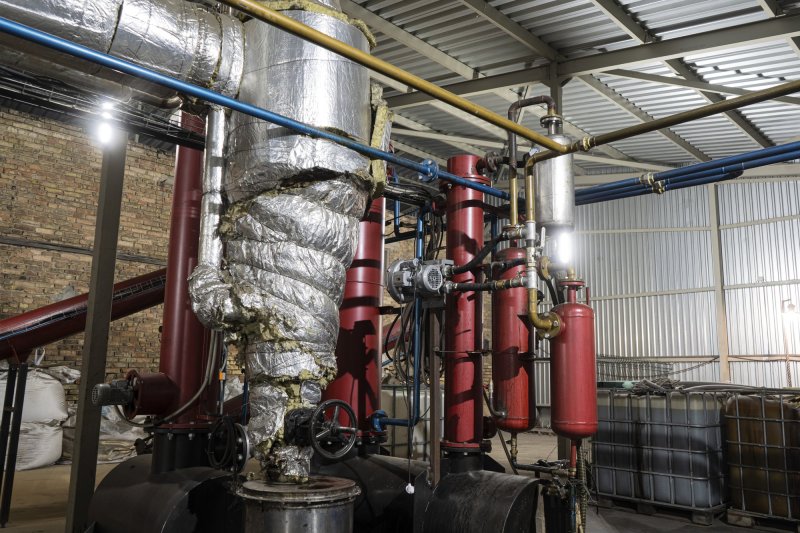

4. The pyrolysis gases are cooled and the liquid products separated in separate condensers.

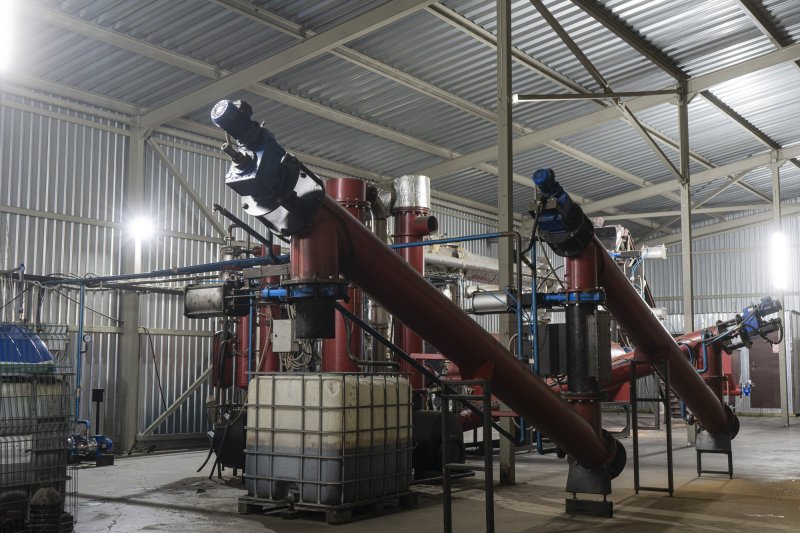

5. The carbon residue or biochar is discharged through a sluice and water-cooled augers.
6. The flue gases are purified, and the excess non-condensable gas is post-combusted.
Main Features
- Continuous industrial operation
- Oxygen-free heat treatment
- Automatic PLC control with instrumentation

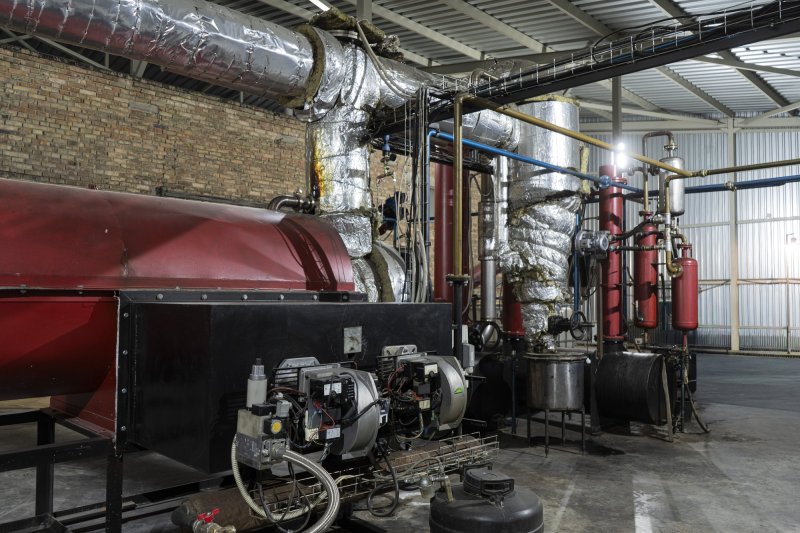

- Liquid-fuel and gas-fired heat generators
- Gas cooling and condensation, flue gas purification, excess gas post-combustion
- Complete technical documentation included
Condition: New, built in 2024. The plant has never been in production; only commissioning has been completed.
The plant can be viewed on-site in the Kyiv region by appointment. Price: EUR 200,000 EXW Ukraine, excluding VAT. Payment, delivery, and transfer of ownership to be agreed directly with the seller.
Contact: WhatsApp +380 50 312 27 19 (https://wa.me/380503122719). We also respond in English.
Technical Data
- Operating Mode: Continuous
- Year of Construction: 2024
- Condition: New (never in production, commissioning completed)
- Capacity, polymers and rubber: up to 150 kg/h
- Capacity, plant materials: up to 200 kg/h
- Yield: liquid products: 35–50%
- Yield: non-condensable gases: 5–15%
- Yield: carbon residue: 40–50%
- Max. temperature in the reactor vessel: 550 °C
- Max. pressure in the reactor vessel: 20 kPa
- Max. reactor filling level: 75% of total volume
- Max. Heating gas temperature at the reactor inlet: 750 °C
- Minimum heat generator thermal output: 75 kW
- Liquid fuel consumption of the generator (39,739 kJ/kg): up to 10 kg/h
- Maximum gas temperature at the exhaust fan inlet: 100 °C
- Installed electrical power: 12 kW
- Power supply: 380 V, 50 Hz
- Dimensions (L × W × H): 10,000 × 18,000 × 4,200 mm
- Total weight: max. 8 t
- Control: PLC
Scope of delivery
1. Dosing hopper with load cells, 1 pc.
2. Conveyor belt, 1 pc.
3. Loading sluice, 1 pc.
4. Reactor with heat generators, 1 pc.
5. Water-cooled carbon discharge screw, 3 pcs.
6. Carbon discharge sluice, 1 pcs.
7. Pyrolysis gas condensation system, 1 set
8. Flue gas purification system, 1 set
9. Excess gas post-combustion system, 1 set
10. PLC control system, instrumentation, cables and cable trays, 1 set
11. Documentation: installation, operation and maintenance manual, system certificate, component documents, 1 set
