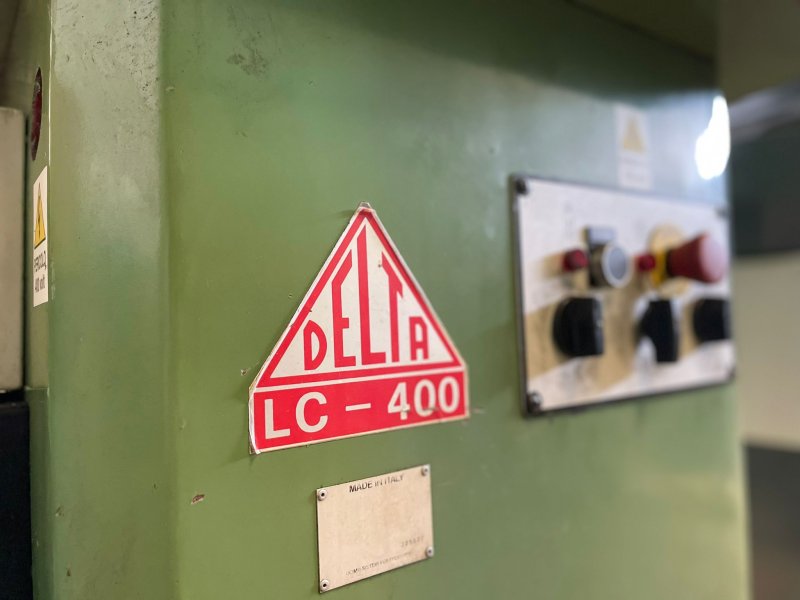

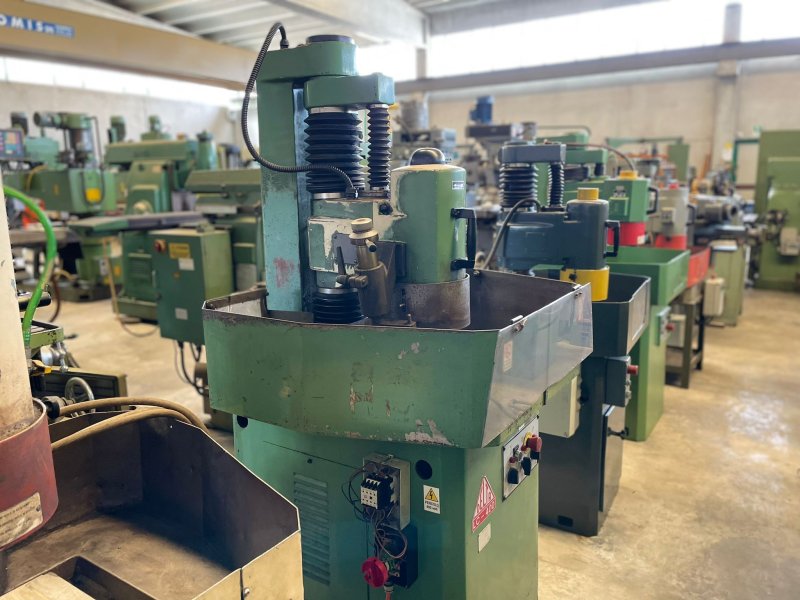

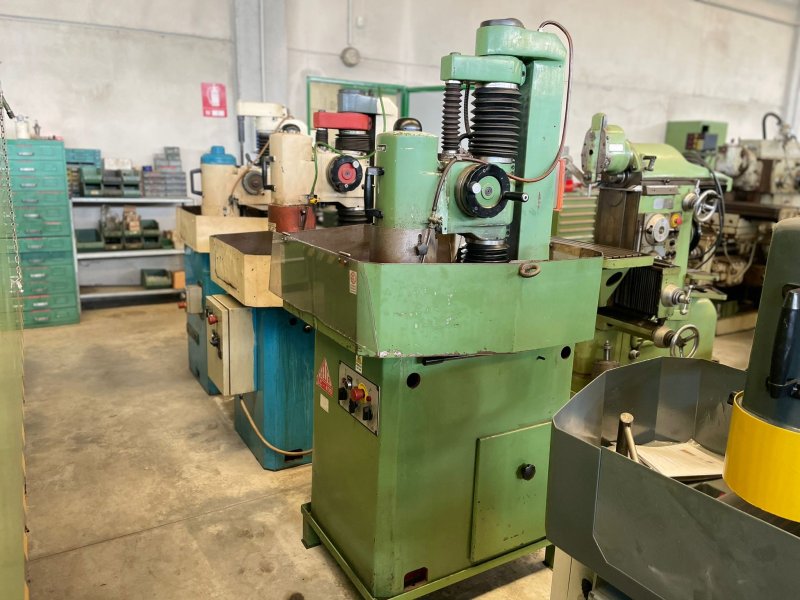

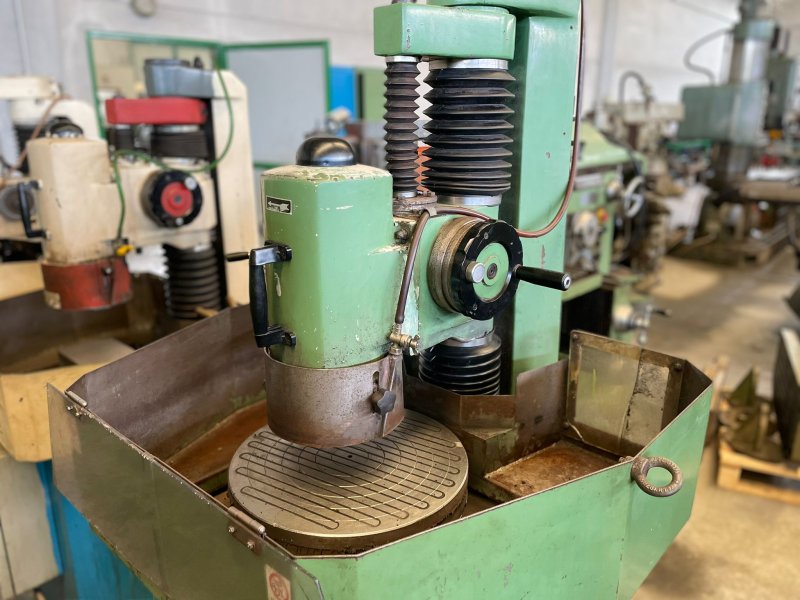

DELTA LC400
- Condition: used
- published: 30/10/2026
- 26IND49838
Technical data
- Condition: used
- Year: undefined
Description
Distance between column axis and grinding wheel axis: 315 mm

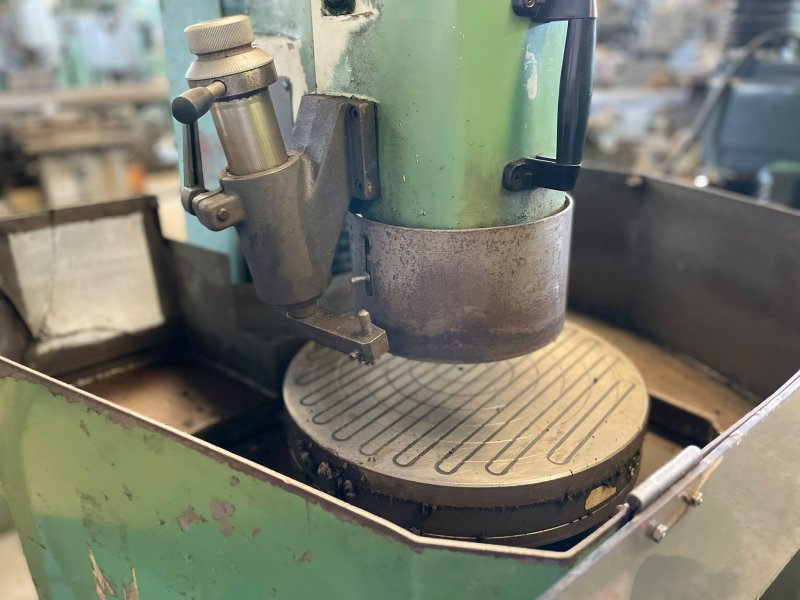

Maximum distance between magnetic chuck and grinding wheel: 205 mm
Maximum grinding surface: Ø 400 mm
Rapid feed per handwheel turn: 2 mm
...
Distance between column axis and grinding wheel axis: 315 mm
Maximum distance between magnetic chuck and grinding wheel: 205 mm
Maximum grinding surface: Ø 400 mm
Rapid feed per handwheel turn: 2 mm
Micrometric feeds via pawl: 0.01 mm
Cup grinding wheel dimensions: 200 x 80 x 78 mm
Abrasive segment dimensions: 200 x 80 x 78 mm 50x20x90
Grinding wheel revolutions per minute: 2840
Rotary table revolutions per minute: 20–40
Grinding wheel motor power: 3 kW
Rotary table motor power: 0.33–0.48 kW
Electric pump power: 0.06 (0.08) kW
Machine weight: 680 kg
Machine dimensions: 1050 x 950 x 1750 cm
Working
