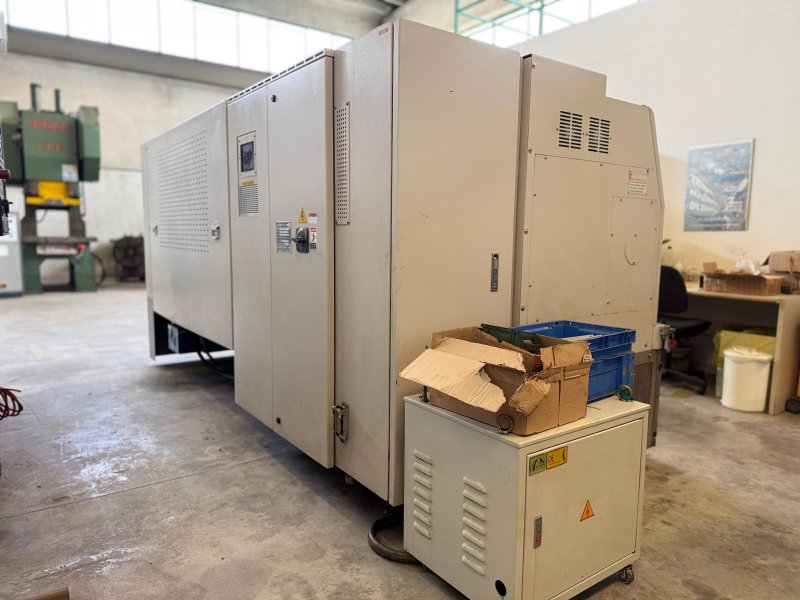

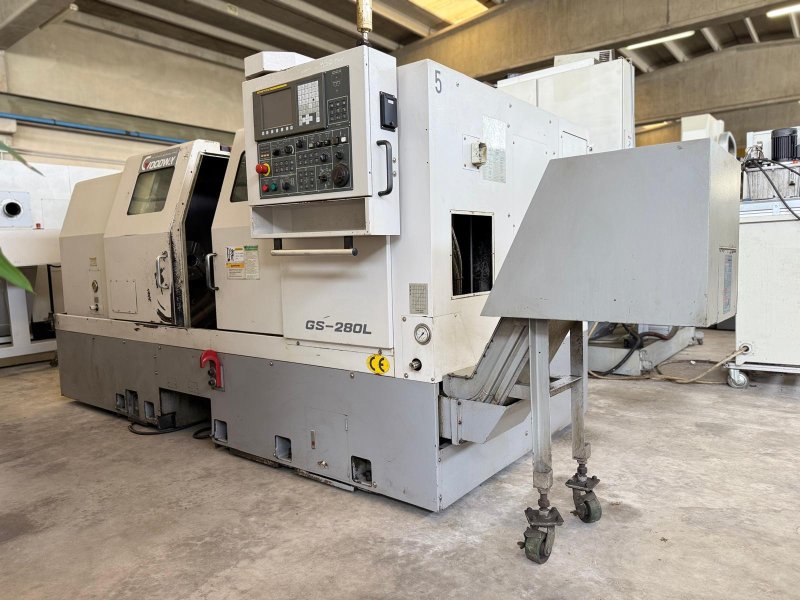

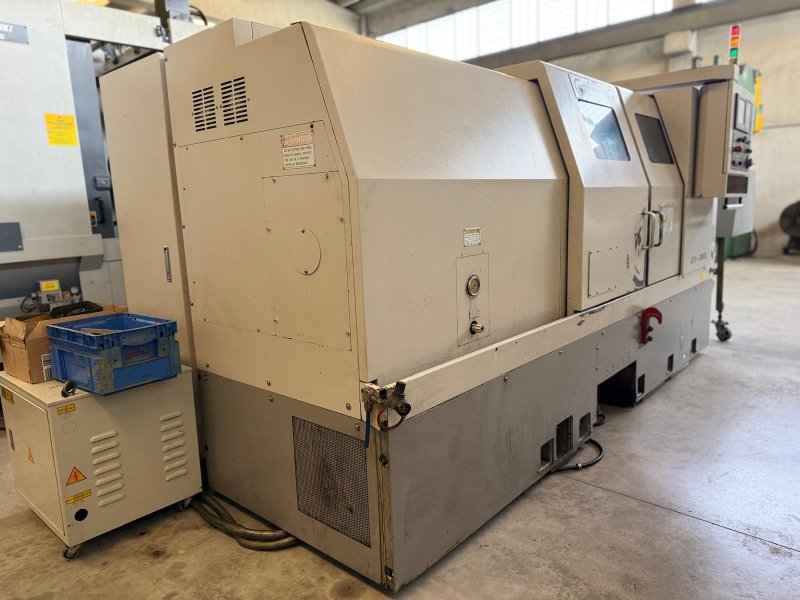

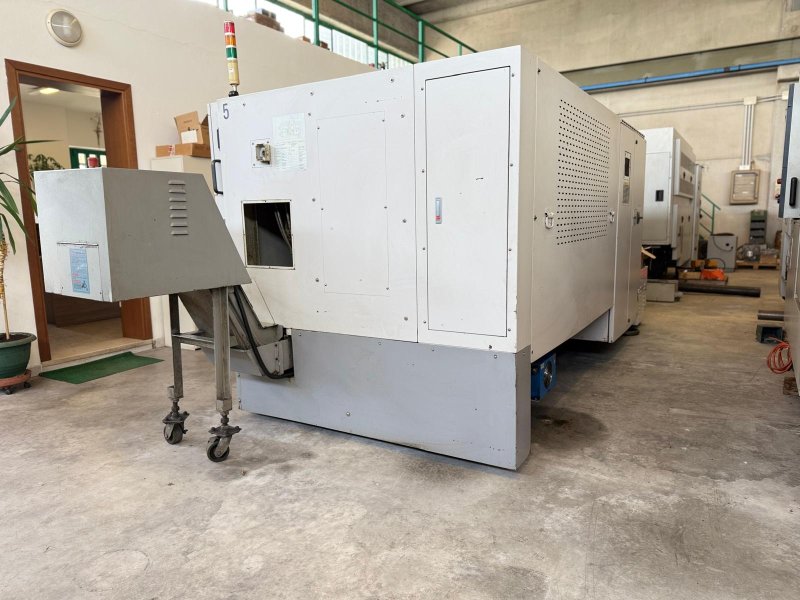

GOODWAY GS 280 L
- Condition: used
- published: 30/10/2026
- 26IND49879
Technical data
- Condition: used
- Year: undefined
Description
WORKING CAPACITY
Self-centering chuck diameter 250 mm
Maximum rotating diameter over the bed 590 mm
Maximum rotating diameter over the slide 490 mm
Maximum turning diameter 410 mm
Maximum turning leng ...
WORKING CAPACITY
Self-centering chuck diameter 250 mm
Maximum rotating diameter over the bed 590 mm
Maximum rotating diameter over the slide 490 mm
Maximum turning diameter 410 mm
Maximum turning length 650 mm
Maximum distance between spindle nose and turret face 418 mm
Minimum distance between spindle nose and turret face 118 mm
MAIN SPINDLE
Spindle motor (continuous/30 minutes) kW AC15
Maximum speed 6000 rpm
Spindle nose type A2-6
Bar passage 42 mm
SLIDE
X-axis motor 1 kW
Z-axis motor 1 kW
X-axis slide travel 237.5 mm
Z-axis slide travel 300 mm
X-axis slide rapid traverse m/min 20
Z-slide rapid traverse 30 m/min
TURRET
Turret type Drum
Number of stations 10
Tool dimensions (square) 25x25 mm
Tool dimensions (round) 40 mm
Positioning system Hydraulic motor
Positioning time for one station (approx.) 0.3 s
Positioning time for a 180-minute rotation 1 s
TAILSTOCK
Type Fixed
Distance between spindle nose and quill tip with quill fully retracted Min. 189 max. 450
Stub taper, rotating center MT-4
Stub stroke: 80 mm
Stub diameter: 70 mm
Tailstock stub sensor: Present
HYDRAULIC UNIT
Electric hydraulic pump kW 1.5
Tank capacity: 50 L
Pump flow rate: 50 Hz/60 Hz: 21/25 l/min
Pressure cut-off switch in case of electrical failure: Present
COOLING UNIT
Electric pump kW AC 0.34 (2-pole)
Tank capacity: 110 L
Flow rate: 50 Hz/60 Hz: 60/75 L
LUBRICATION UNIT
Electric pump W AC 220 V 4 W
Tank capacity: 2.0 L
Maximum pressure: Kg/cm² 3
MISCELLANEOUS – DIMENSIONS AND WEIGHT
Machine dimensions with chip conveyor: 3665 x 1610 x 1940 mm
Machine weight without tailstock: 3500 kg
Working
CE compliant
