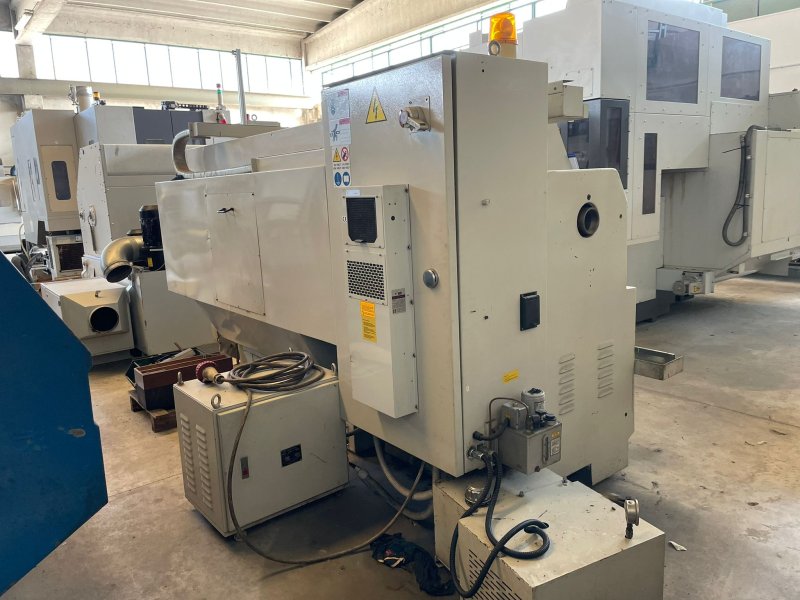

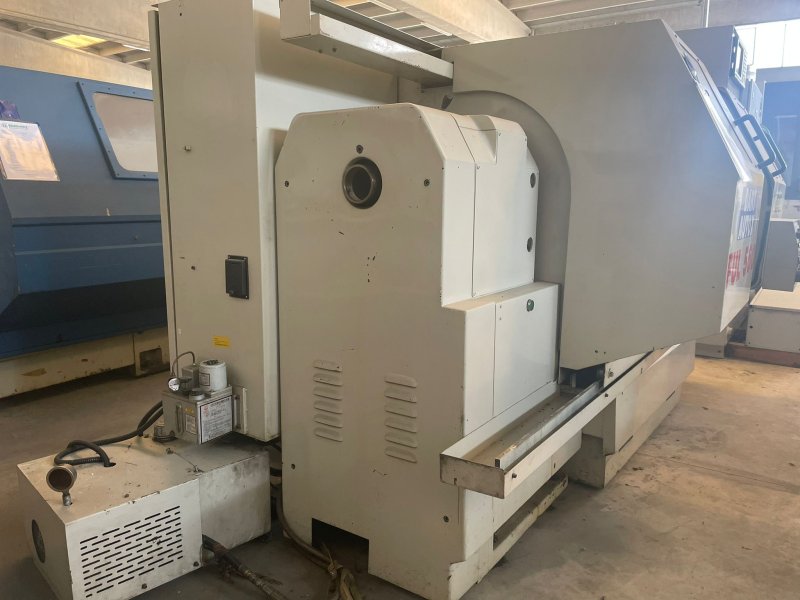

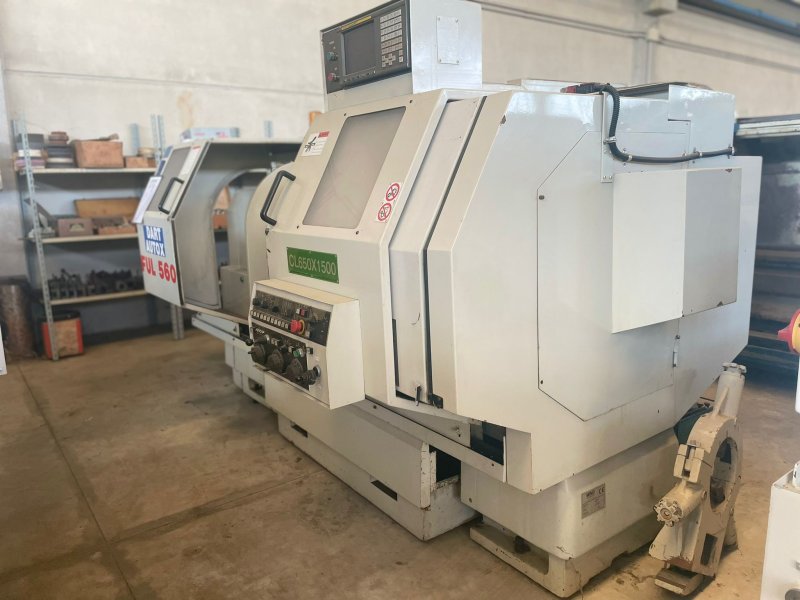

DART FUL 560-1500
- Condition: used
- published: 30/10/2026
- 26IND49891
Technical data
- Condition: used
- Year: undefined
Description

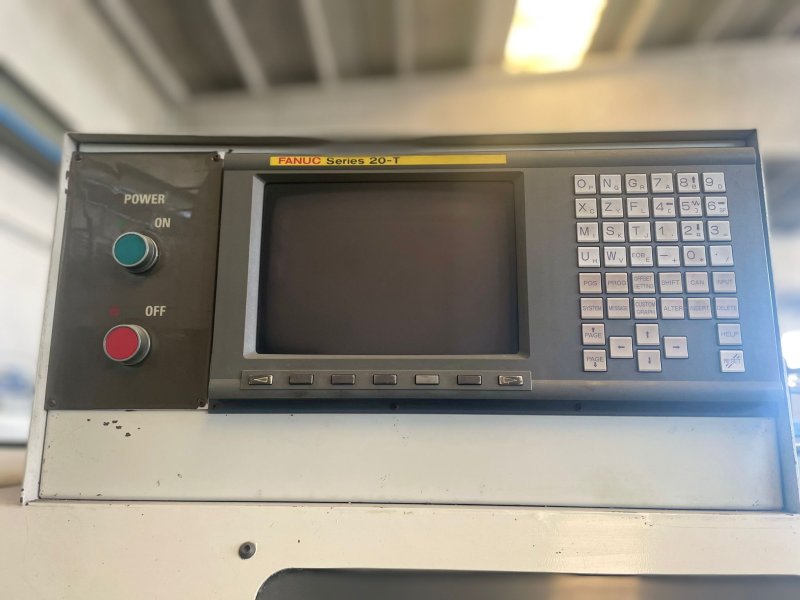

FANUC 20TA control
Height of centers above bed: 350 mm
Nominal distance between centers: 1500 mm
Bed width:
Permissible diameter above bed: 700 mm
Permissible diameter over slide: 495 mm
Longitudinal ...
FANUC 20TA control
Height of centers above bed: 350 mm
Nominal distance between centers: 1500 mm
Bed width:
Permissible diameter above bed: 700 mm
Permissible diameter over slide: 495 mm
Longitudinal Z-axis travel: 1500 mm
Transverse X-axis travel: 400 mm
Spindle power: 12 kW
Spindle bore: 85 mm
Manual quill stroke: 180 mm
Quilt diameter: 75 mm
Quilt Morse taper: 4
Total installed power: 18 kW
Power supply: 380 V - 50 Hz
Machine weight: 3050 kg
SUPPLIED ACCESSORIES
Double-guided chuck, ø 310 mm, 3+3+3 jaws
Steady rest
4-position electric turret
Working
