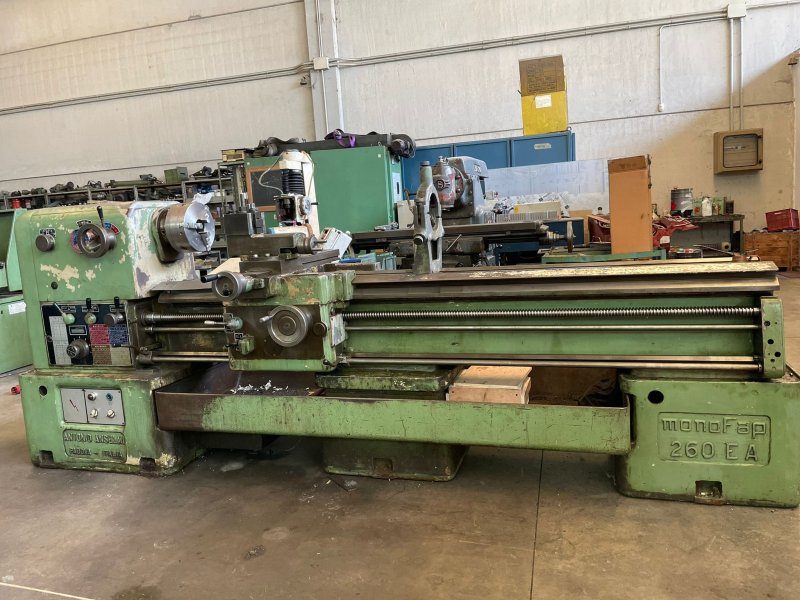

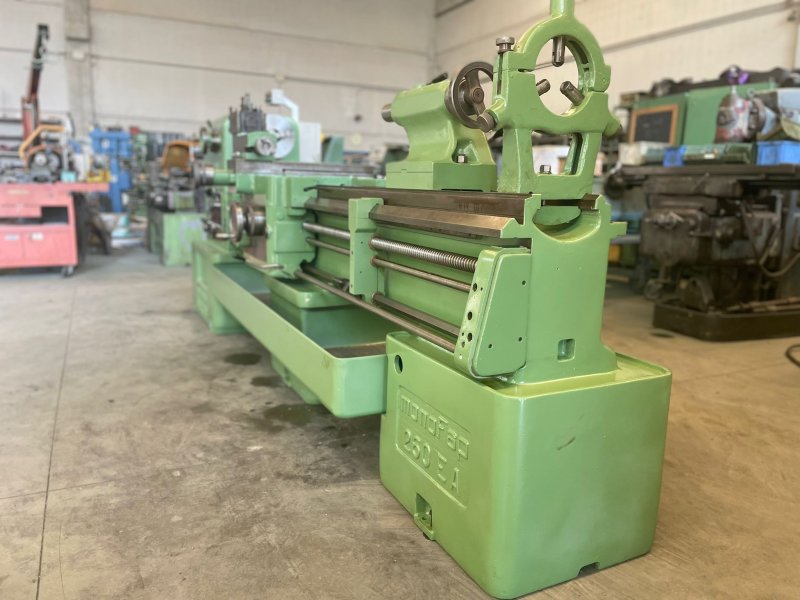

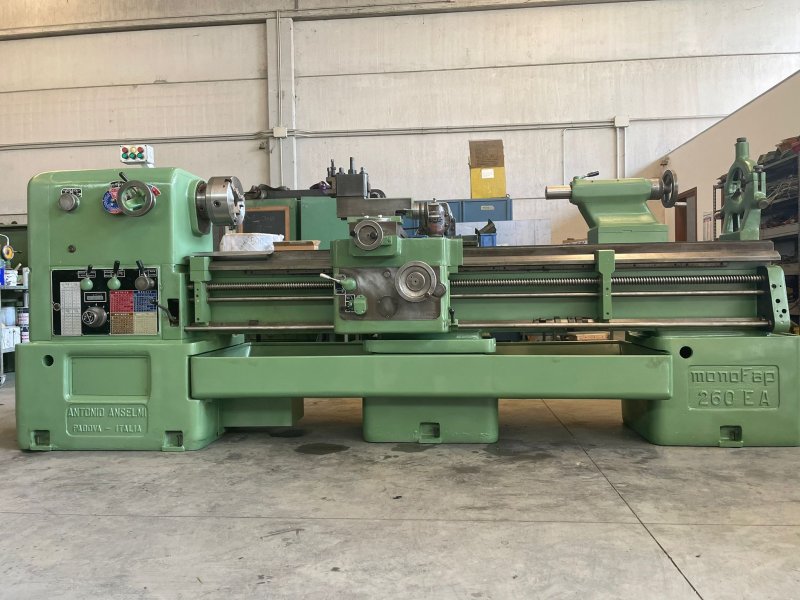

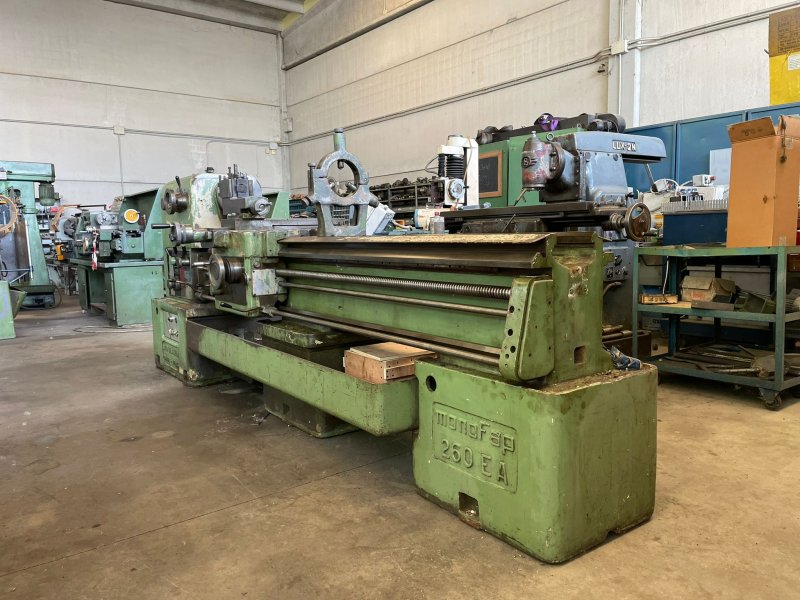

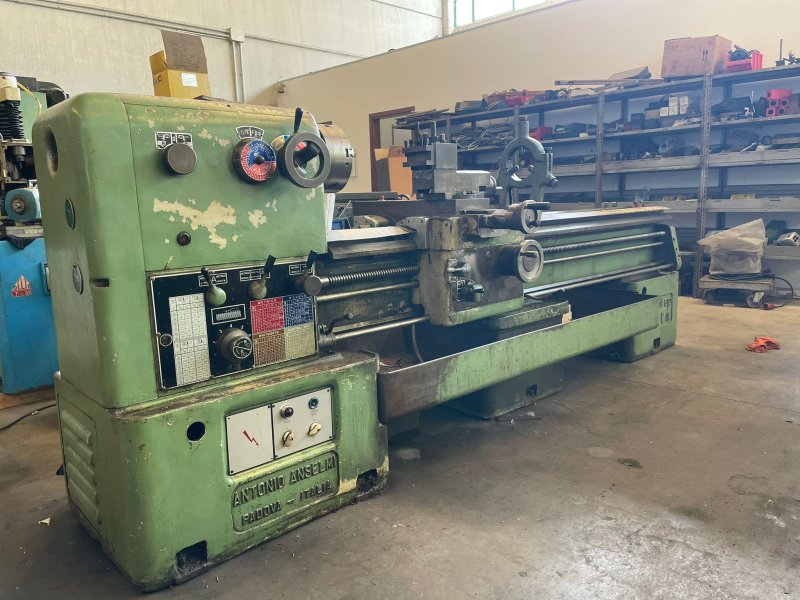

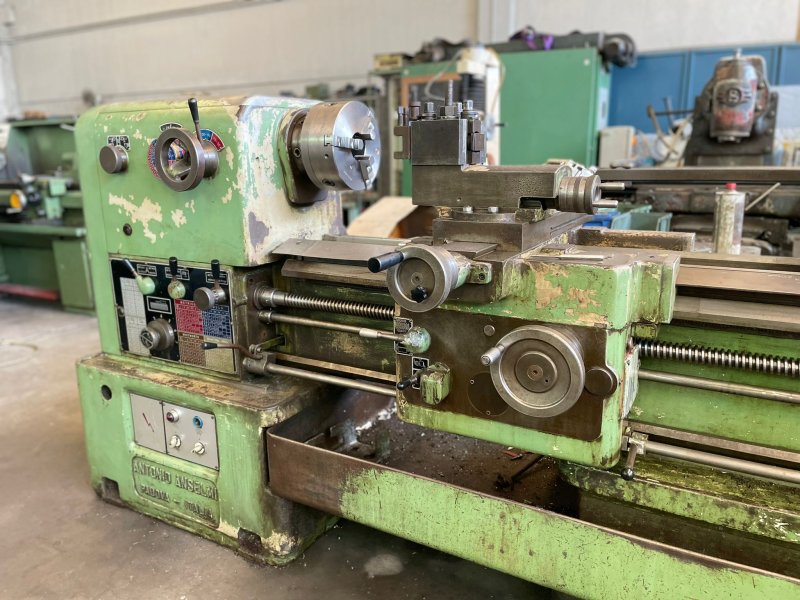

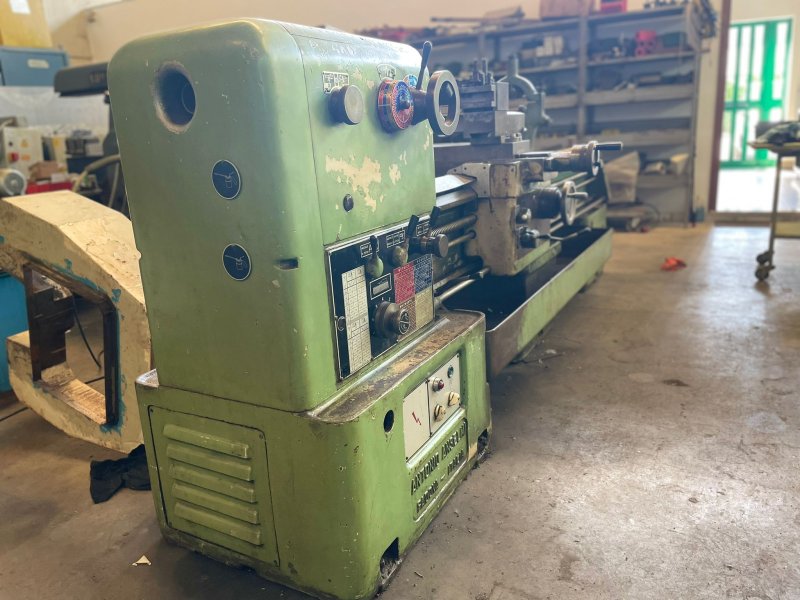

ANSELMI -
- Condition: used
- published: 30/10/2026
- 26IND49892
Technical data
- Condition: used
- Year: undefined
Description
Features
Height of centers above bed: 260 mm
Distance between centers: 2000 mm
Bar passage: 52 mm
Spindle nose: Cam Lock
Maximum diameter allowed above bed: 520 mm
Maximum diameter allowed over slide: ...
Features
Height of centers above bed: 260 mm
Distance between centers: 2000 mm
Bar passage: 52 mm
Spindle nose: Cam Lock
Maximum diameter allowed above bed: 520 mm
Maximum diameter allowed over slide: 330 mm
Bed width: 380 mm
Maximum turning diameter in the pocket: 720 mm
Admissible steady rest diameter: 125 mm
Tailstock quill diameter: 65 mm
Quilt stroke: 240 mm
Tailstock taper: 3 mm
Spindle speed range: 34-1400 rpm
Covered guides
NEW chuck: ø250 mm, 3+3 jaws
Steady rest
Working
