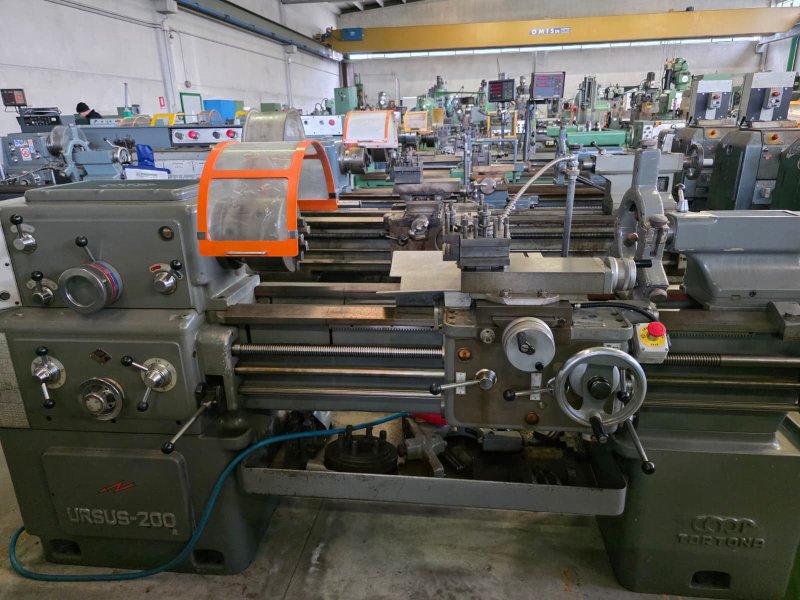

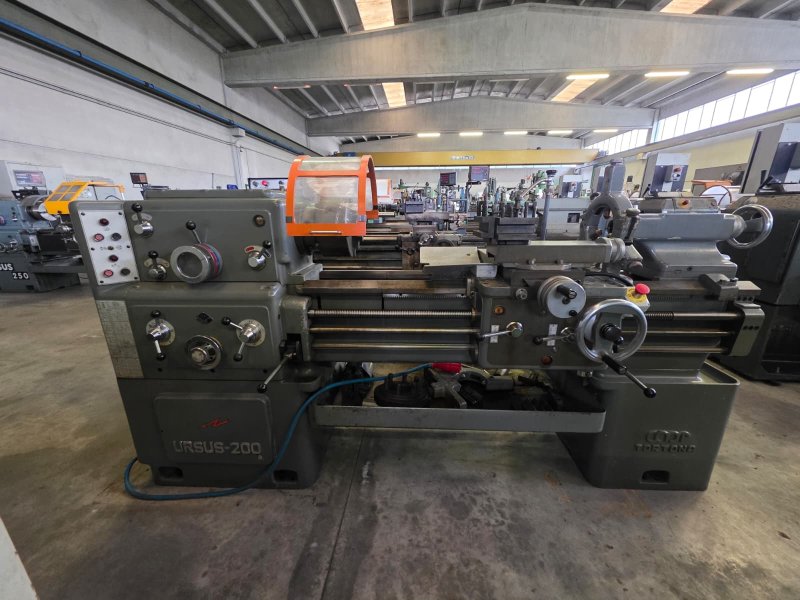

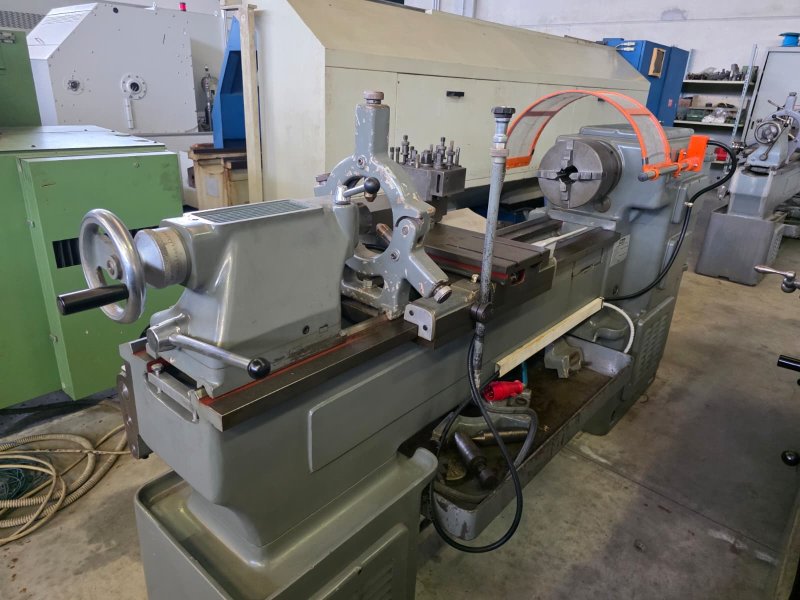

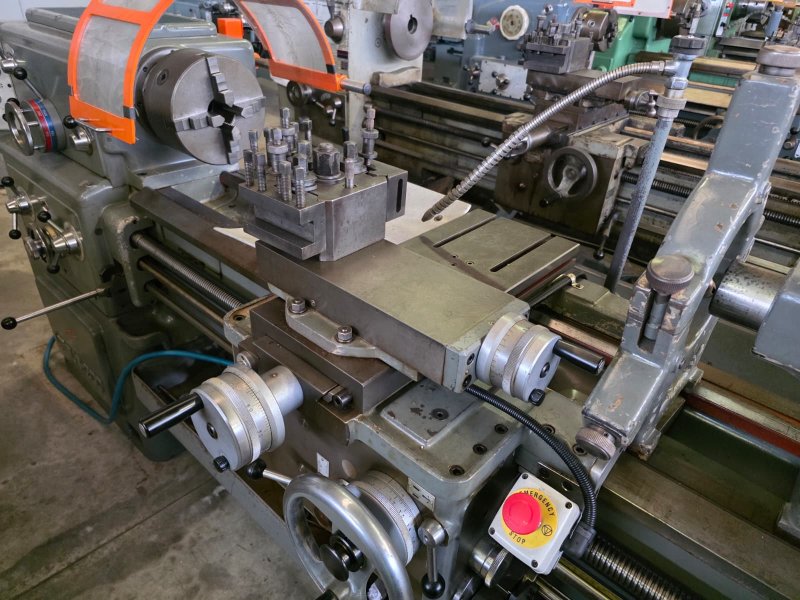

CMT ursus 200 x 1000
- Condition: used
- published: 30/10/2026
- 26IND49894
Technical data
- Condition: used
- Year: undefined
Description
Center height above bed: 200 mm
Nominal distance between centers: 1000 mm
Spindle bore: 52 mm
Spindle nose: CL 6"
Spindle reduction bushing: Morse taper no. 5 MK5
Maximum diameter allowed above bed: 4 ...
Center height above bed: 200 mm
Nominal distance between centers: 1000 mm
Spindle bore: 52 mm
Spindle nose: CL 6"
Spindle reduction bushing: Morse taper no. 5 MK5
Maximum diameter allowed above bed: 410 mm
Maximum turning diameter on carriage: 220 mm
Cross slide travel: 235 mm
Tool carriage travel: 170 mm
Bed width: 330 mm
Cross slide width: 250 mm
Maximum turning diameter in the cavity: 610 mm
Maximum fixed steady rest diameter: 10-155 mm
Maximum steady rest diameter: 10-95 mm
Tailstock quill diameter: 68 mm
Quilt travel: 200 mm
Tailstock taper: Morse taper no. 5 MK5
Standard motor power 5.5 kW
Spindle speed 16
Standard spindle speed range 35-1500 rpm
Working feed without gear change 28
Longitudinal feeds 0.06 to 0.84
Cross feeds 0.03 to 0.42
Metric pitches/modulus pitches 0.5 to 28/0.25 to 14

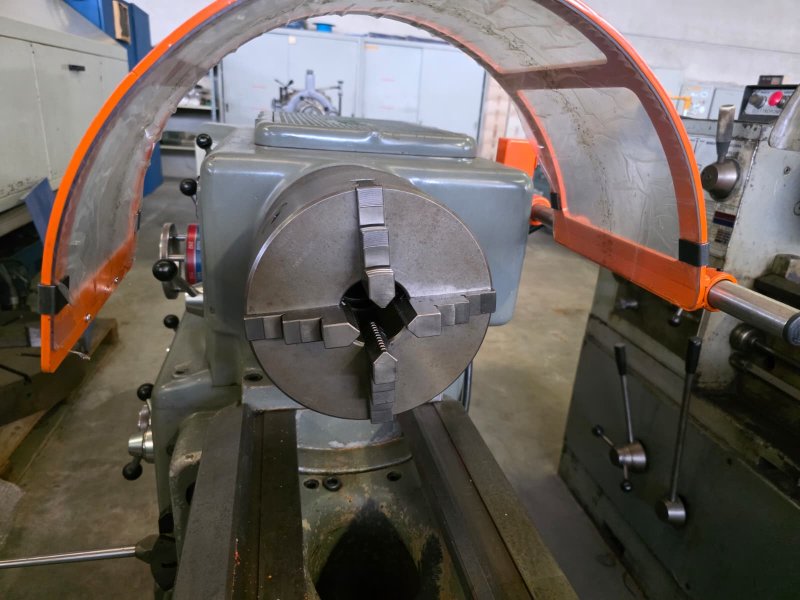

Diameter 230 mm Mario Pinto double-guided chuck with 3+3+3 jaws

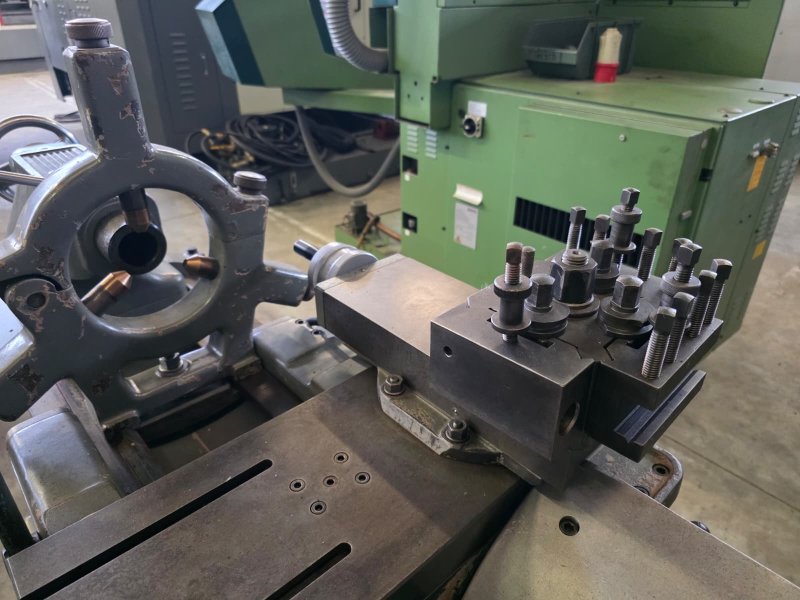

Rapid Type "B" tool holder with 5 tool holders
Closed steady rest
Open steady rest

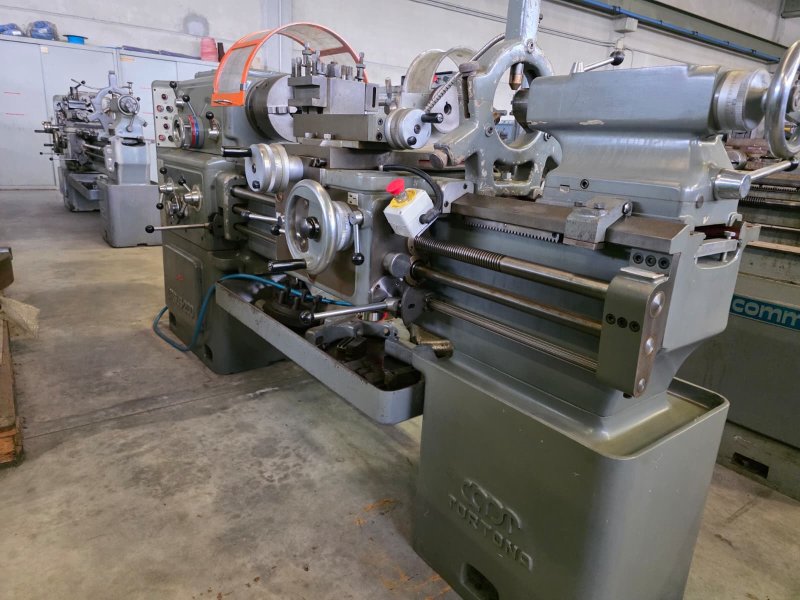

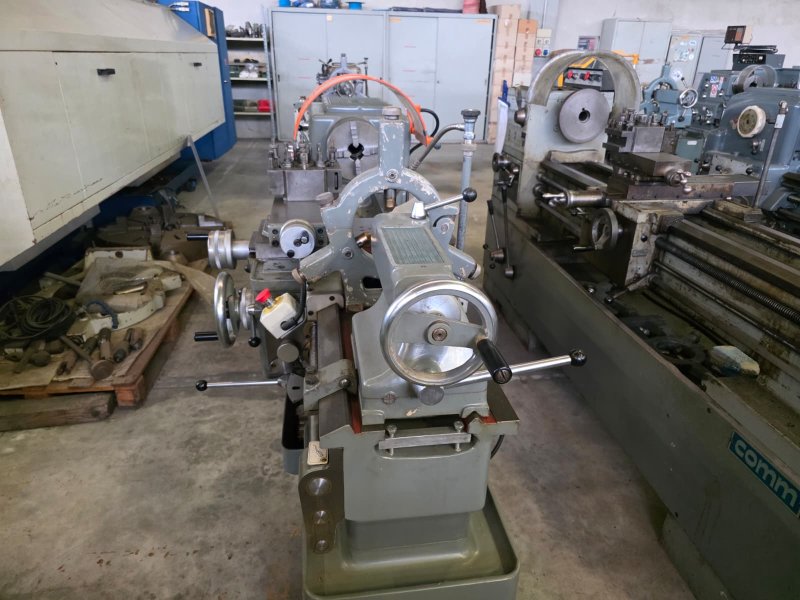

Tailstock

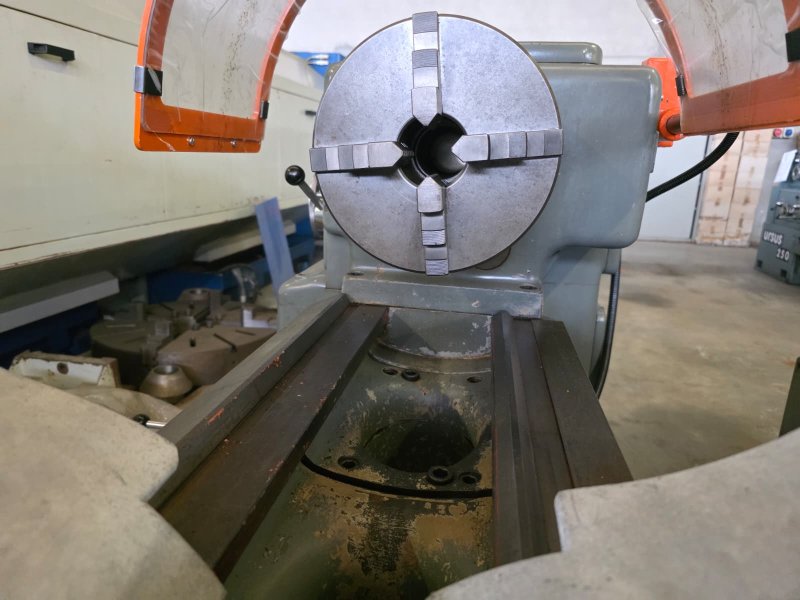

4-jaw chuck, diameter 350 mm
Working
