CMT ursus 250
- Condition: used
- published: 30/10/2026
- 26IND49895
Technical data
- Condition: used
- Year: undefined
Description

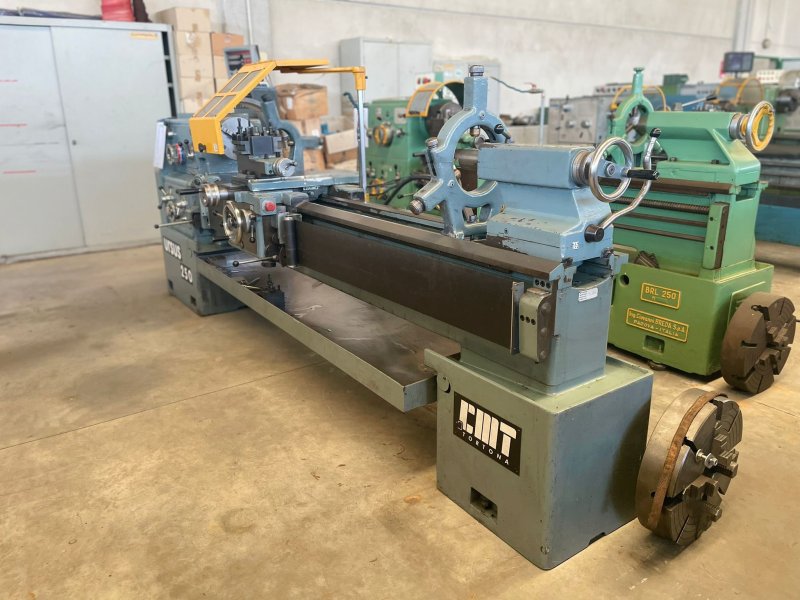

CMT URSUS 250 LATHE - LATEST SERIES
Height of centers above bed: 250 mm
Distance between centers: 2000 mm
Bar passage: 52 mm
Spindle nose: CL 8"
Spindle reduction bushing: CM 5
Maximum diameter allowe ...
CMT URSUS 250 LATHE - LATEST SERIES
Height of centers above bed: 250 mm
Distance between centers: 2000 mm
Bar passage: 52 mm
Spindle nose: CL 8"
Spindle reduction bushing: CM 5
Maximum diameter allowed on bed: 550 mm
Maximum turning diameter on carriage: 290 mm
Cross slide travel: 270 mm
Tool carriage travel: 170 mm
Bed width: 330 mm
Neck width: 250 mm
Maximum turning diameter in the notch: 710 mm
Permitted steady rest diameter: 10 to 185 mm
Permitted steady rest diameter: 10 to 114 mm
Sub-tail quill diameter: 68 mm
Quilt travel: 200 mm
Taper CM 5 tailstock
Main motor power: 7.5 kW
Maximum installed power: 18 kW
Spindle speed: 16
Spindle speed range: 23 to 1000 rpm
OMAP TRIBLOK double-guide self-centering chuck, diam. 250 mm, 3+3+3 jaws

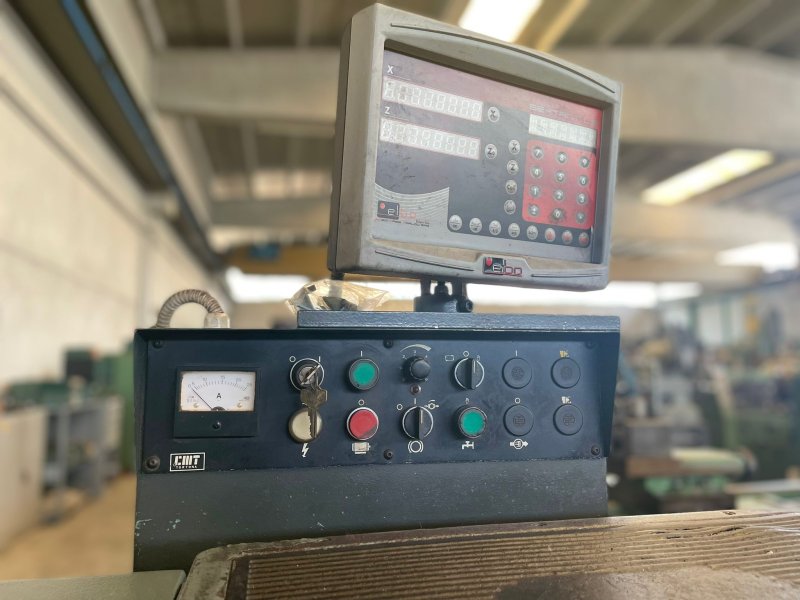

ELBO dual-axis readout
Rear sheet metal guard for chip collection
Working
