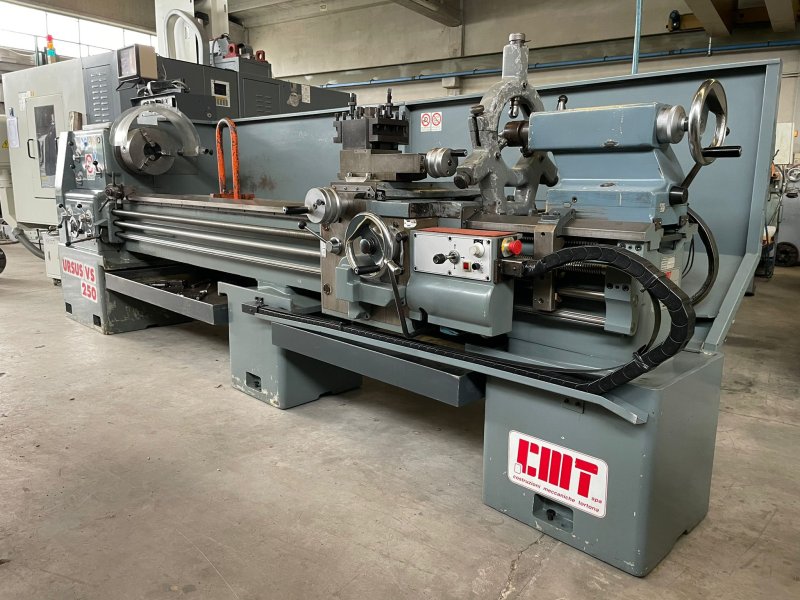

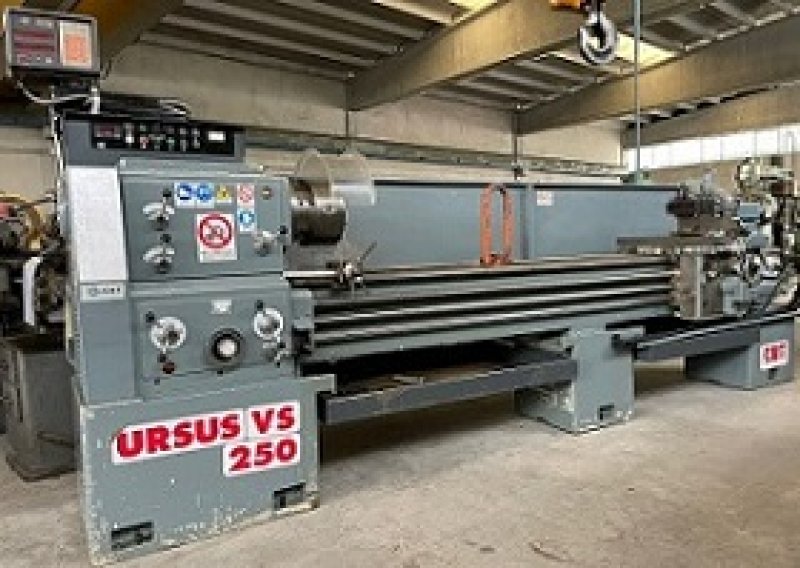

CMT URSUS VS 250/2500
- Condition: used
- published: 30/10/2026
- 26IND49897
Technical data
- Condition: used
- Year: undefined
Description
Center height above bed 250 mm
Nominal distance between centers 2500 mm
Spindle bore 105 mm
Spindle nose CL 8"
Spindle reduction bushing Morse taper No. 5 MK5
Maximum diameter allowed over bed 505 mm
...
Center height above bed 250 mm
Nominal distance between centers 2500 mm
Spindle bore 105 mm
Spindle nose CL 8"
Spindle reduction bushing Morse taper No. 5 MK5
Maximum diameter allowed over bed 505 mm
Maximum turning diameter over carriage 290 mm
Cross slide travel 270 mm
Tool carriage travel 170 mm
Bed width 330 mm
Maximum fixed steady rest diameter 10-185 mm
Maximum steady rest diameter 10-114 mm
Tailstock quill diameter 68 mm
Quilt travel 200 mm
Tailstock taper Morse taper No. 5 MK5
Motor power 7.5 kW
Spindle speed Continuously variable 2 ranges
Standard spindle speed range rpm 35-1500
Working feed without gear change: 28
Longitudinal feeds: From 0.06 to 0.84
Cross feeds: From 0.03 to 0.42
Metric pitches/modulus pitches: From 0.5 to 28/from 0.25 to 14
Whitworth pitches/diametric pitches: From 1 to 56/from 2 to 112

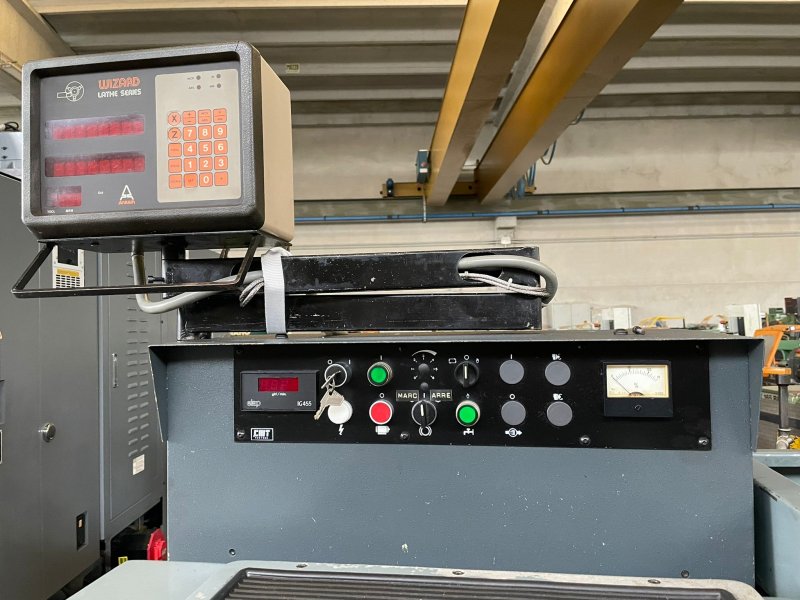

Anilam Wizard display

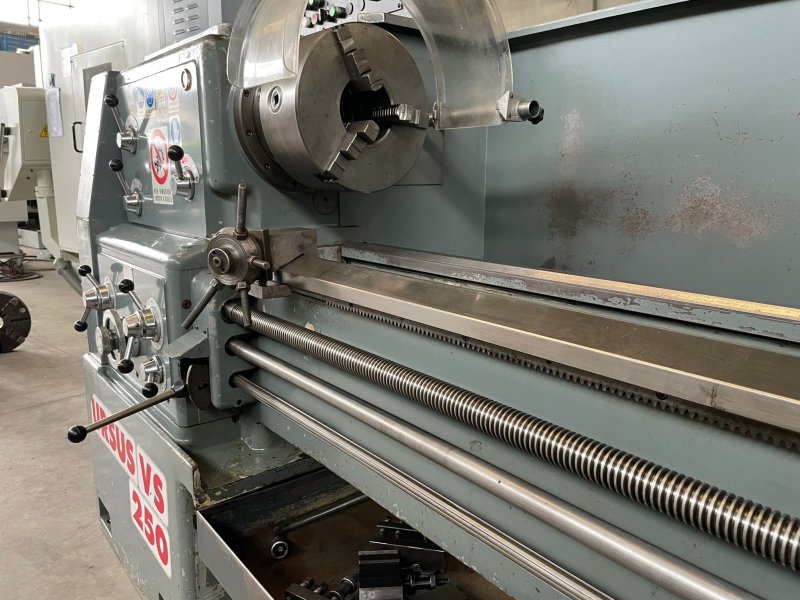

Double-guided chuck, ø270 mm, Mario Pinto, 3+3+3 jaws
Star stop

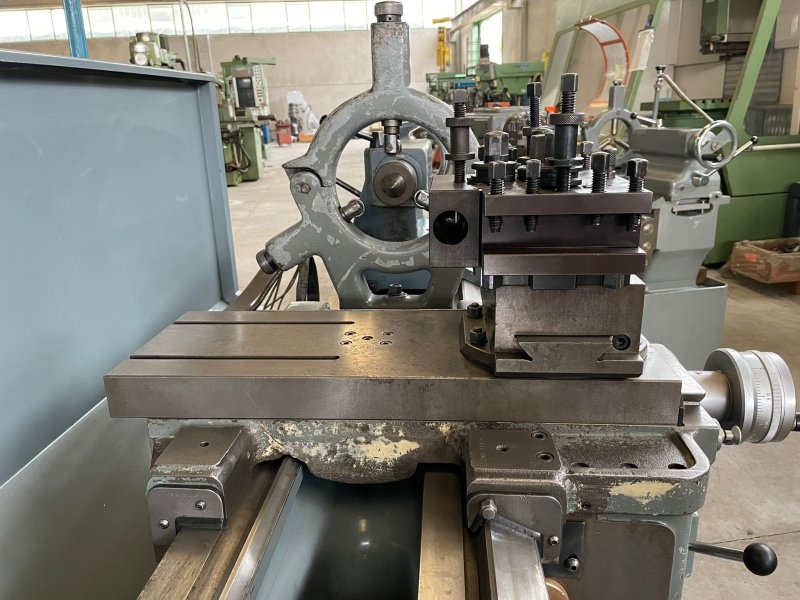

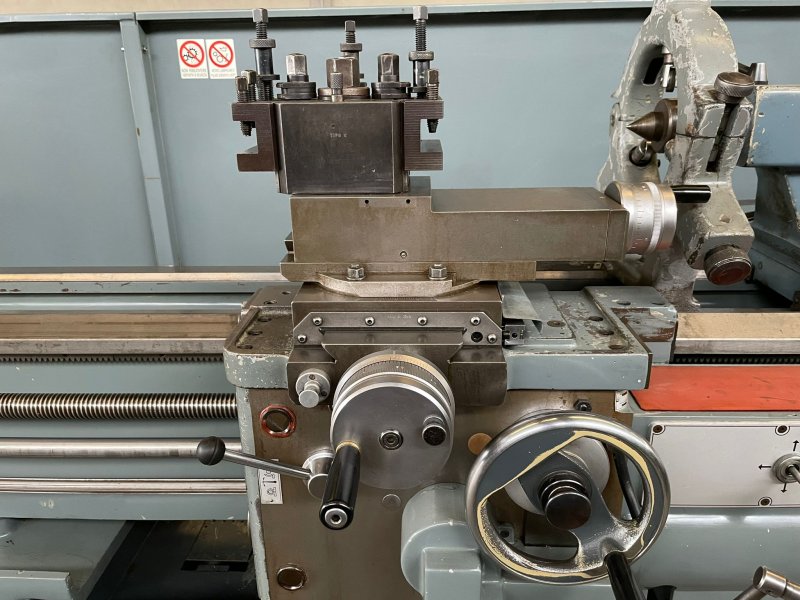

Rapid type "C" tool holder with 6 tool holders
Closed steady rest
Tailstock

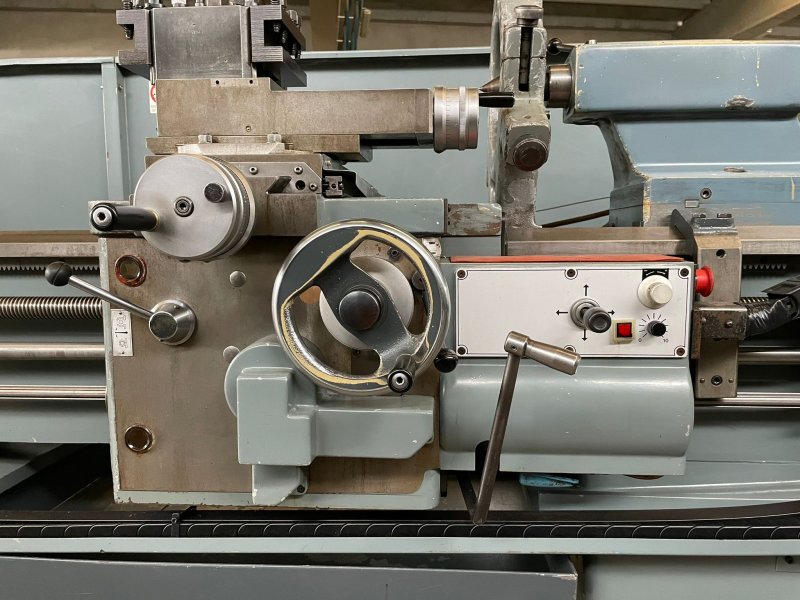

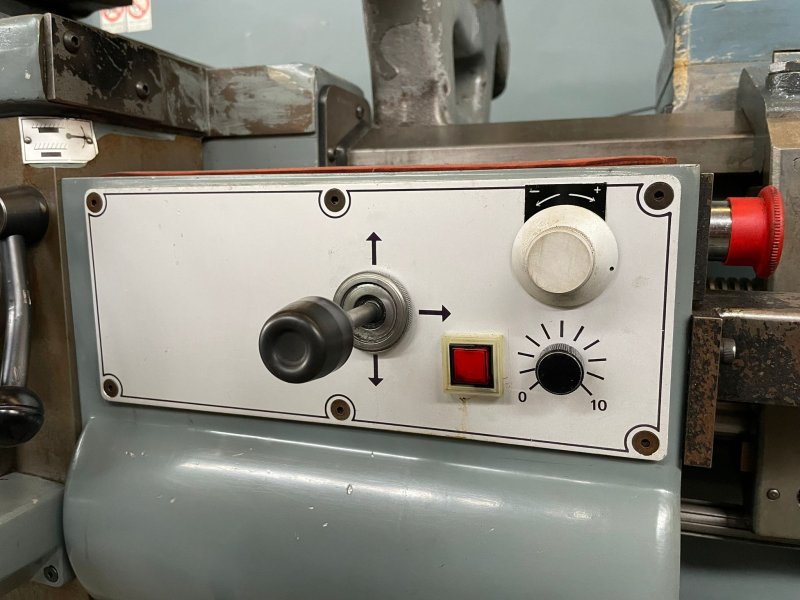

Rapid on carriage and slide
"VS" model with continuously variable speed drive, max. 2000 rpm
Protection rear for chip containment
Working
