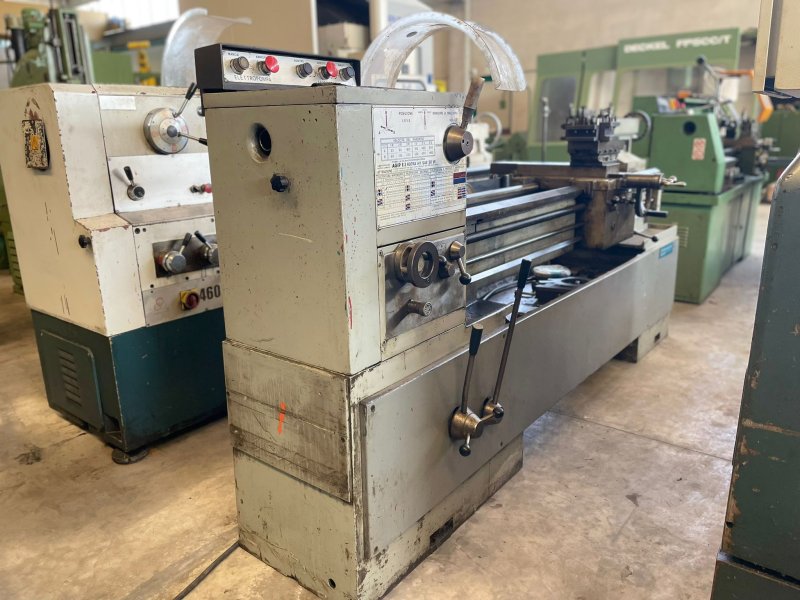

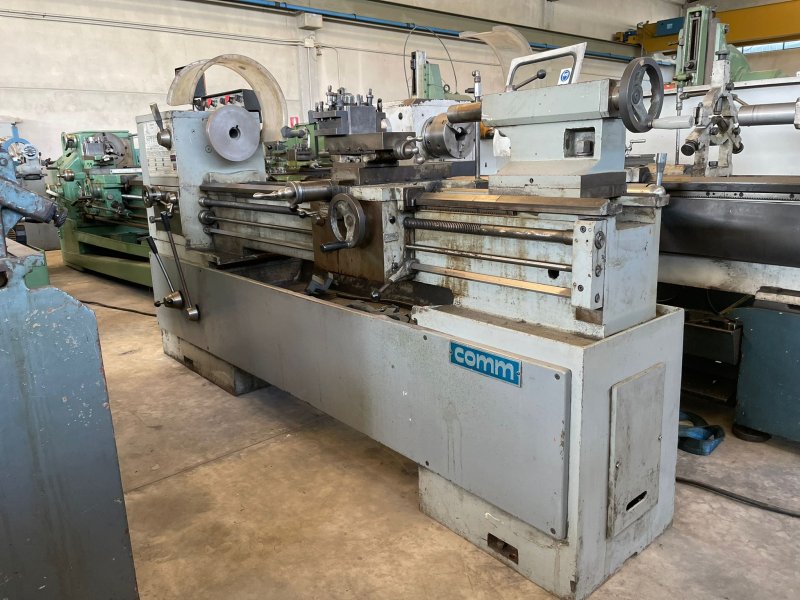

COMM 230
- Condition: used
- published: 30/10/2026
- 26IND49899
Technical data
- Condition: used
- Year: undefined
Description
Features
Height of centers above bed 230 mm
Distance between centers 1500 mm
Bar passage 42 mm
Spindle nose Flange connection
Maximum diameter allowed above bed 460 mm
Maximum diameter allowed over sl ...
Features
Height of centers above bed 230 mm
Distance between centers 1500 mm
Bar passage 42 mm
Spindle nose Flange connection
Maximum diameter allowed above bed 460 mm
Maximum diameter allowed over slide 280 mm
Bed width 305 mm
Maximum turning diameter in the notch 660 mm
Permitted steady rest diameter 100 mm
Permitted steady rest diameter 60 mm
Tailstock quill diameter 52 mm
Quilt stroke 170 mm
Tailstock taper 3 mm
Spindle speed range 33-1400 rpm
TRIBLOC 3+3+3-jaw chuck
Floating steady rest
Working
