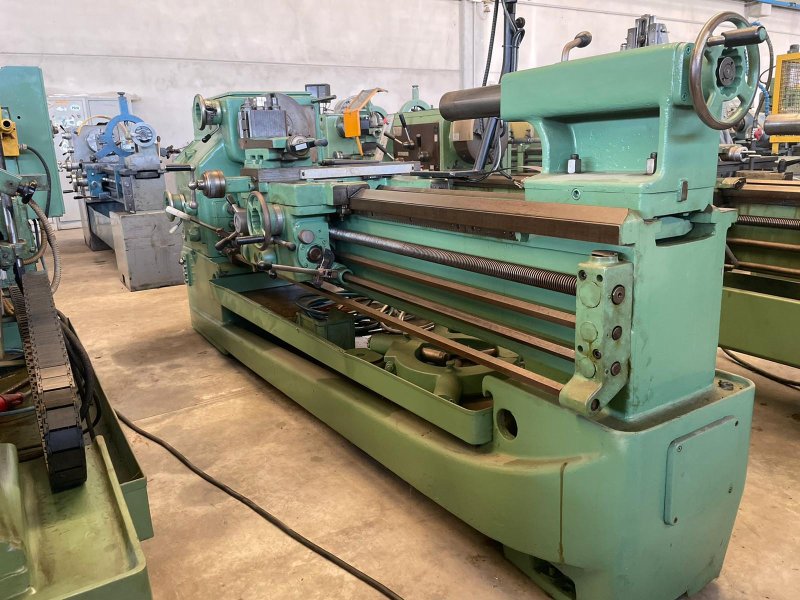

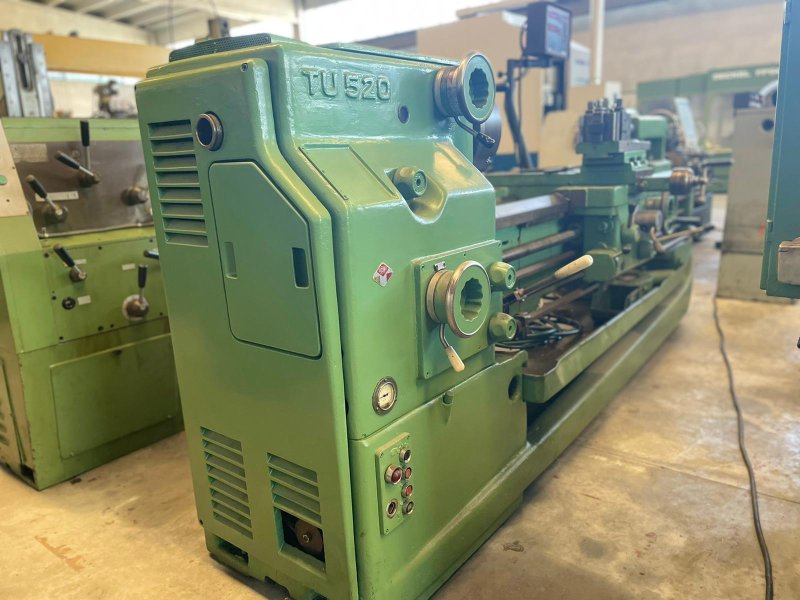

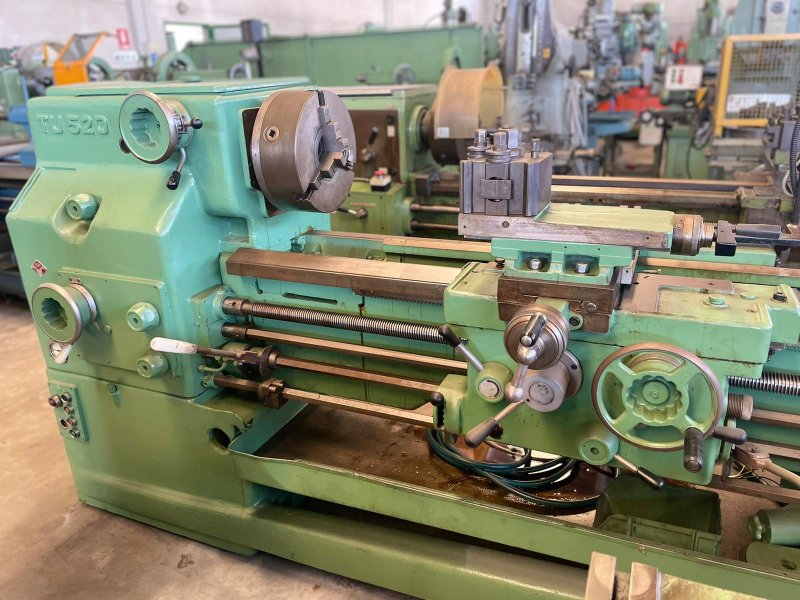

TOVAGLIERI tu 520
- Condition: used
- published: 30/10/2026
- 26IND49907
Technical data
- Condition: used
- Year: undefined
Description
Features
Height of centers above bed: 260 mm
Distance between centers: 1500 mm
Bar passage: 52 mm
Spindle nose: Flange connection
Maximum diameter allowed above bed: 520 mm
Maximum diameter allowed ab ...
Features
Height of centers above bed: 260 mm
Distance between centers: 1500 mm
Bar passage: 52 mm
Spindle nose: Flange connection
Maximum diameter allowed above bed: 520 mm
Maximum diameter allowed above carriage: 300 mm
Cross slide travel: 230 mm
Tool carriage travel: 150 mm
Bed width: 375 mm
Maximum turning diameter in the notch: 660 mm
Admissible steady rest diameter: 210 mm
Stemstock quill diameter: 80 mm
Quilt travel: 275 mm
Tailstock taper: 5 mm
Spindle speed range: 52-1600 rpm
MARIO PINTO double-guide spindle, Ø 310 mm
Steady rest

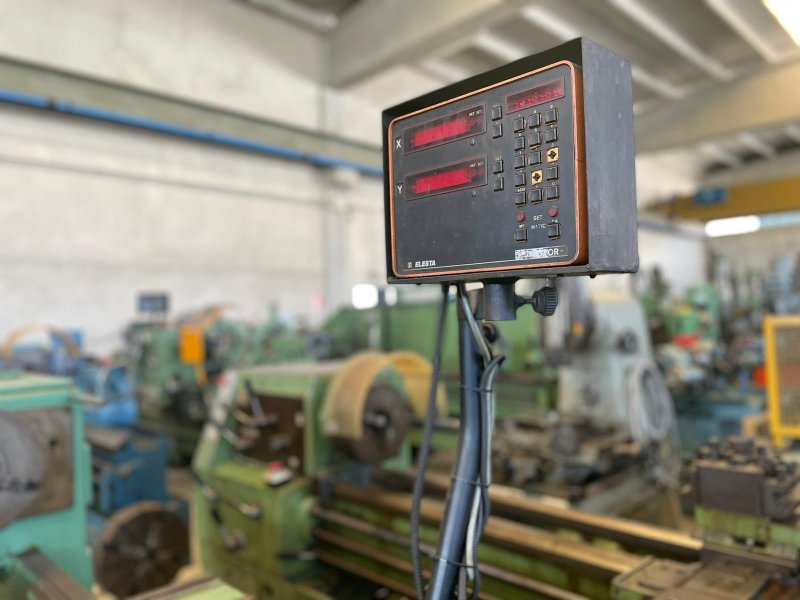

2-axis digital readout
Working
