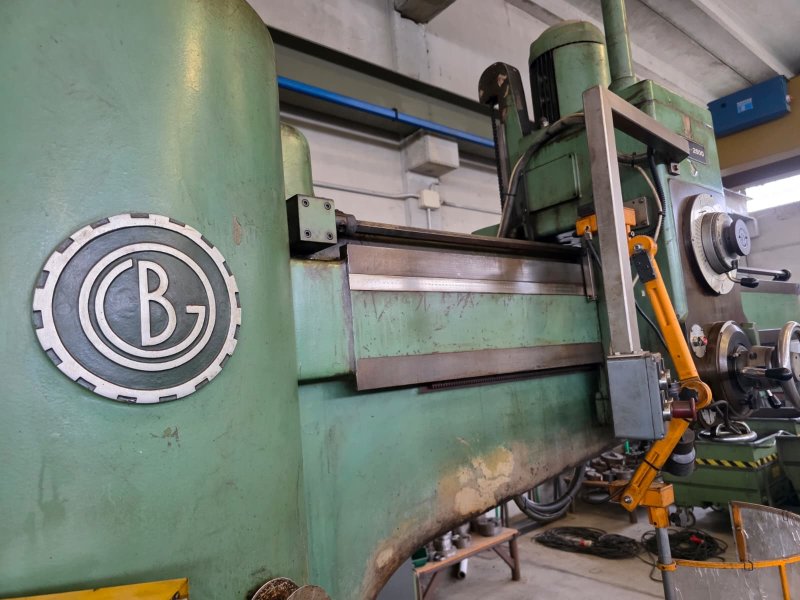

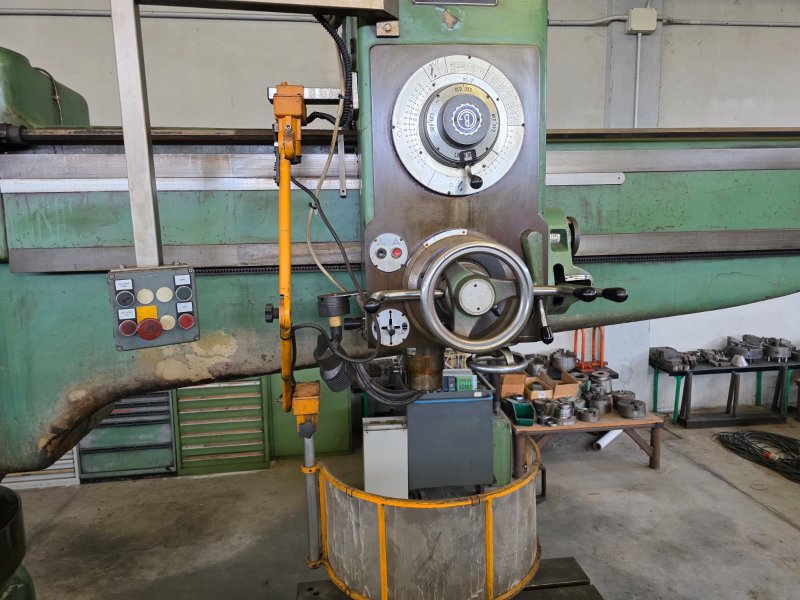

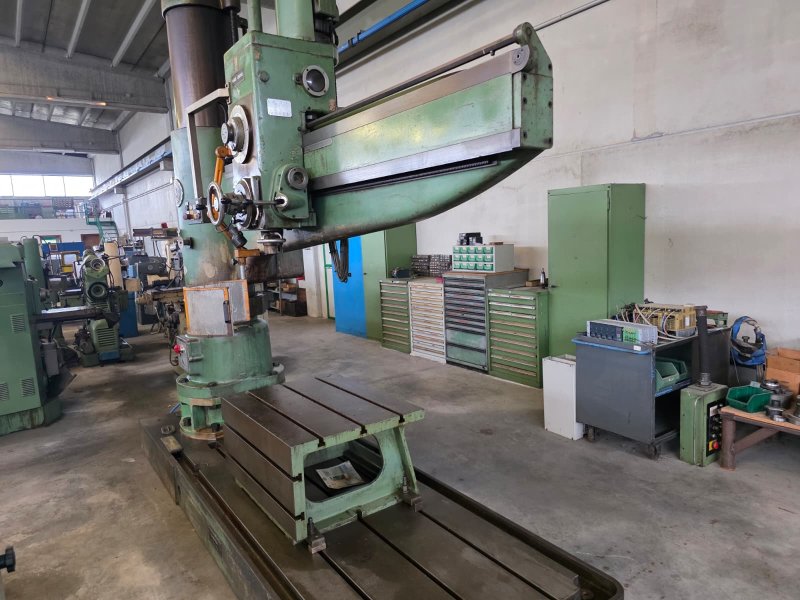

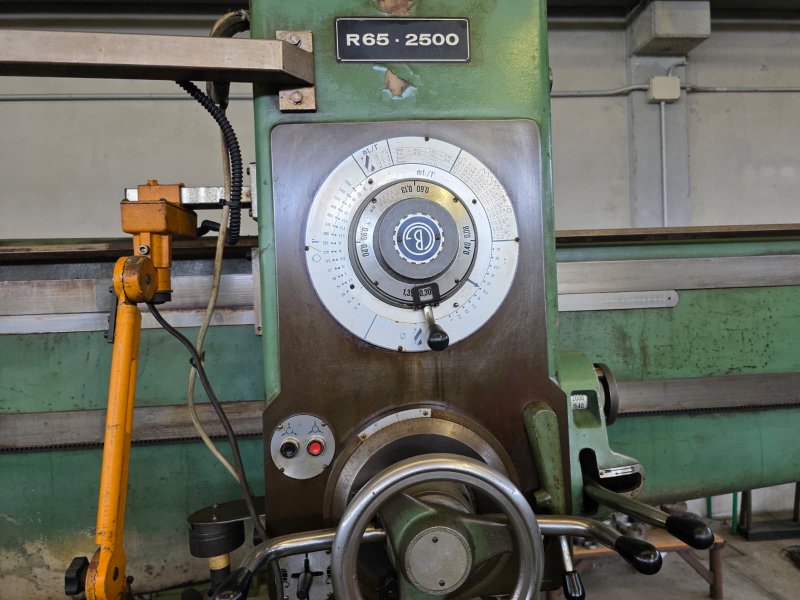

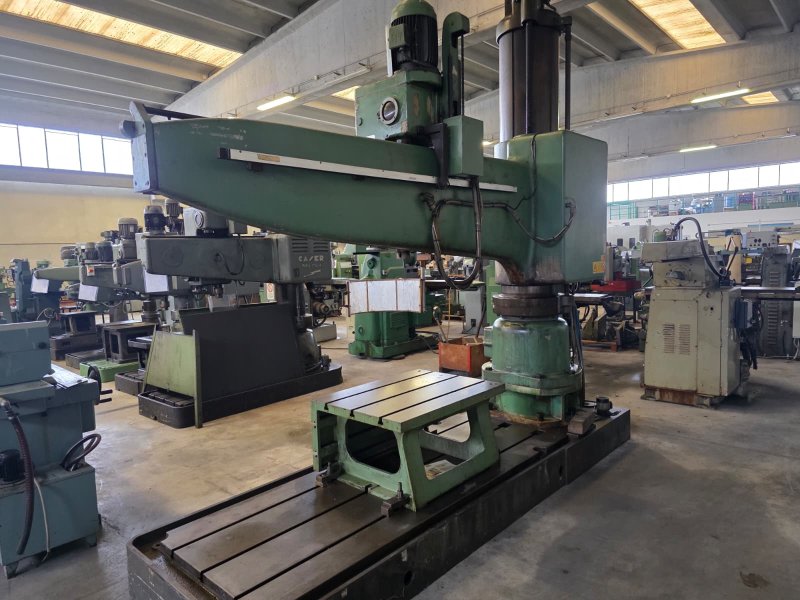

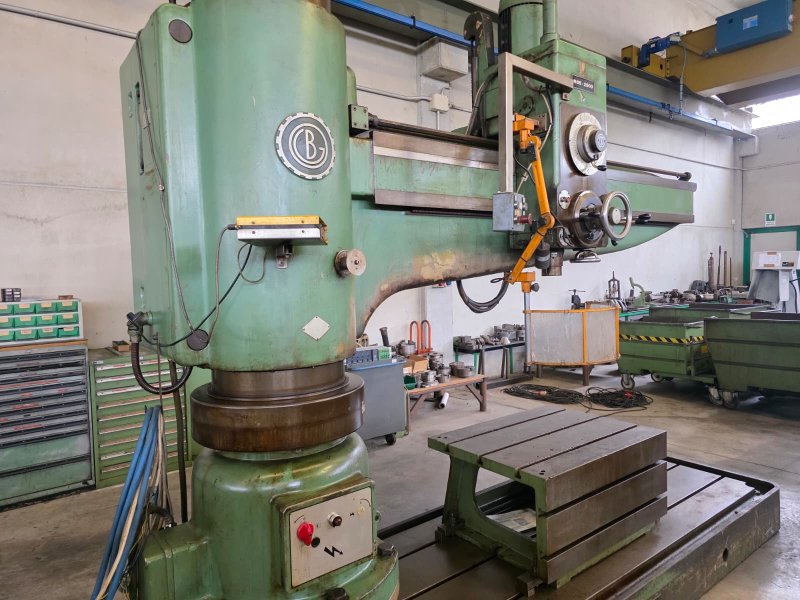

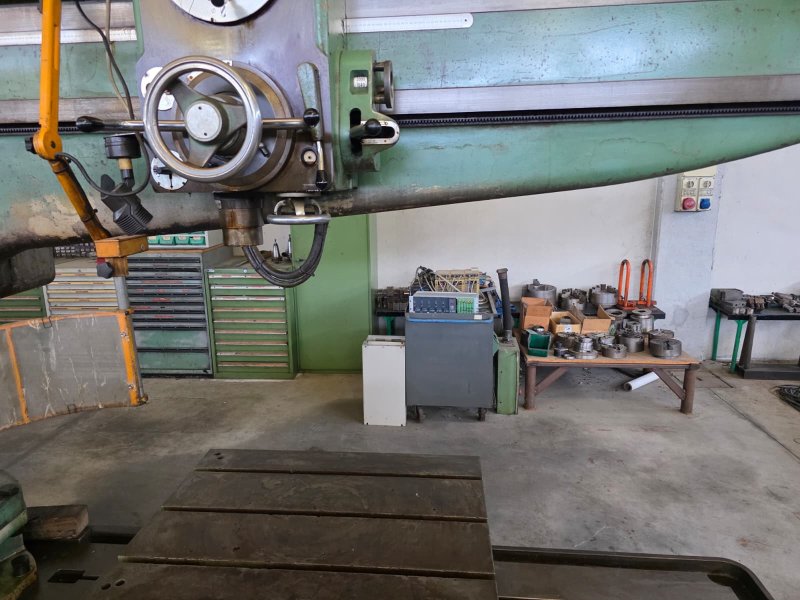

BREDA R 65-2500
- Condition: used
- published: 30/10/2026
- 26IND49918
Technical data
- Condition: used
- Year: undefined
Description
PERFORMANCE (maximum machining diameters) Steel Cast iron
Drilling capacity from solid 65 85 mm
Counterbore 110 140 mm
Metric thread 60 80 mm
SPINDLE DATA
Diameter 90 mm
Stroke 430 mm
Morse taper 5 m ...
PERFORMANCE (maximum machining diameters) Steel Cast iron
Drilling capacity from solid 65 85 mm
Counterbore 110 140 mm
Metric thread 60 80 mm
SPINDLE DATA
Diameter 90 mm
Stroke 430 mm
Morse taper 5 mm
Number of speeds 16
Rotation speed 32-2000 rpm
Number of feeds 8
Effective reach 2500 mm
Maximum drilling radius 2725 mm
Minimum drilling radius 570 mm
Head longitudinal movement 2155 mm
Maximum distance between spindle and base 1780 mm
Minimum distance between spindle and base 520 mm
Head height movement 830 mm
Column diameter 450 mm
BASE
Length 3600 mm
Width 1150 mm
Height 250 mm
Working surface 2680 x 1150 mm
MOTOR POWER
Spindle motor power 10 HP
Fence lifting motor power 4 HP
Machine weight 7200 kg
Electromechanical clamping
Quantity display for longitudinal head movement
Working
