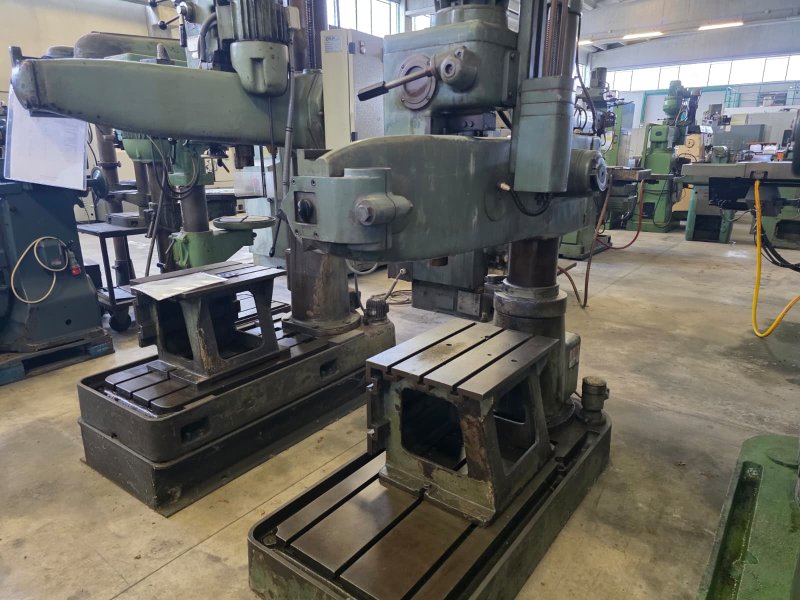

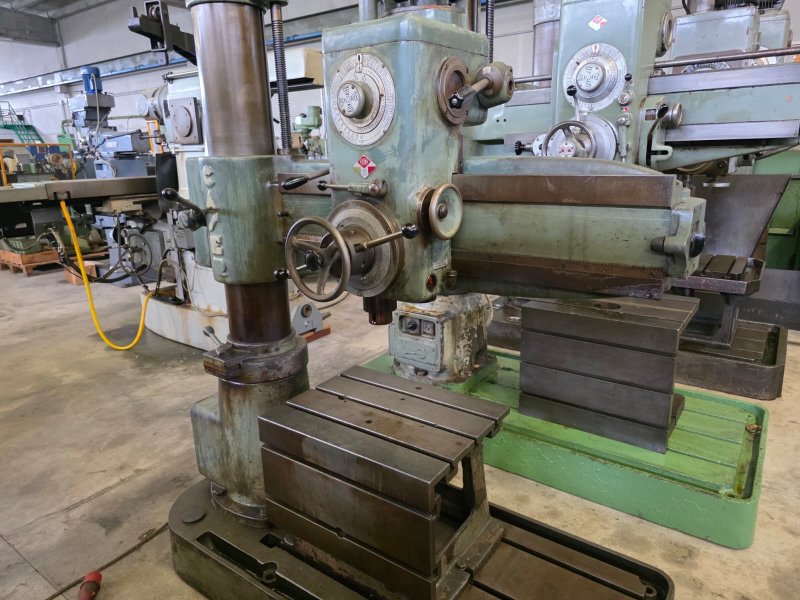

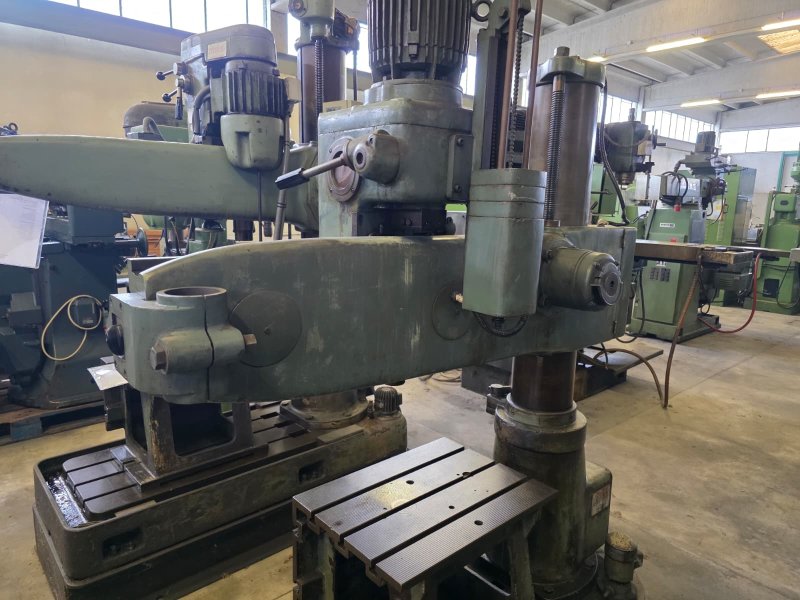

CASER F40 - 1000
- Condition: used
- published: 30/10/2026
- 26IND49920
Technical data
- Condition: used
- Year: undefined
Description
PERFORMANCE (maximum working diameter) Steel Cast iron
Drilling capacity from solid 40 50 mm
Counterbore 60 80 mm
Boring 80 100 mm
Cutting disc 165 mm
Metric thread 35 45 mm
SPINDLE DATA
Diame ...
PERFORMANCE (maximum working diameter) Steel Cast iron
Drilling capacity from solid 40 50 mm
Counterbore 60 80 mm
Boring 80 100 mm
Cutting disc 165 mm
Metric thread 35 45 mm
SPINDLE DATA
Diameter 65 mm
Stroke 270 mm
Morse taper 4 mm
Number of speeds 12
Rotation speed 37-1700 rpm
Number of feeds 4
Motor power 4 HP
MAIN DIMENSIONS
Effective reach 1000 mm
Maximum drilling radius 1150 mm
Min. drilling radius 450 mm
Longitudinal movement of the head 700 mm
Maximum distance between spindle and base mm 1270
Min. distance between spindle and base: 410 mm
Arm height adjustment: 630 mm
Column diameter: 300 mm
Useful base surface: 1000 x 850 mm
Base length: 1600 mm
Base width: 850 mm
Base height: 220 mm
Machine weight: 2000 kg
Mechanical locks
Working
