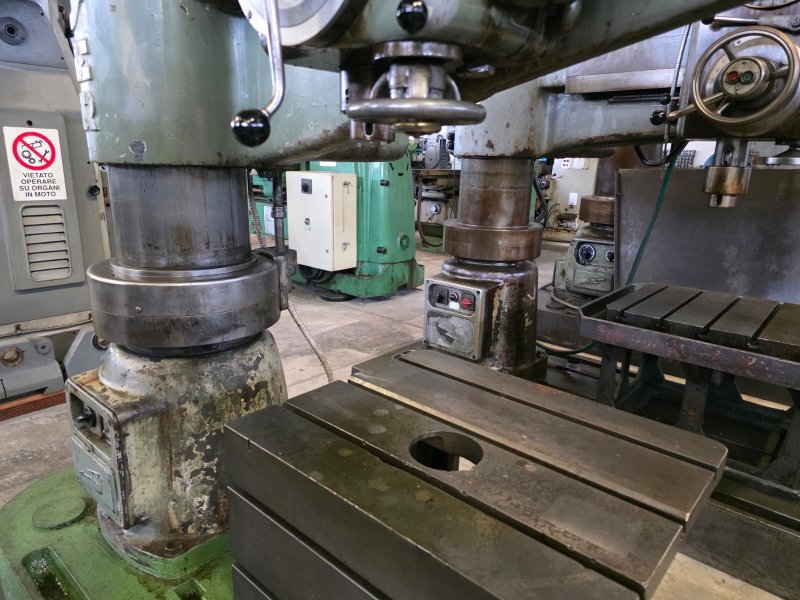

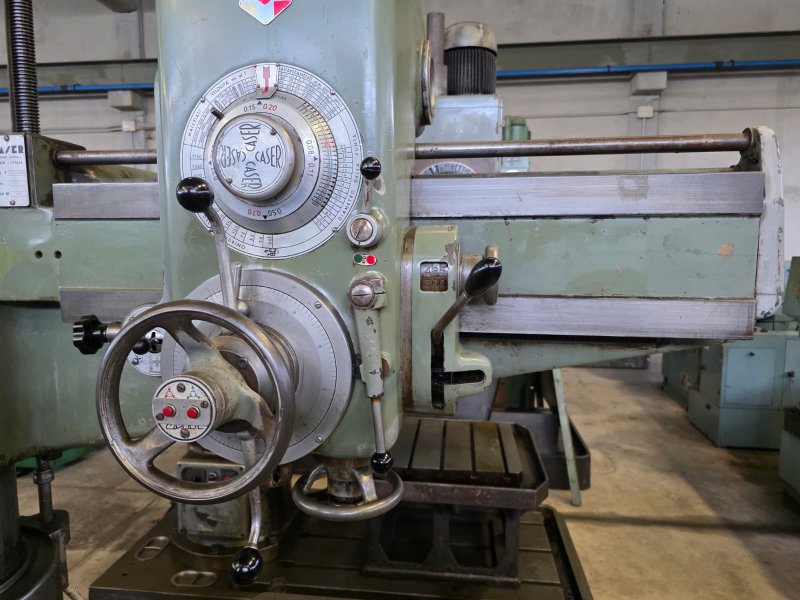

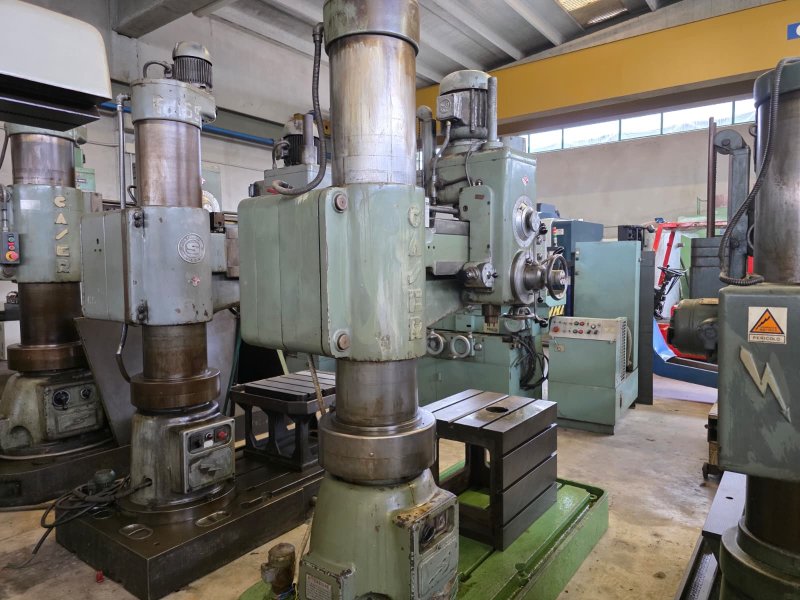

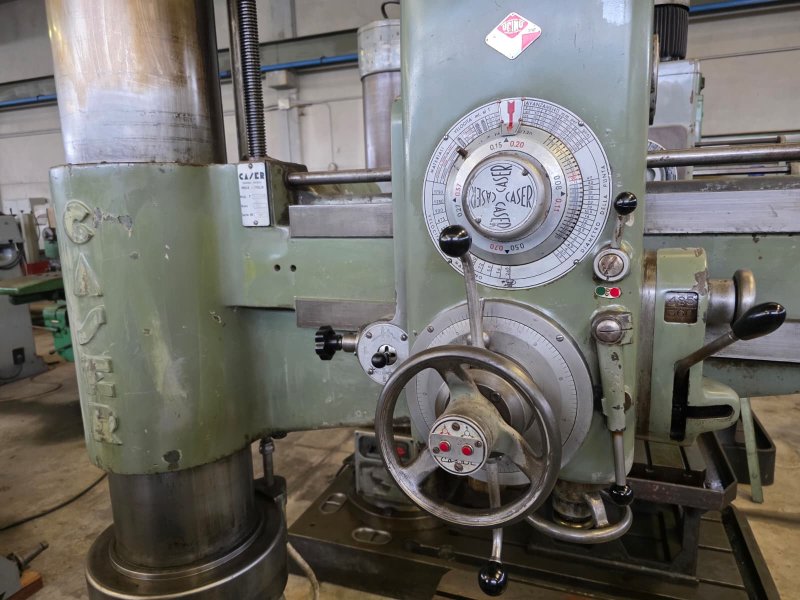

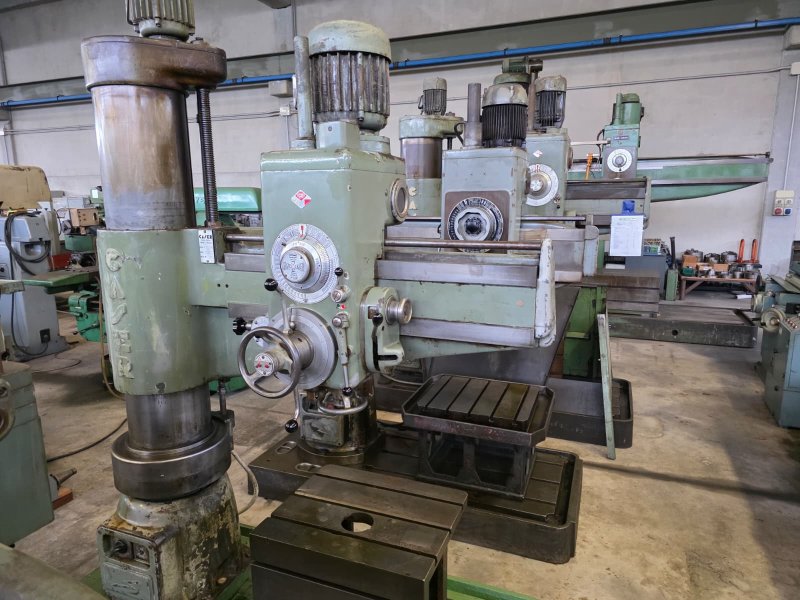

CASER F55-1250
- Condition: used
- published: 30/10/2026
- 26IND49921
Technical data
- Condition: used
- Year: undefined
Description
PERFORMANCE (maximum working diameters) Steel Cast iron
Drilling capacity from solid 50 60 mm
Counterbore 90 110 mm
Boring 120 145 mm
Cutting disc 190 mm
Metric thread 50 60 mm
Whitworth thread 2” 2 ...
PERFORMANCE (maximum working diameters) Steel Cast iron
Drilling capacity from solid 50 60 mm
Counterbore 90 110 mm
Boring 120 145 mm
Cutting disc 190 mm
Metric thread 50 60 mm
Whitworth thread 2” 2 ⅝”
SPINDLE DATA
Diameter 78 mm
Stroke 350 mm
Morse taper 5 cm
Number of speeds 12
Rotation speed 37-1700 rpm
Number of feeds 8
Motor power 6.5 HP
MAIN DIMENSIONS
Effective reach 1600 mm
Maximum drilling radius 1775 mm
Min. drilling radius 440 mm
Displacement Head length: 1335 mm
Maximum distance between spindle and base: 1353 mm
Min. distance between spindle and base: 353 mm
Arm height adjustment: 650 mm
Column diameter: 350 mm
Useful base surface: 1780 x 980 mm
Base length: 2530 mm
Base width: 980 mm
Base height: 240 mm
Machine weight: 4000 kg
Hydraulic locks
Working
