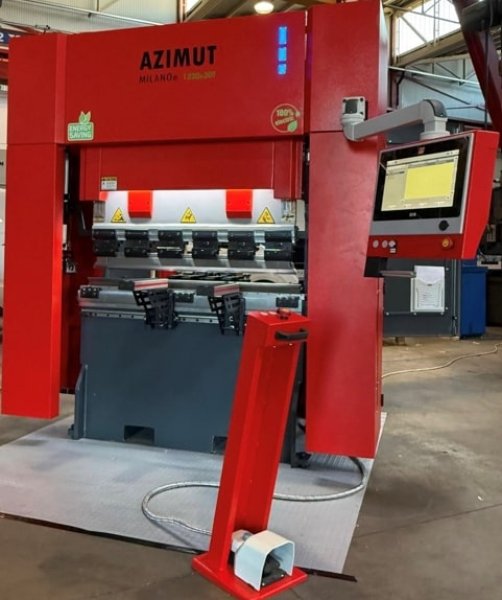

AZIMUT MILANOe 1220x20T 2025
- Condition: new
- published: 19/11/2025
- 25IND48147

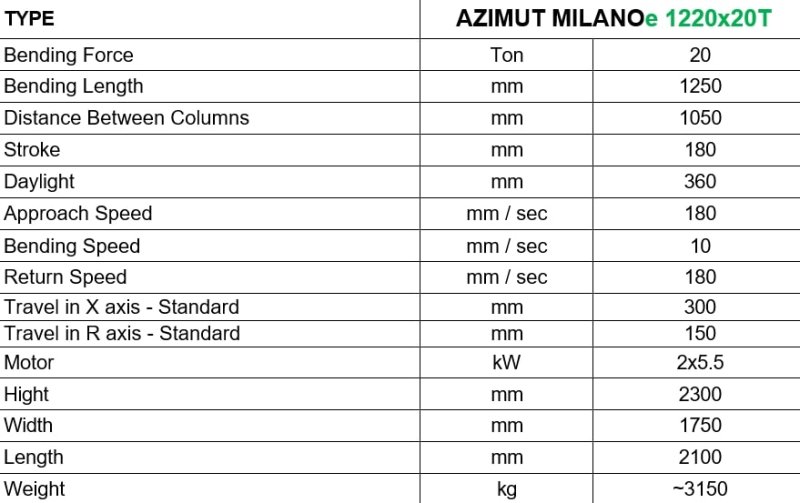

Technical data
- Condition: new
- Year: 2025
Description
READY FOR DELIVERY!!
CONFIGURATION
• Rigid frame designed on SolidWorks with stress and deflection analysis, welded by certified professionals, and machined to 0.01 mm precision in a single piece ...
READY FOR DELIVERY!!
CONFIGURATION
• Rigid frame designed on SolidWorks with stress and deflection analysis, welded by certified professionals, and machined to 0.01 mm precision in a single piece
• STEP RK15 software, ready for Industry 4.0
• Siemens electrical system
• Cybelec servo motors for Y1-Y2 axes
• 2-axis backgauge (X, R), which slides on ball screws with Cybelec servo motors to easily measure complex parts.
• Automatic CNC-controlled table crowning for uniform angles along the entire length of the bend.
• Front support arms.
• MCS+DSP system safety photocells.
• Quick-release punch attachment, prism holder channel L=60mm, P.97.A75R08 punches, 4-slot prism M.460R415.
• 4.0 READY.
For more information, call or write to: +39 335 829 6772
Working
CE compliant
