MECOS SYNCRO 135/3000 2008
- Condition: used
- published: 26/06/2026
- 26IND49313
Technical data
- Condition: used
- Year: 2008
Description

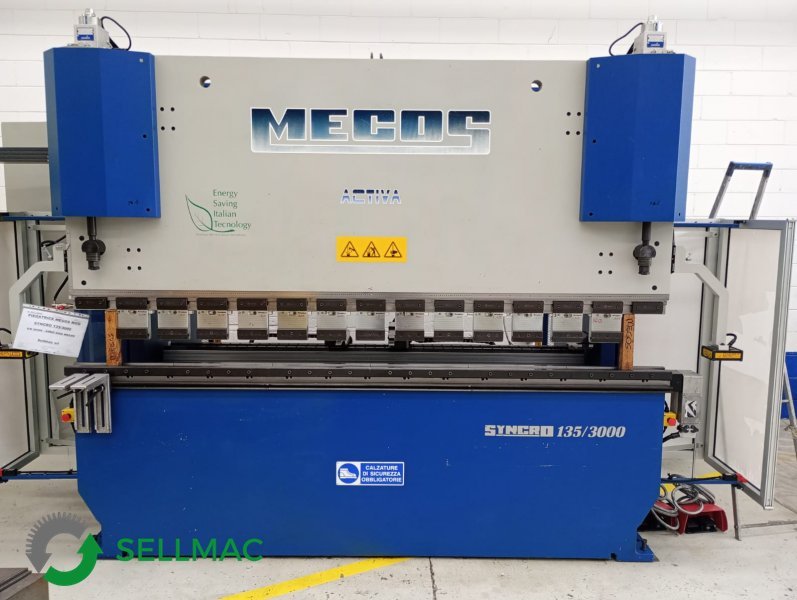

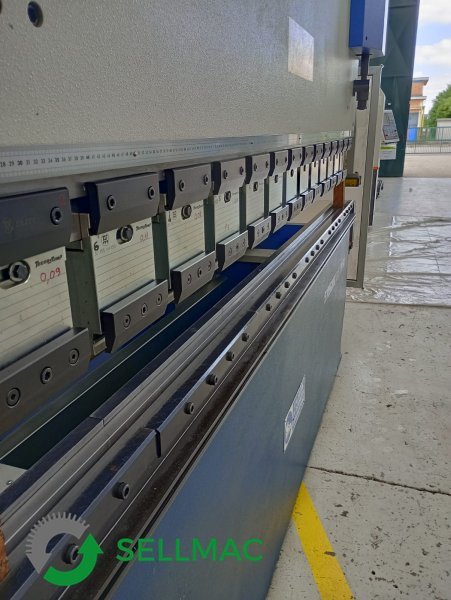

MECOS 7-AXIS PRESS BRAKE
Model: SYNCRO 135/3000
Year: 2008
Weight: 13,000 kg
Dimensions: 4820 x 2500 mm, H: 2850 mm

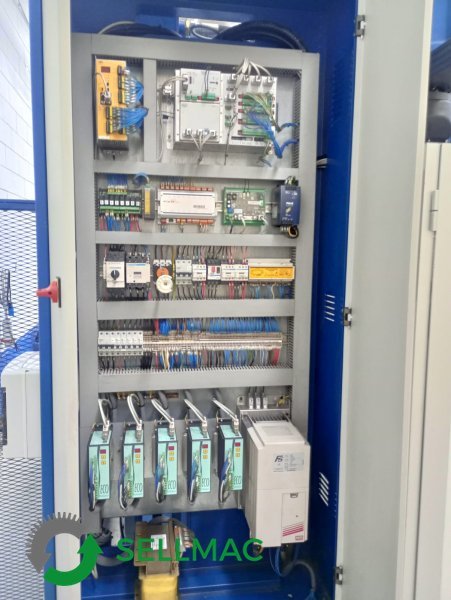

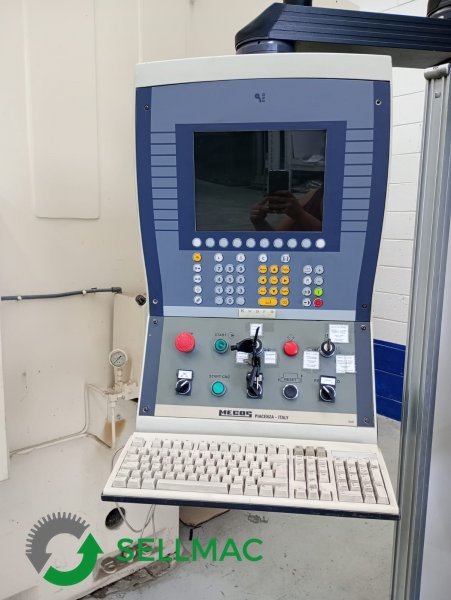

ESA CNC
FEATURES
Type of press brake: 7-axis hydraulic synchronous
Maximum force: ...
MECOS 7-AXIS PRESS BRAKE
Model: SYNCRO 135/3000
Year: 2008
Weight: 13,000 kg
Dimensions: 4820 x 2500 mm, H: 2850 mm
ESA CNC
FEATURES
Type of press brake: 7-axis hydraulic synchronous
Maximum force: 135 tons
Maximum clearance between crossbeams: 450 mm
Maximum stroke: 200 mm
Approach speed: 200 mm/s
Working speed: 0-10 mm/s
Ascent speed: 130 mm/s
Stopping distance: 11 mm
Safety distance between laser and punch: 16 mm
Volts: 400
Power supply: 50 Hz
Phases: 3
Motor power: kW 15
Tank capacity: 200 l
Maximum hydraulic circuit pressure: 310 bar
Lifting cable length: 2 m
Noise at operator's station: Leq: 64 dB(A)
Machine comes complete with user manual and a copy of the CE Declaration of Conformity.
All technical data shown is indicative and subject to change without notice; therefore, it should not be considered binding.
Working
CE compliant
