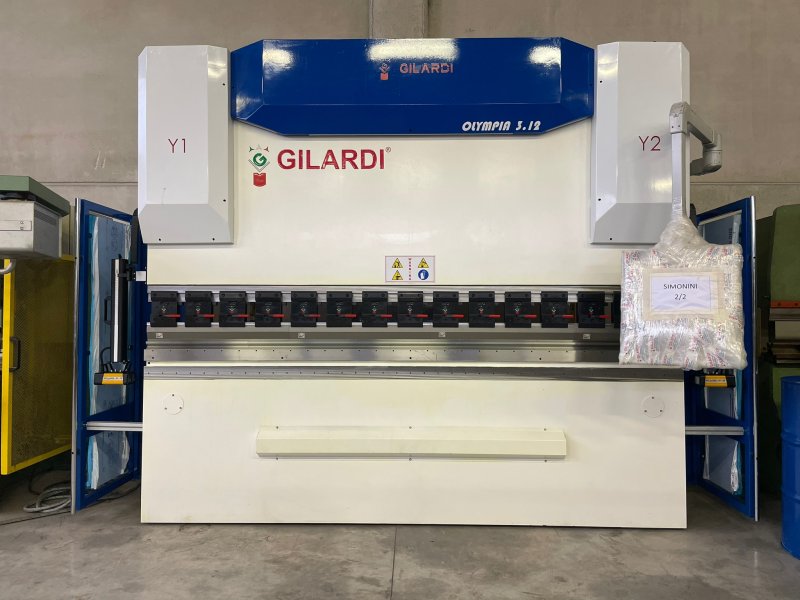

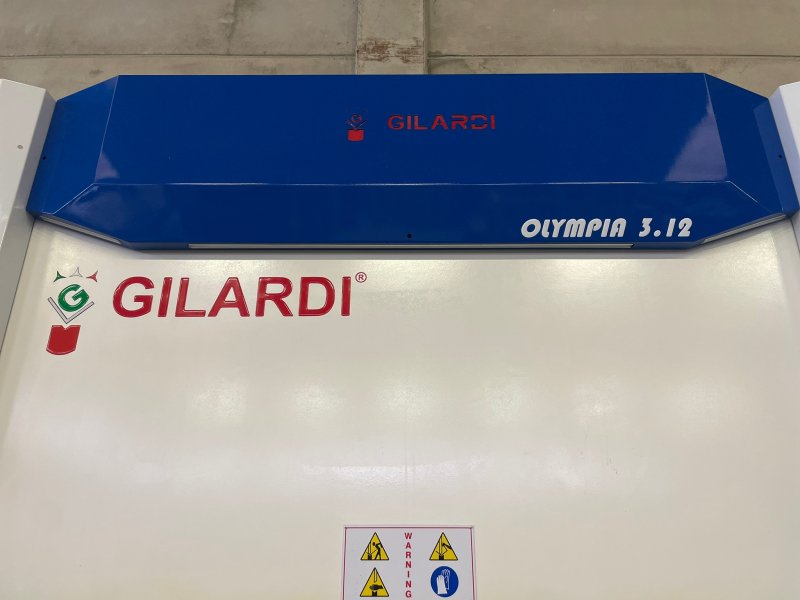

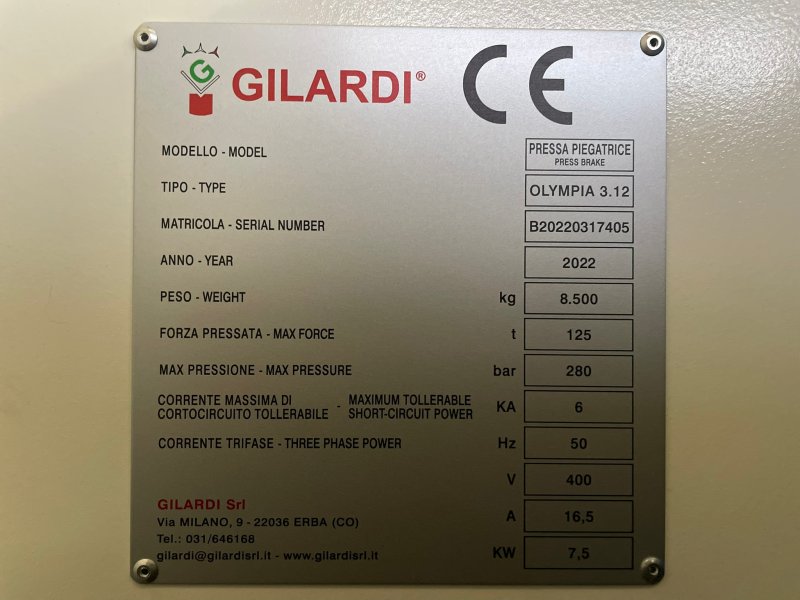

GILARDI OLYMPIA 3.12 2022
- Condition: new
- published: 30/10/2026
- 26IND49842
Technical data
- Condition: new
- Year: 2022
Description
Synchronized press brake with 6 axes (y1, y2, x, r, Z1, Z2)
Esautomotion S640N TOUCH SCREEN control

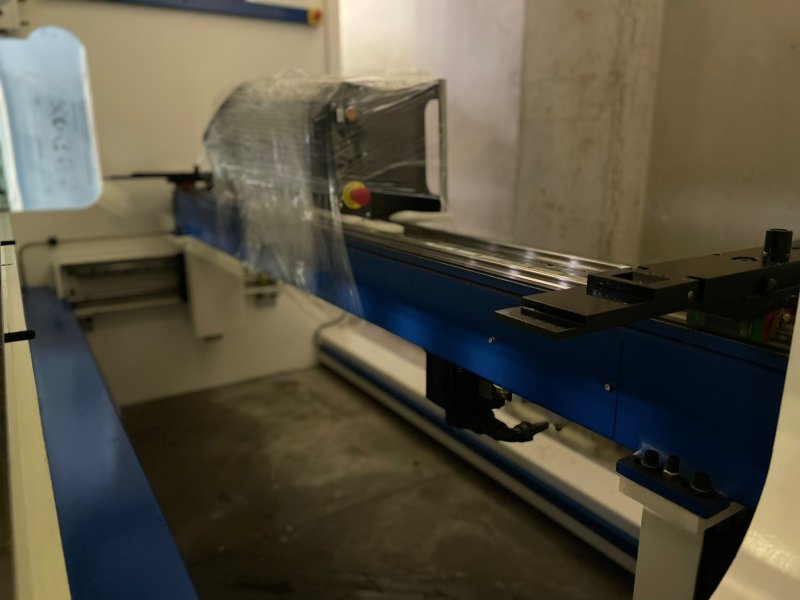

X-axis travel 600 mm by CNC
R-axis travel 200 mm by CNC
Z1 and Z2 axes controlled by CNC
Hydraulic c ...
Synchronized press brake with 6 axes (y1, y2, x, r, Z1, Z2)
Esautomotion S640N TOUCH SCREEN control
X-axis travel 600 mm by CNC
R-axis travel 200 mm by CNC
Z1 and Z2 axes controlled by CNC
Hydraulic crowning controlled by CNC

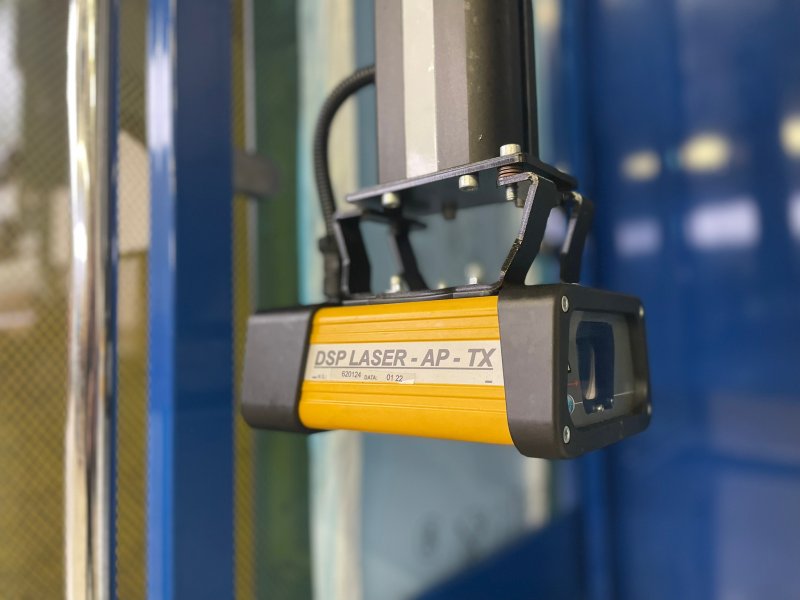

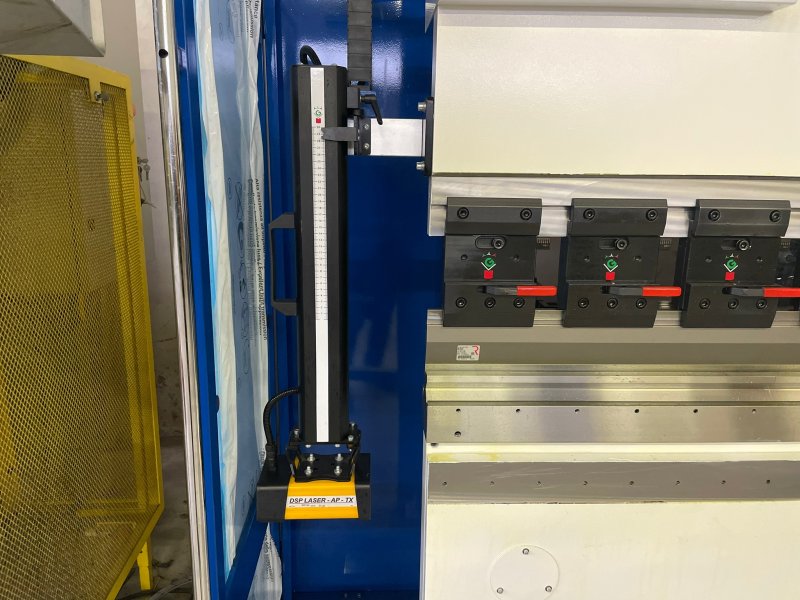

DSP LASER photocells controlled by MCS

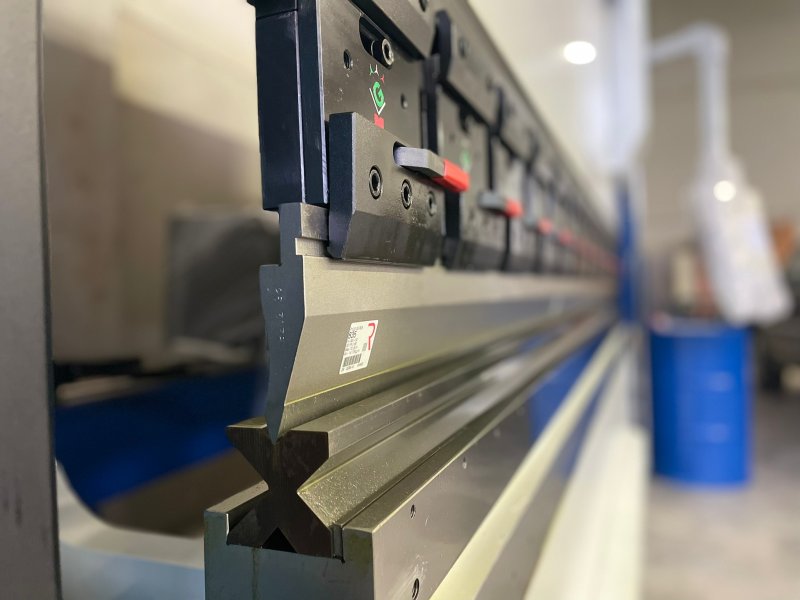

Intermediate tools H=150

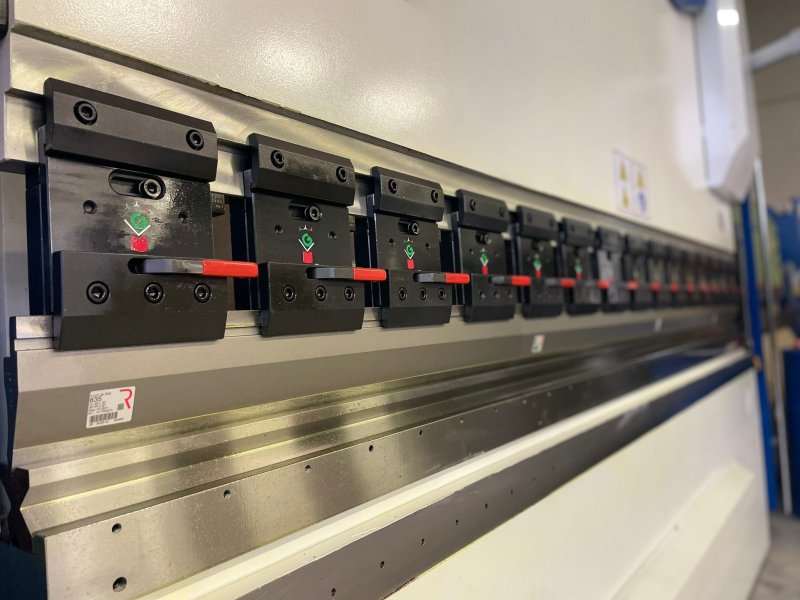

Upper tool
Lower tool
Side gates
4.0 setup
Rear photocells
Working force 125 tons
Useful length 3100 mm
Clearance between uprights 2700 mm
Gasket 320 mm
Stroke 210 mm
Distance between table and ram 480 mm
Fast descent 200 mm/s
Working speed 10 mm/s
Return speed 160 mm/s
Motor power 7.5 kW
Dimensions 4000 x 1300 x 2500 mm
Machine weight 8200 kg
Working
Under warranty
CE compliant
