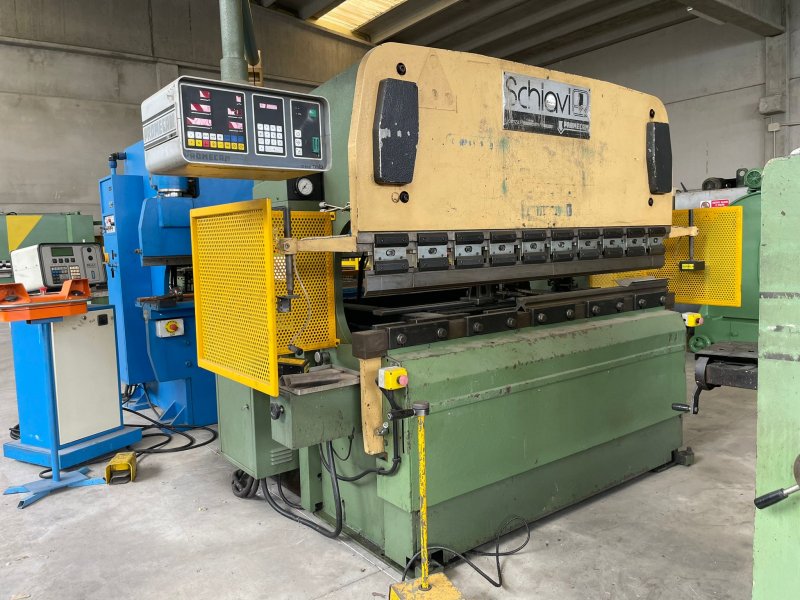

PROMECAM SCHIAVI RG102
- Condition: used
- published: 30/10/2026
- 26IND49845
Technical data
- Condition: used
- Year: undefined
Description
Force 100 tons
Table length 2100 mm
Maximum bending length 2085 mm
Cut depth 400 mm
Maximum stroke 100 mm
Maximum clearance between tables 300 mm
Approach speed 38 mm/sec
Working speed 9 mm/sec
Return ...
Force 100 tons
Table length 2100 mm
Maximum bending length 2085 mm
Cut depth 400 mm
Maximum stroke 100 mm
Maximum clearance between tables 300 mm
Approach speed 38 mm/sec
Working speed 9 mm/sec
Return speed 60 mm/sec
Maximum pressure 368 bars
Motor power 10 HP
Overall dimensions 2130 x 1650 x 2005 mm
Approximate weight 4300 kg

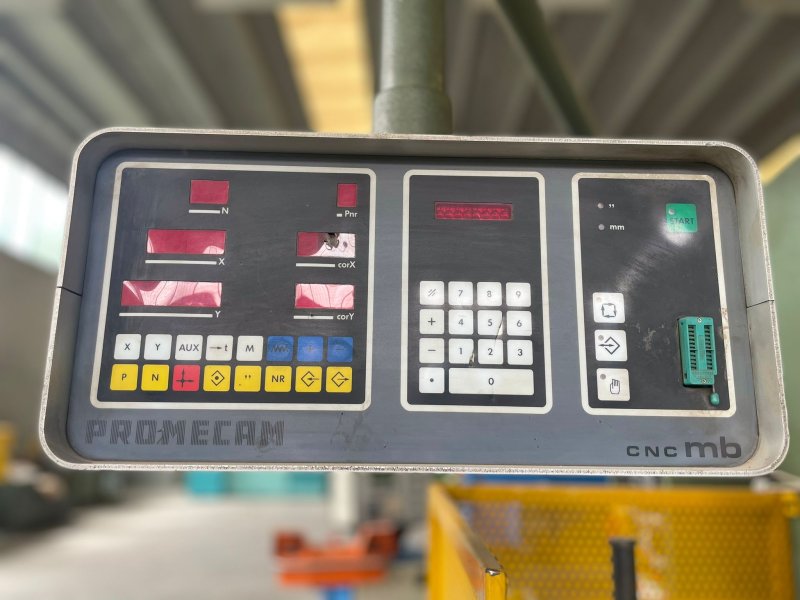

2-axis control MB
Working
